LR 121 (954140001-B) - Husqvarna Lawn Tractor (1997-01) HOOD Parts Diagram

Lawn Tractor

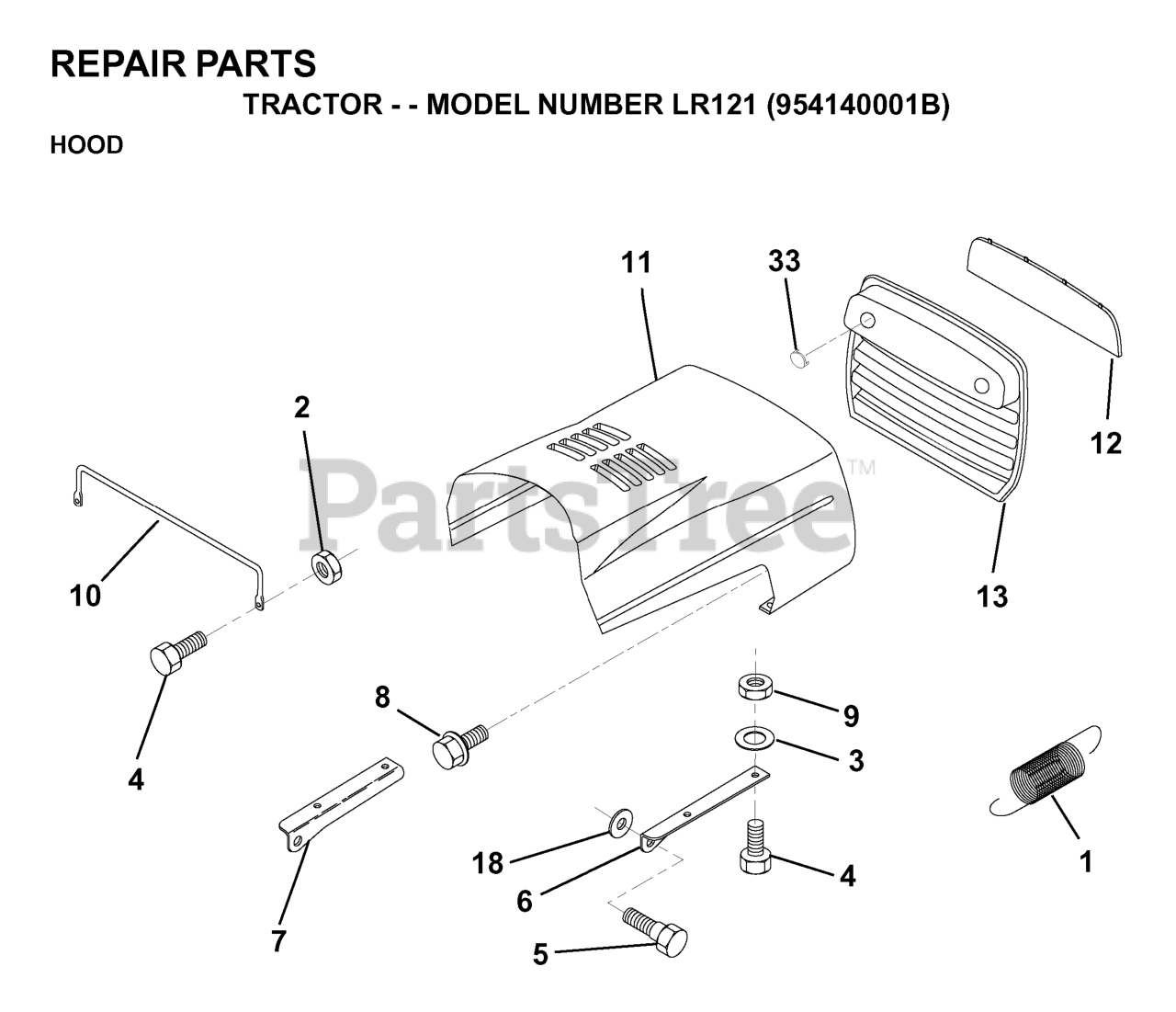

HOOD Parts Diagram

  • Title

9

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532122035

LENS

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532124657

EXT SPRING

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 817521312

Screw, SLTD Hex Hd. W/Pl Washer

$

$

Not available

6

Husqvarna 532122549

BRKT HOOD RH

$

$

Not available

33

Husqvarna 532131319

CVR LIGHT SOCKET

$

$

Not available

10

Husqvarna 532123693

BRACE,HOOD

$

$

Not available

11

Husqvarna 532140463

HOOD
(Superseded to 532132918)

$

$

Not available

5

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$6.49

$

In Stock, Qty 9

0

13

Husqvarna 532142325

GRILL YP W/HL

$

$

Not available

7

Husqvarna 532122548

BRKT HOOD LH

$2.99

$

Usually ships in 3-10 days

0
