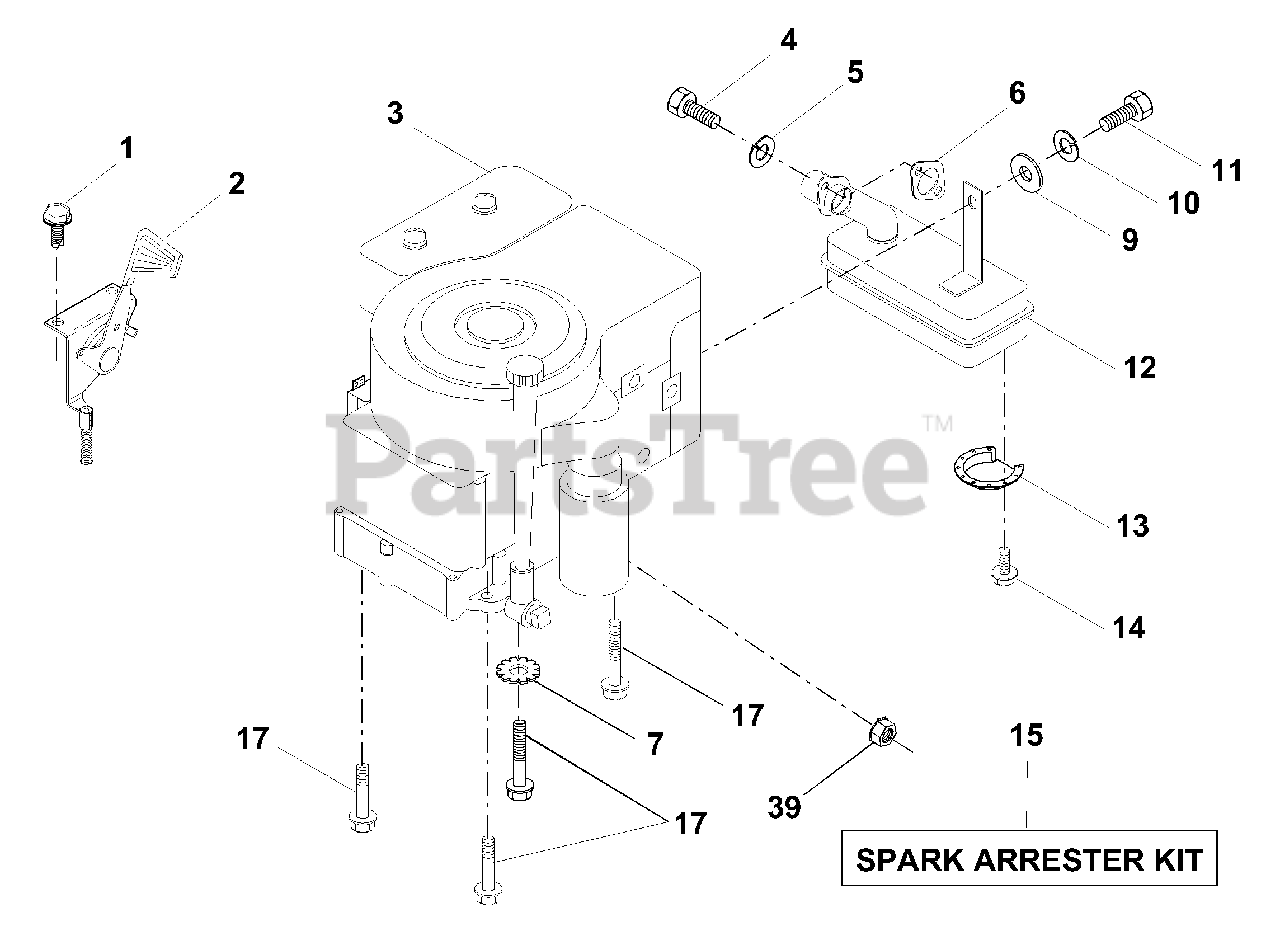

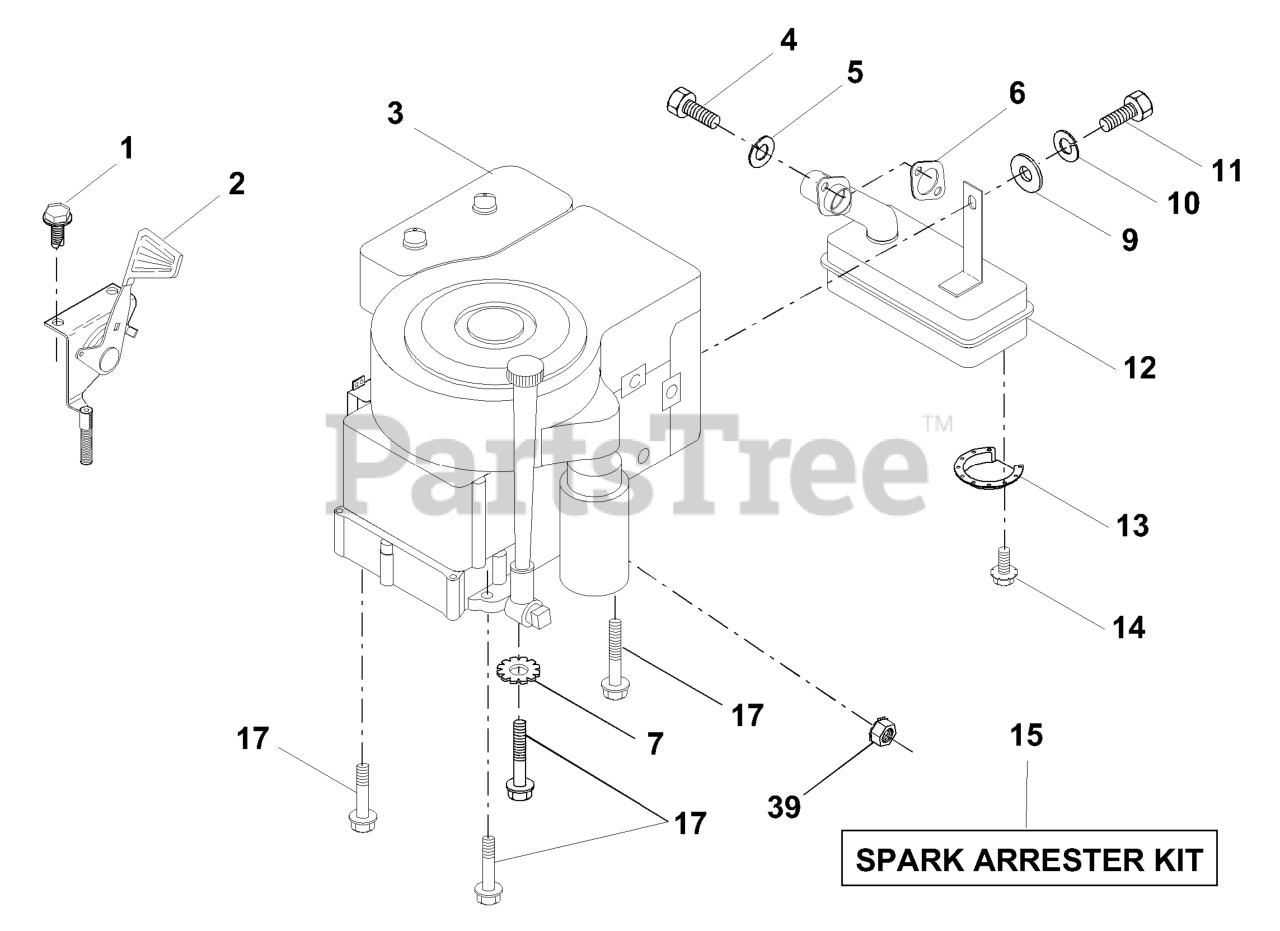

LR 122 (954140105-B) - Husqvarna Lawn Tractor (2000-01) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Husqvarna 817720410

Screw, Hex Thd. Cut 1/4-20 x 5/8
(Superseded to 874780410)

$

$

Not available

2

Husqvarna 532132752

Control, Throttle

$

$

Not available

3

Engine, Briggs Model 289707

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Husqvarna 871070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

Washer, Lock Hvy Hcl Spring 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 4 left!

0

6

Husqvarna 532165291

Gasket, Exhaust
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 819101216

Washer 5/16 x 3/4 x 16
(Superseded to 734115441)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 810040400

Washer, Lock Hvy Hlcl Spring 1/4
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

11

Bolt, Hex Fin.

Note: (Order From Eng. Mfg.)

$

$

Not available

12

Husqvarna 532137437

Muffler

$

$

Not available

13

Husqvarna 532101326

Deflector, Muffler

$

$

Not available

14

Husqvarna 817030808

Screw, Spiderlock, Hex Hd 8 x 1/2
(Superseded to 817030814)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional equipment)

$193.99

$

In Stock, only 1 left!

0

17

Husqvarna 817490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

39

Husqvarna 532128861

Nut, Flange 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0
