LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Brake/Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

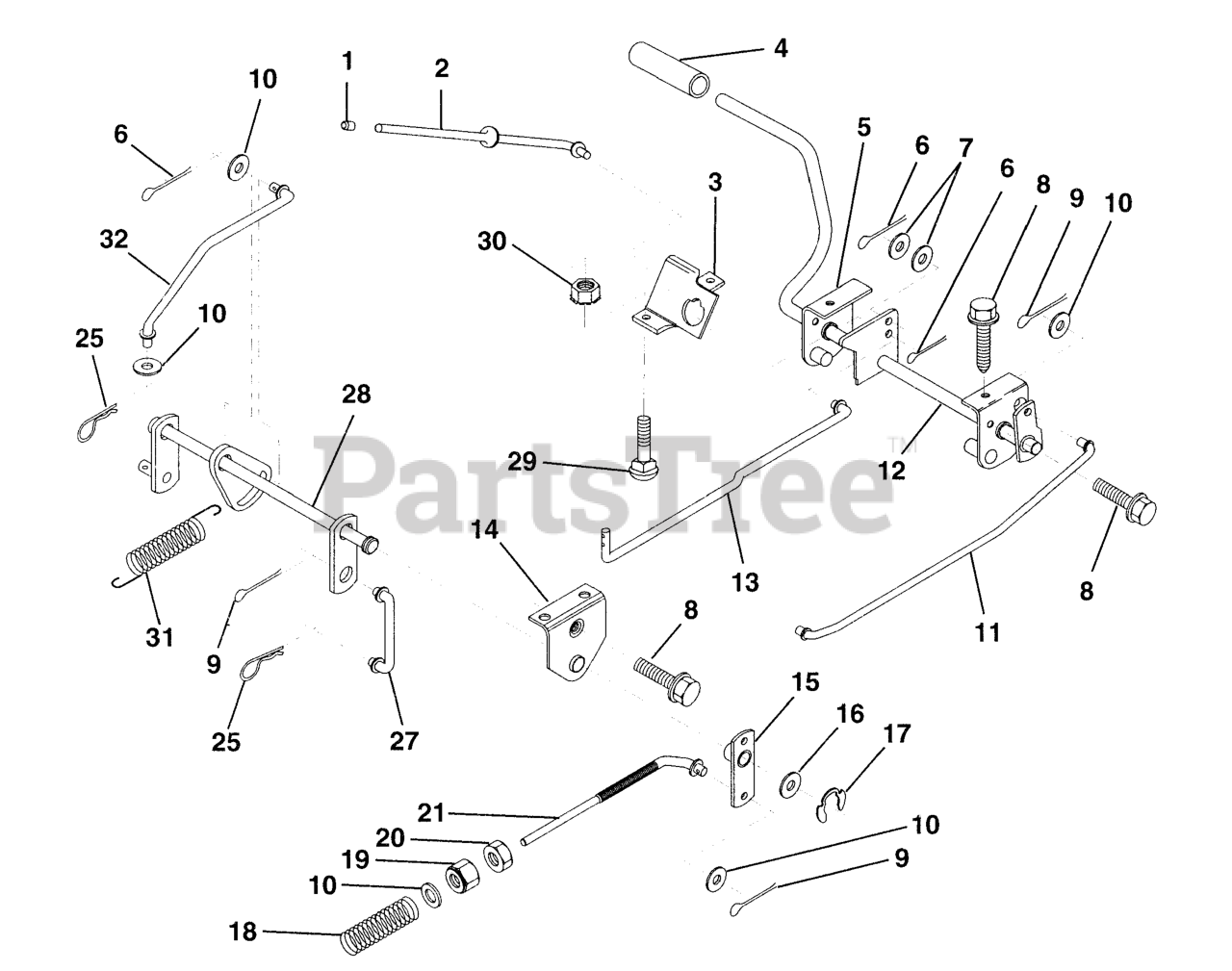

Brake/Rear Mower Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 532123436

ROD,PARK BRAKE

$

$

Not available

3

Husqvarna 532123437

BRKT,PARK BRAKE

$

$

Not available

4

Husqvarna 532008156

FOOT PEDAL COVER

$

$

Not available

5

Husqvarna 532132205

BRACKET CLUTCH PDL

$

$

Not available

6

Husqvarna 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna 817490508

Screw, Hex Head, Thd., Roll. 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

9

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123543

ROD,FRT BRAKE

$

$

Not available

12

Husqvarna 532136263

CLUTCH ASSY

$

$

Not available

13

Husqvarna 532123394

ROD,CLUTCH

$

$

Not available

14

Husqvarna 532121978

BRKT,LIFT SHAFT

$

$

Not available

15

Husqvarna 532123641

BRAKE PIVOT ARM

$

$

Not available

16

Husqvarna 819251816

WASHER T

$

$

Not available

17

Husqvarna 812000034

Ring, Klip

$

$

Not available

18

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 19

0

19

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 532131460

ROD REAR BRAKE
(Superseded to 532131461)

$

$

Not available

22

Husqvarna 532127378

TRUNION LIFT
(Superseded to 532144585)

$

$

Not available

23

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

27

Husqvarna 532136780

LINK LIFT REAR

$

$

Not available

28

Husqvarna 532136779

REPL BY 532 14 07-77
(Superseded to 532140777)

$

$

Not available

29

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, Qty 6

0

30

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

31

Husqvarna 532133095

COUNTER SPRING

$

$

Not available

32

Husqvarna 532133721

LIFT LEVER LINK

$

$

Not available
