LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Fender/Chassis/Hood Parts Diagram

Lawn Tractor

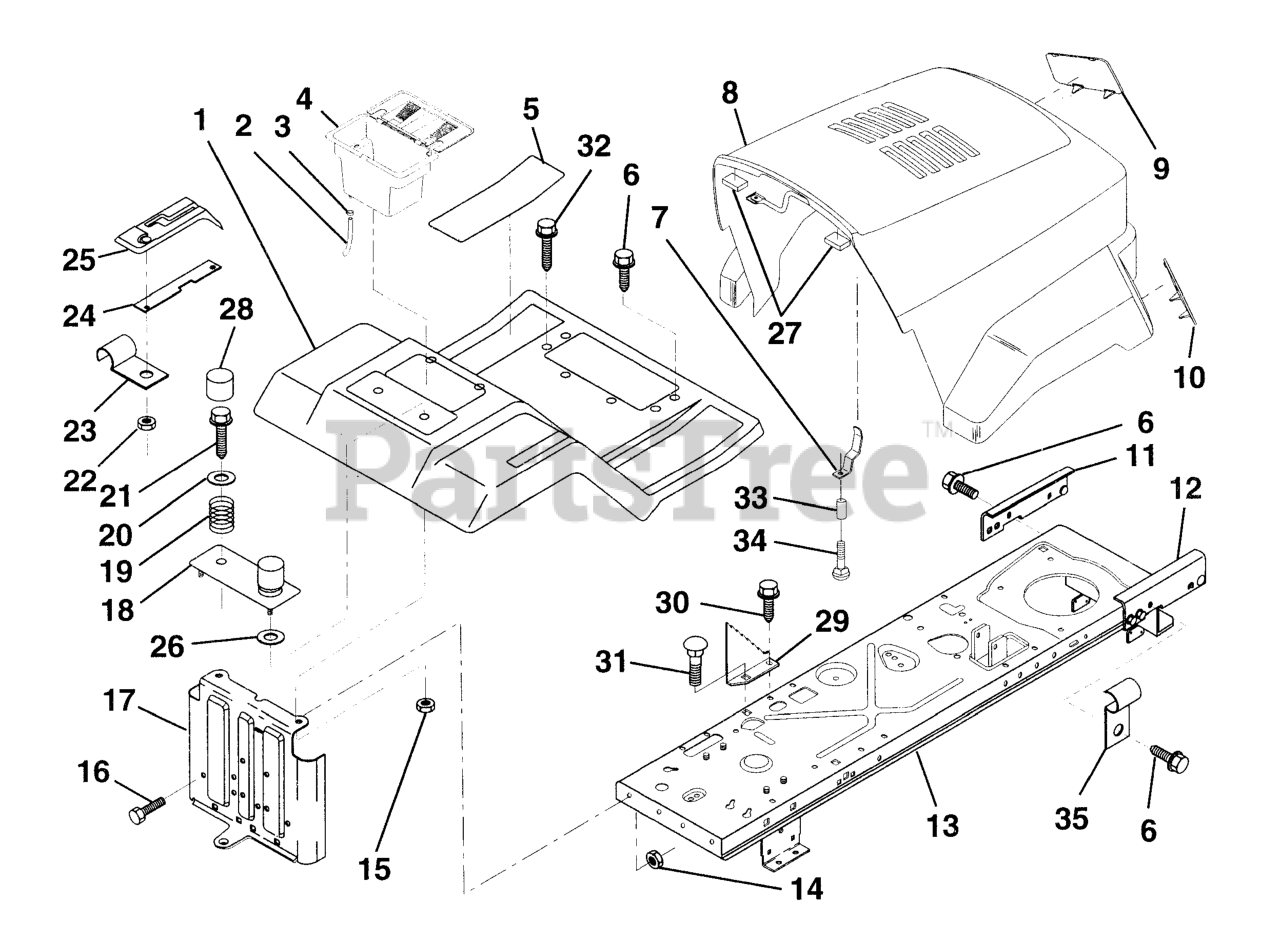

Fender/Chassis/Hood Parts Diagram

  • Title

1

Husqvarna 532125434

FENDER/FOOTREST
(Superseded to 532140956)

$

$

Not available

2

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

3

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

4

Husqvarna 532129965

CASE BATTERY
(Superseded to 532404349)

$

$

Not available

5

Husqvarna 532126700

FOOTREST PAD

$

$

Not available

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532131318

LATCH HOOD
(Superseded to 532139969)

$

$

Not available

8

Husqvarna 532138739

HOOD & GRILL ASM
(Superseded to 532140354)

Note: (Includes Key Numbers 9 and 10)

$

$

Not available

9

Husqvarna 532130986

LENS.LR.LH.HUSQV.

$

$

Not available

10

Husqvarna 532130985

LENS RH

$

$

Not available

11

Husqvarna 532128449

BRK PVT FRAME LH

$

$

Not available

12

Husqvarna 532128808

BRK PVT FRAME RH

$

$

Not available

13

Husqvarna 532137097

ASSEMBLY FRAME
(Superseded to 532139893)

$

$

Not available

14

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

15

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 87460512

Bolt, Hex Head 5/16-18 UNC x 3/4

$

$

Currently unavailable

17

Husqvarna 532127880

DRAW BAR

$

$

Not available

18

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

19

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

22

Husqvarna 532124316

Nut, Self-Threading, Washer Head 3/16

$

$

Currently unavailable

23

Husqvarna 532126470

CLIP,INSULATOR

$

$

Not available

24

Husqvarna 532124307

BAR SHIFT LOCK

$

$

Not available

25

Husqvarna 532126995

CONSOLE,SHT CONTR

$

$

Not available

26

Husqvarna 819091413

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

27

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

28

Husqvarna 532124233

Cap, Seat Spring

$

$

Currently unavailable

29

Husqvarna 532132562

BRACKET

$

$

Not available

30

Husqvarna 817490508

Screw, Thd., Roll. 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

31

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, Qty 5

0

32

Husqvarna 817490516

SCREW
(Superseded to 539113226)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532138748

SPACER
(Superseded to 532147031)

$

$

Not available

34

Husqvarna 872110412

Bolt, Carriage 1/4-20 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available
