LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Ground Drive Parts Diagram

Lawn Tractor

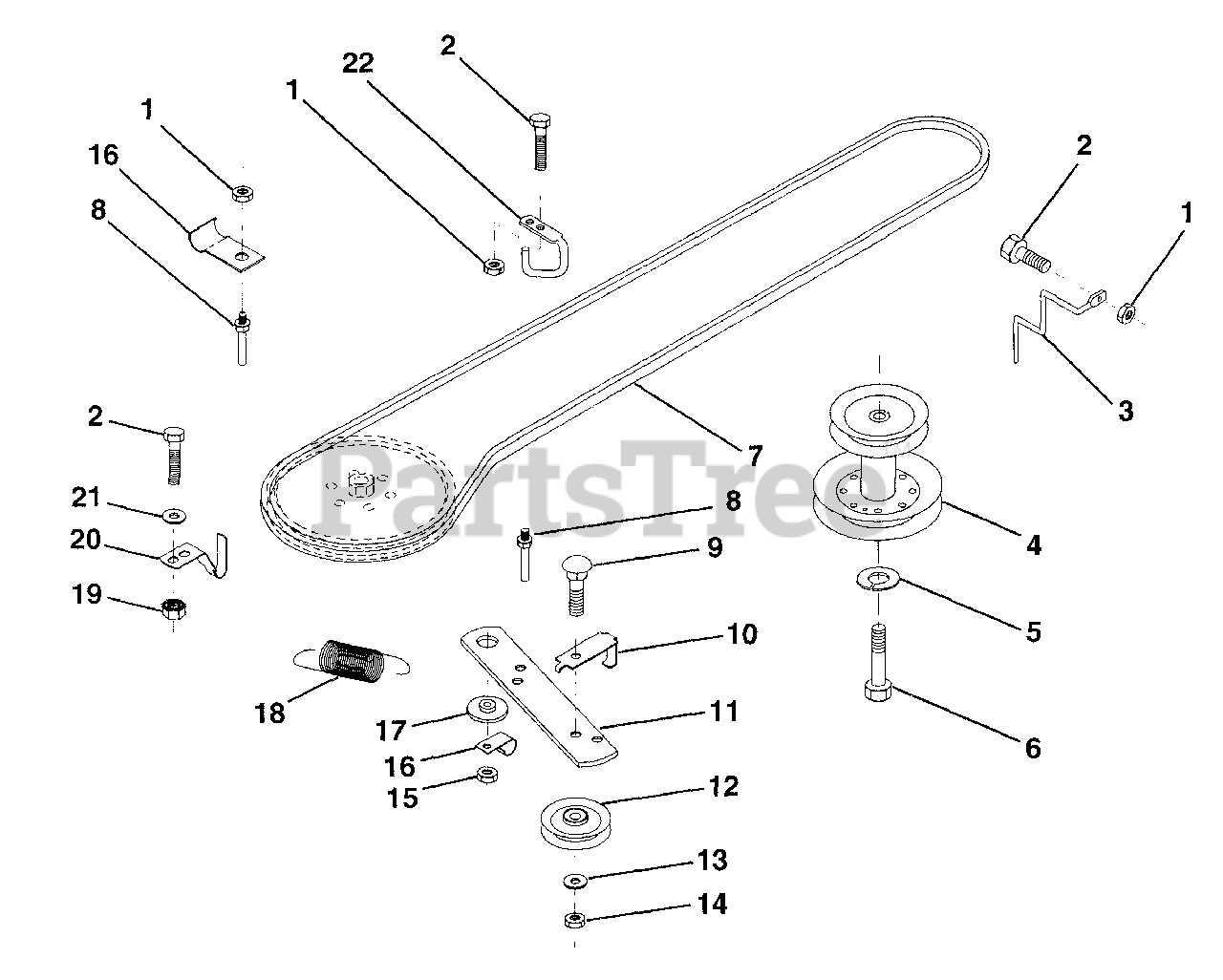

Ground Drive Parts Diagram

  • Title

1

Husqvarna 873680500

Nut, Hex, Crownlock 5/16-18
(Superseded to 873690500)

$

$

Not available

2

Husqvarna 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532132946

Keeper, Mower Drive Belt, R.H.

$

$

Not available

4

Husqvarna 532135036

Pulley, Engine
(Superseded to 532138029)

$

$

Not available

5

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

6

Husqvarna 532138887

Bolt, Hex Head M10 x 1.5 x.75mm

$

$

Not available

7

Husqvarna 532126520

V-Belt, Ground Drive
(Superseded to 532419271)

$56.99

$

In Stock, only 2 left!

0

8

Husqvarna 532123405

Keeper, Ground Drive Belt
(Superseded to 532156109)

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$

$

Not available

10

Husqvarna 532123396

Keeper, Ground Drive Belt, Idler

$

$

Not available

11

Husqvarna 532123395

Clutch Arm, Ground Drive
(Superseded to 532140911)

$

$

Not available

12

Husqvarna 532004859

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 2 left!

0

13

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$

$

Not available

15

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$

$

Not available

16

Husqvarna 532126471

Clip, Insulated

$

$

Not available

17

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532131459

Spring Extension

$

$

Not available

19

Husqvarna 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 873800500)

$

$

Not available

20

Husqvarna 532123891

Keeper, T/A Ground Drive Belt

$

$

Not available

21

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

22

Husqvarna 532123404

Keeper, Frame Ground Drive Belt

$

$

Not available
