LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Transaxle Parts Diagram

Lawn Tractor

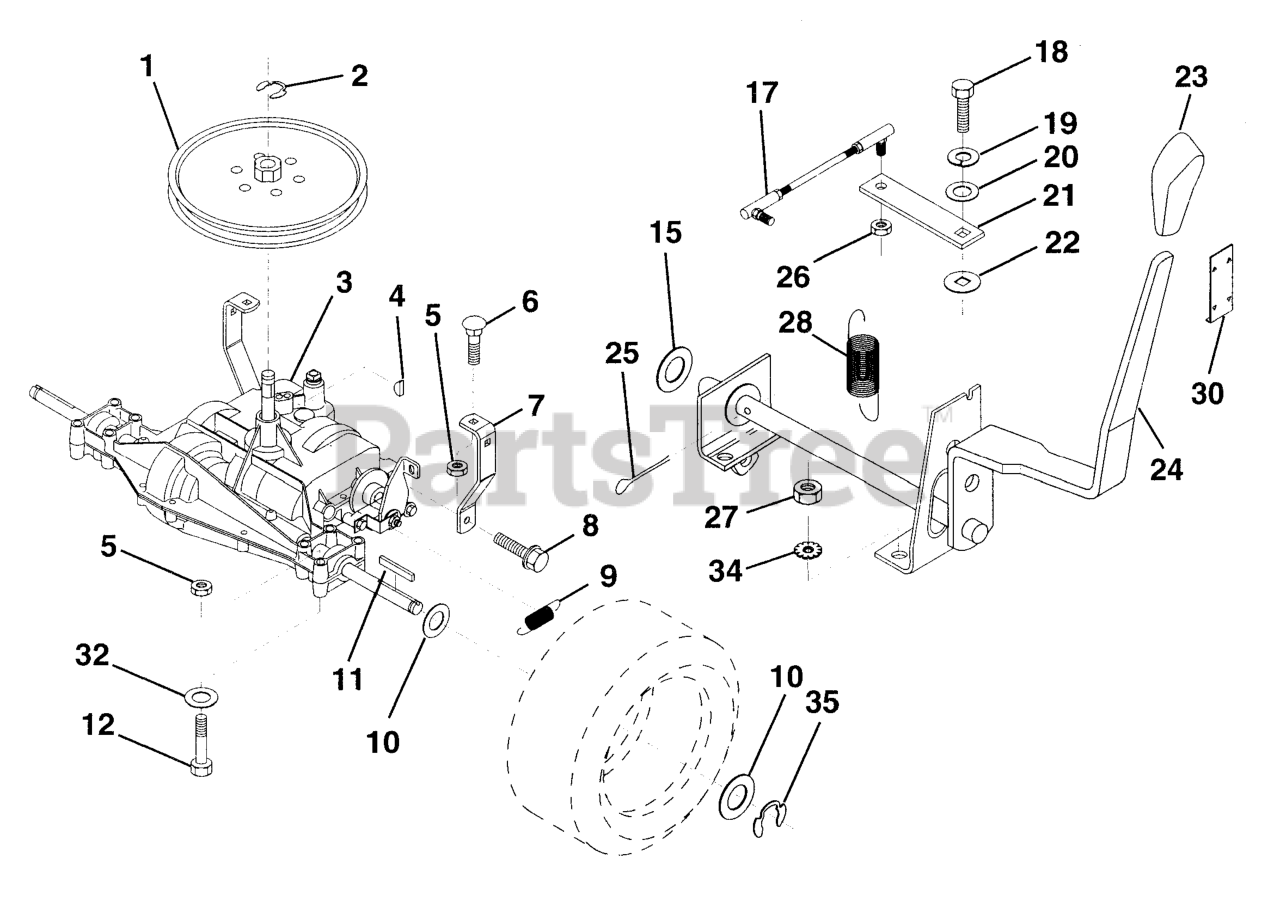

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

PULLEY

$68.99

$

In Stock, only 2 left!

0

2

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 2 left!

0

3

Transaxle, Peerless, 6 Speed,

Note: Model Number 930-028

$

$

Not available

4

Husqvarna 532125096

KEY STD (1373) DANA

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

6

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

STRAP,TORQUE

$

$

Not available

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

10

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 874760540

Bolt, Hex, Fin. 5/16-18 x 2-1/2

$

$

Not available

15

Husqvarna 819171616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

17

Husqvarna 532126293

JOINT

$

$

Not available

18

Husqvarna 871040412

BOLT LT
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532126292

ARM

$

$

Not available

22

Husqvarna 532105701

WASH-SHFT PLT LT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532122011

KNOB,SHT CONTROL

$

$

Not available

24

Husqvarna 532128202

HANDLE ASSY SHIFT

$

$

Not available

25

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

27

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

28

Husqvarna 32128085

Extension, Spring

$

$

Currently unavailable

30

Husqvarna 532123692

KNOB RETAINER

$

$

Not available

32

Husqvarna 819111110

Washer 11/32 x 11 /16 x 16 Gauge

$

$

Currently unavailable

34

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0
