LR 125 (954000522-A) - Husqvarna Lawn Tractor (1992-12) Transaxle Parts Diagram

Lawn Tractor

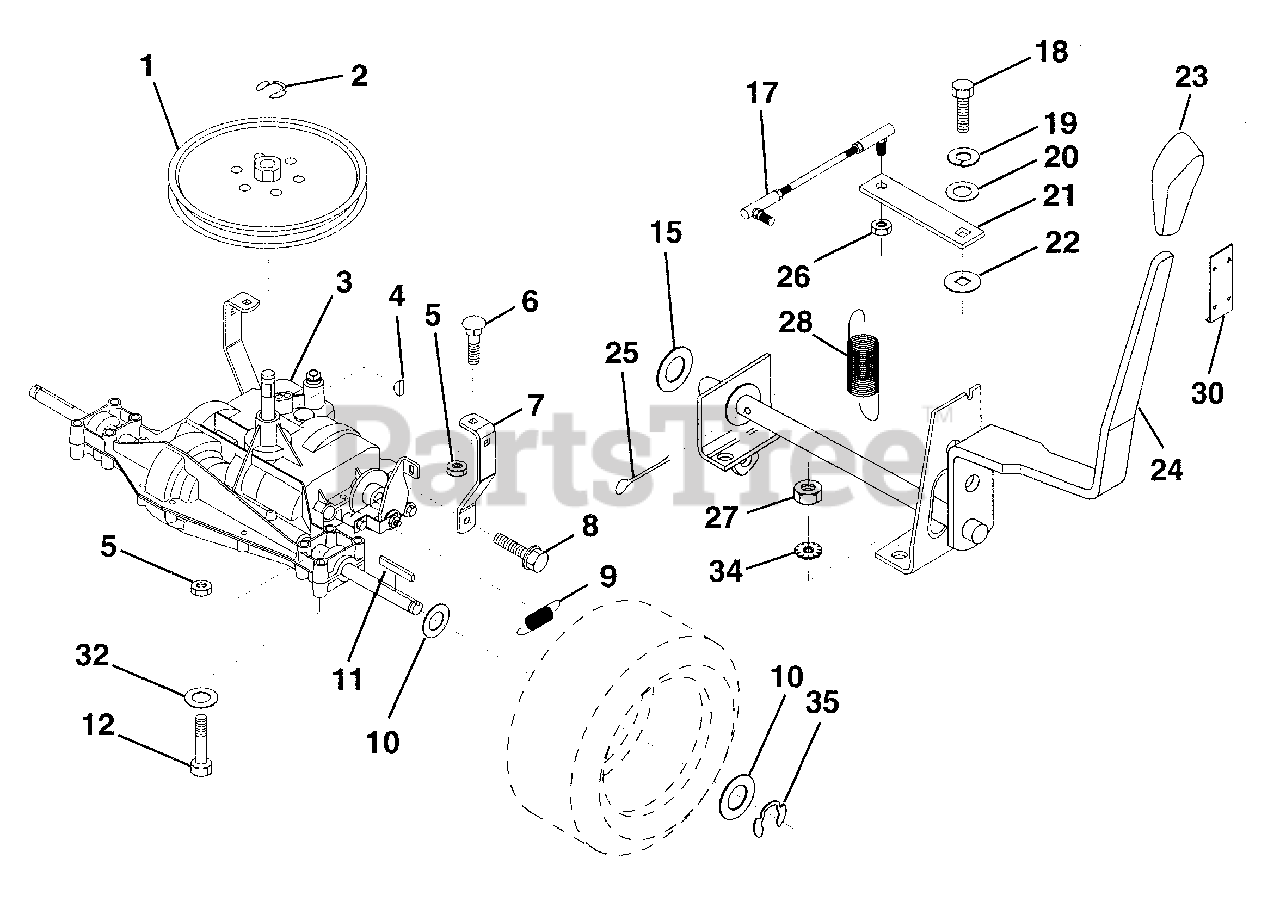

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 13

0

3

Transaxle, Peerless, 6 Speed,

Note: Model Number 930-028

$

$

Not available

4

Husqvarna 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

Nut, Hex, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

Strap, Torque

$

$

Not available

8

Husqvarna 817490512

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 874760540

Bolt, Hex, Fin. 5/16-18 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171616

Washer 17/32 x 1 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

17

Husqvarna 532126293

Link, Shift

$

$

Not available

18

Husqvarna 871040412

Bolt, Hex, Fin. 1/4-28 UNF x 3/4 Grade 8

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Gauge

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532126292

Arm, Shift

$

$

Not available

22

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532122011

Knob, Golfclub

$

$

Not available

24

Husqvarna 532128202

Shift Handle Assembly

$

$

Not available

25

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873810500

Locknut 5/16-24 UNF
(Superseded to 873610500)

$

$

Not available

27

Husqvarna 873510500

Nut, Hex, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 32128085

Extension, Spring

$

$

Currently unavailable

30

Husqvarna 532123692

Retainer Knob

$

$

Not available

32

Husqvarna 819111110

Washer 11/32 x 11 /16 x 16 Gauge

$

$

Currently unavailable

34

Husqvarna 811050500

Washer, External Tooth 5/16
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

35

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 16

0
