LR 125 (954001202-B) - Husqvarna Lawn Tractor (1995-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

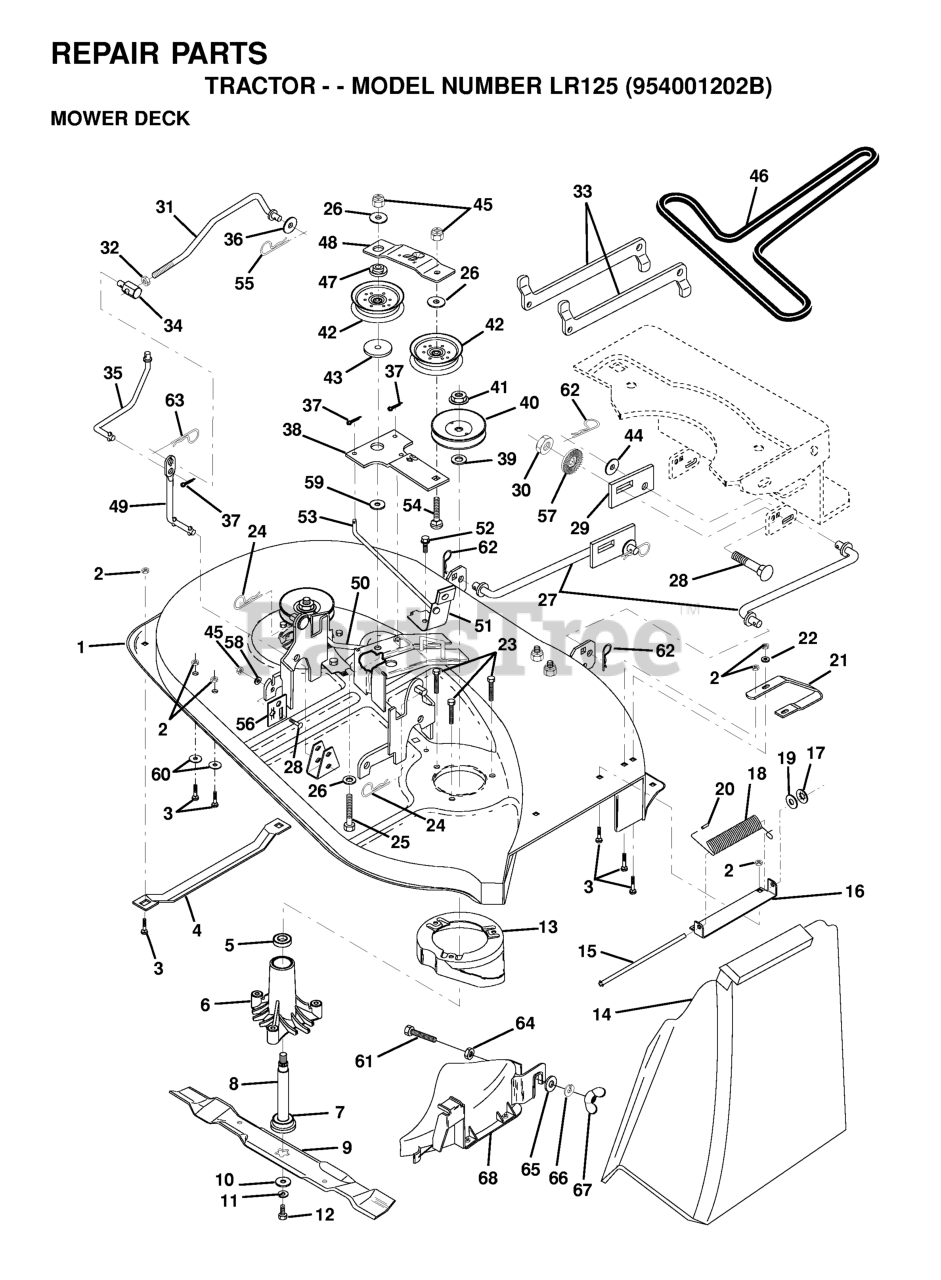

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

7

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$10.99

$

In Stock, Qty 20+

0

60

Husqvarna 819111112

WASHER

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532131289

BRAKE ROD LH

$

$

Not available

34

Husqvarna 532133604

TRUNNION

$17.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

32

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

27

Husqvarna 532139756

LINK LIFT

$

$

Not available

4

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

56

Husqvarna 532136782

ADJUSTMENT PLATE

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 532123713

SPRING TORSION

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

39

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 532142830

DECK ASSY
(Superseded to 532188249)

$303.99

$

Usually ships in 3-10 days

0

30

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

62

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532132803

COVER.MULCHING.38" (2 2)

$66.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532133840

IDLER ARM

$

$

Not available

9

Husqvarna 532134148

BLADE 38" V MULCH

$24.99

$

In Stock, Qty 6

0

48

Husqvarna 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532142862

DECK SERV 38 MWR

$

$

Not available

41

Husqvarna 532137266

NUT
(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

53

Husqvarna 532131288

BRAKE ROD RH

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

52

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$44.99

$

In Stock, Qty 20+

0

25

Husqvarna 874600636

BOLT
(Superseded to 874760636)

$6.49

$

In Stock, only 1 left!

0

66

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

29

Husqvarna 532139757

PLATE SLIDE LINK

$

$

Not available

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532126520

BELT
(Superseded to 532419271)

$60.99

$

In Stock, only 4 left!

0

21

Husqvarna 532128772

RUNNER.RH.38

$

$

Not available

26

Husqvarna 819131612

WASHER GT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532138776

SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

61

Husqvarna 874930620

Bolt, Hex Head 3/8-16 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532106735

ROD-HINGE T

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532140915

ROD.CLUTCH.PRIMARY

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 17

0

11

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 532129206

MANDREL PULLEY
(Superseded to 532173435)

$10.99

$

In Stock, Qty 20+

0

67

Husqvarna 532135651

WING NUT

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

65

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532132559

ARM REAR SUSPENSION

$

$

Not available

57

Husqvarna 532144283

WASHER SERRATED DISC 13/32 X 1

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 13

0

49

Husqvarna 532133551

PIVOT ROD

$8.99

$

In Stock, only 4 left!

0

42

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$37.99

$

In Stock, only 4 left!

0

55

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

58

Husqvarna 819131212

WASHER T
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 532132554

CLUTCH ROD

$

$

Not available

6

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$31.99

$

In Stock, Qty 20+

0

14

Husqvarna 532106736

SHIELD.DEFLECTOR.MOWER.38.BL

$

$

Not available
