LR 125 (954001202-C) - Husqvarna Lawn Tractor (1995-03) Engine Parts Diagram

Lawn Tractor

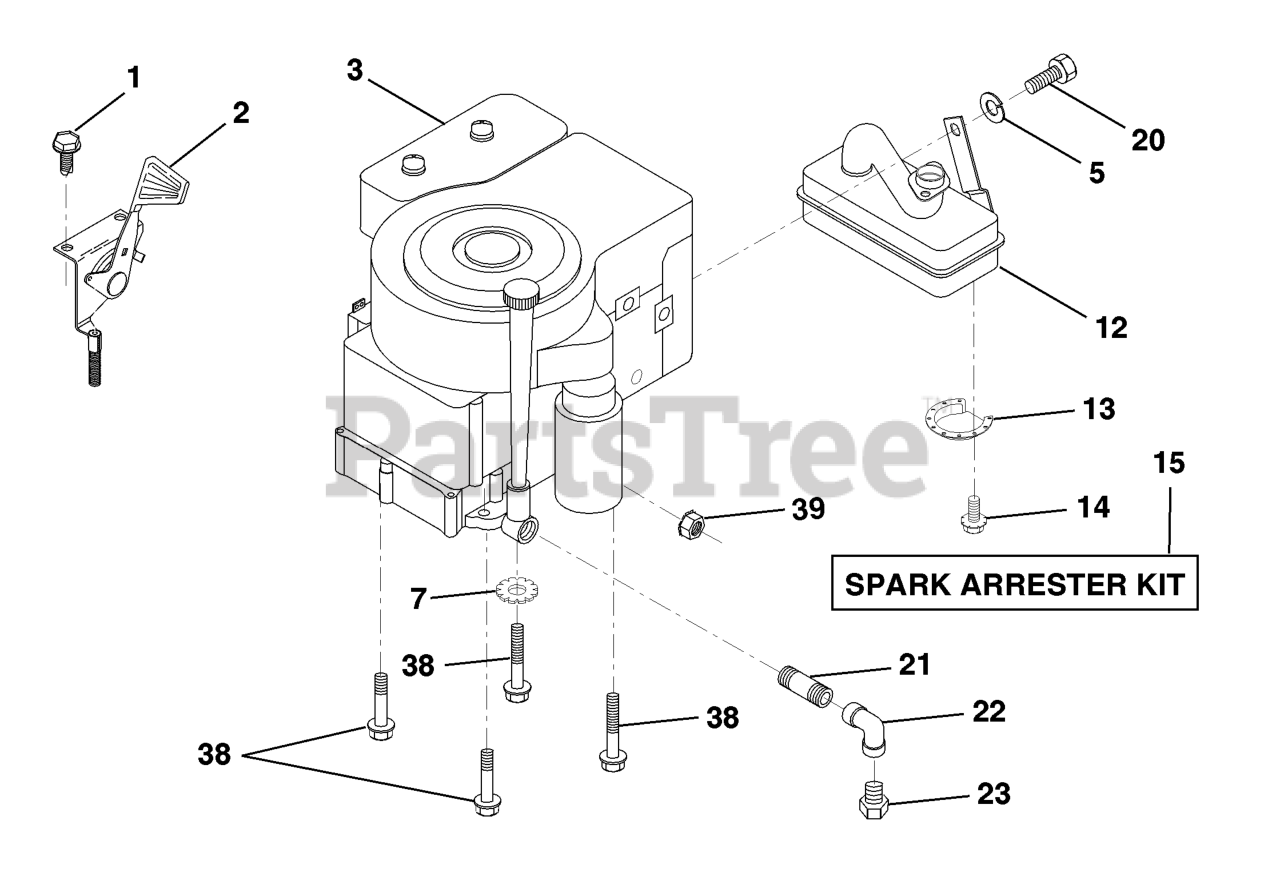

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

SCREW

$

$

Not available

2

Husqvarna 532132753

THROTTLE CONTROL

$

$

Not available

3

Engine, Kohler 12.5 Hp Model C.V.14

$

$

Not available

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532138149

MUFFLER KOH

$

$

Not available

13

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

14

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: (Optional Equipment)

$203.99

$

In Stock, only 1 left!

0

20

Husqvarna 874760508

Bolt, Hex Hd. 5/16-18 x 1/2

$

$

Not available

21

Husqvarna 813280328

Nipple, Pipe 3/8 NPT x 3-1/2

$

$

Not available

22

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$23.99

$

In Stock, Qty 20+

0

23

Nipple, Pipe

Note: (Order from eng. mfg.)

$

$

Not available

38

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

39

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0
