LR 125 (954001202-C) - Husqvarna Lawn Tractor (1995-03) Transaxle Parts Diagram

Lawn Tractor

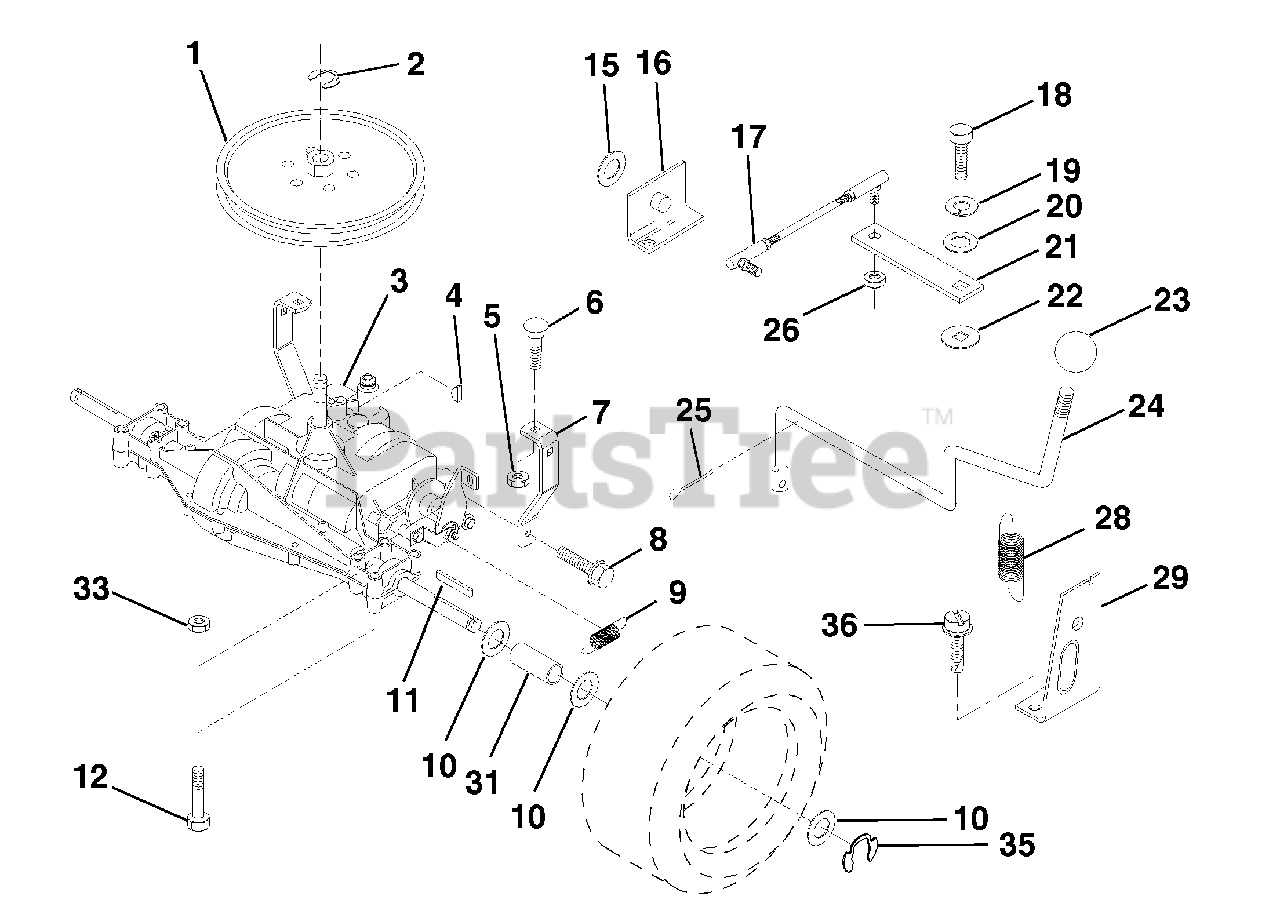

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$34.99

$

In Stock, only 1 left!

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 532142603

Transaxle, Dana Model No. 4360-79
(Superseded to 532170269)

$

$

Not available

4

Husqvarna 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

Strap, Torque

$

$

Not available

8

Husqvarna 817490512

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532146682

Spring, Brake

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 7

0

12

Husqvarna 874760644

Bolt, Hex, Fin. 3/8-16 Unc x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819171616

Washer 17/32 x 1 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

16

Husqvarna 532124600

Support Handle Shift, LH

$

$

Not available

17

Husqvarna 532123632

Link, Shift

$

$

Not available

18

Husqvarna 874550412

Bolt, Hex, Fin. 1/4-28 UNF x 3/4 Grade 8
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Gauge

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532123539

Arm, Shift

$

$

Not available

22

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532121274

Knob, Duckhead

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532128215

Rod Assembly, Shift

$

$

Not available

25

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873810500

Locknut 5/16-24 UNF
(Superseded to 873610500)

$

$

Not available

28

Husqvarna 532128085

Extension, Spring

$

$

Not available

29

Husqvarna 532128084

Support Handle Shift, RH

$

$

Not available

31

Husqvarna 532109502

Spacer Split

$

$

Not available

33

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 817720408

Screw, Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0
