LR 4300 (UT-03828) - Homelite Generator Exhaust Parts Diagram

Generator

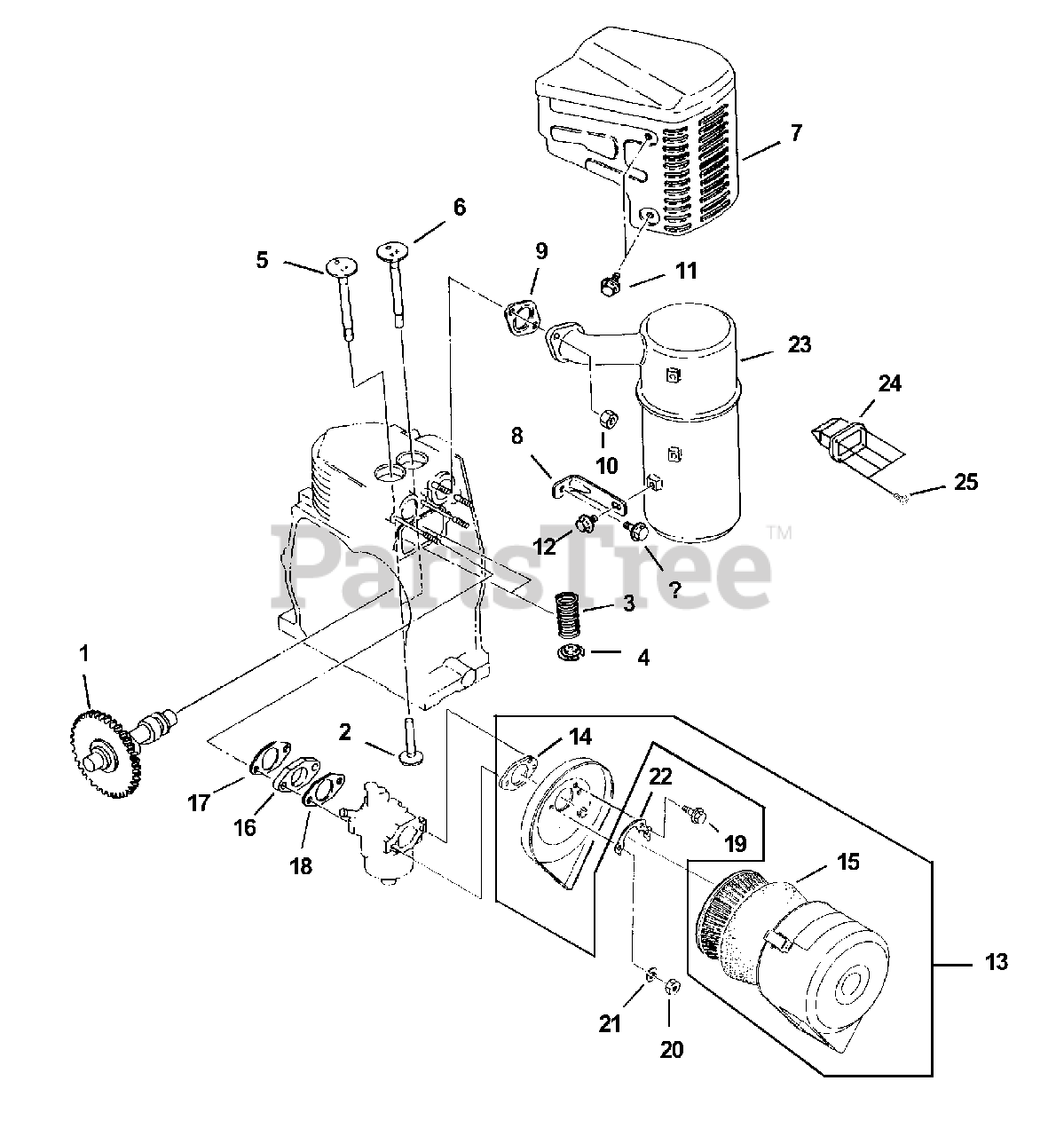

Exhaust Parts Diagram

  • Title

1

Homelite UP03264

Camshaft

$

$

Not available

2

Homelite UP03265

Tappet

$

$

Not available

3

Homelite UP03266

Valve spring

$

$

Not available

4

Homelite UP03267

Spring retainer

$

$

Not available

5

Homelite UP03268

Intake valve

$

$

Not available

6

Homelite UP03269

Exhaust valve

$

$

Not available

7

Homelite UP03270

Muffler cover

$

$

Not available

8

Homelite UP03271

Muffler bracket

$

$

Not available

9

Homelite UP03272

Muffler gasket

$

$

Not available

10

Homelite UP03273

Nut (M8 X 1.25)

Note: (Torque Specs 120-140 In/Lbs, 13.6-15.8 Nm)

$

$

Not available

11

Homelite UP03274

Flange bolt (M6 X 1.0 X 8L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

12

Homelite UP03242

Flange bolt (M6 X 1.0 X 12L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

13

Homelite UP03276

Air filter assy

$

$

Not available

14

Homelite UP03277

Gasket air filter

$

$

Not available

15

Homelite UP03278

Air filter

$

$

Not available

16

Homelite UP03279

Insulator

$

$

Not available

17

Homelite UP03280

Insulator gasket

$

$

Not available

18

Homelite UP03281

Insulator gasket

$

$

Not available

19

Homelite UP03282

Bolt & washer (M6 X 1.0 X 12L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

20

Homelite UP03283

Nut (M6 X 1.0)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

21

Homelite PS00503

Spring washer

$

$

Not available

22

Homelite UP03284

Lock washer

$

$

Not available

23

Homelite UP03285

Muffler

$

$

Not available

24

Homelite UP03286

Spark Arrestor

$

$

Not available

25

Homelite UP03287

Screw, Tapping (M4 X 0.7 X 8L)

Note: (Torque Specs 9.4-16.6 In/Lbs, 1.1-1.9 Nm)

$

$

Not available
