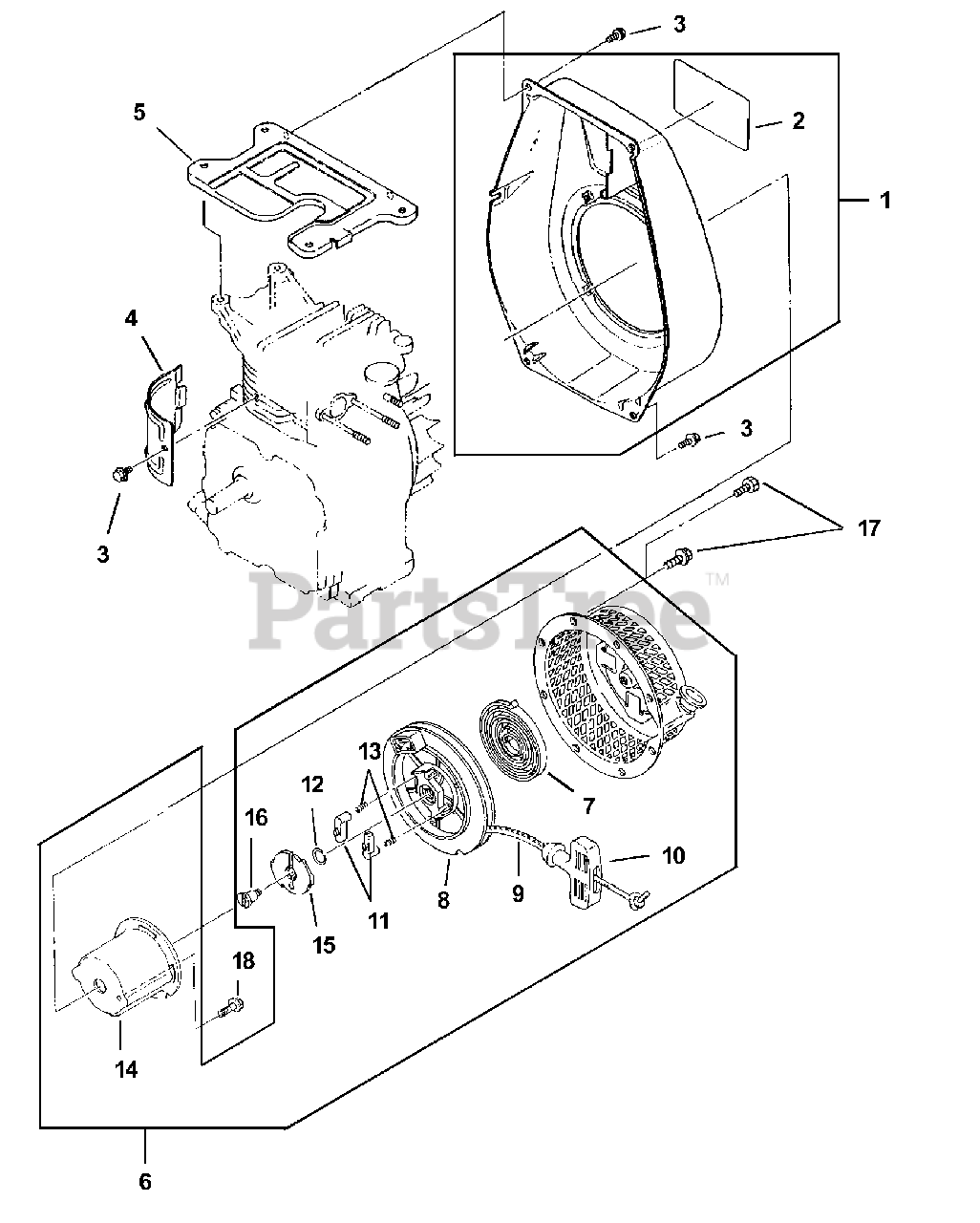

LR 4300 (UT-03843) - Homelite Generator Starter Parts Diagram

Generator

Starter Parts Diagram

  • Title

1

Homelite UP03301

Blower housing

$

$

Not available

2

Homelite UP03302

Label (trademark)

$

$

Not available

3

Homelite UP03242

Flange bolt (M6 X 1.0 X 12L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

4

Homelite UP03304

Cylinder baffle

$

$

Not available

5

Homelite UP03305

Head cover

$

$

Not available

6

Homelite UP03306

Starter assy

$

$

Not available

7

Homelite UP03307

Spring rewind

$

$

Not available

8

Homelite UP03308

Reel

$

$

Not available

9

Homelite 0827410

Starter rope

$

$

Currently unavailable

10

Homelite A69962B

Starter knob

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 0827404

Ratchet

$

$

Currently unavailable

12

Homelite 0827406

Friction spring

$

$

Not available

13

Homelite 0827407

Return spring

$

$

Currently unavailable

14

Homelite UP03309

Starter cup

$

$

Not available

15

Homelite 0827408

Ratchet guide

$

$

Not available

16

Homelite 0827409

Set screw (M6 X 1.0 X 14L)

Note: (Torque Specs 40-45 In/Lbs, 4.5-5.1 Nm)

$

$

Not available

17

Homelite UP03274

Flange bolt (M6 X 1.0 X 8L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available

18

Homelite UP03300

Flange bolt (M6 X 1.0 X 14L)

Note: (Torque Specs 51-65 In/Lbs, 5.8-7.3 Nm)

$

$

Not available
