LR 5000 T (UT-03829) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

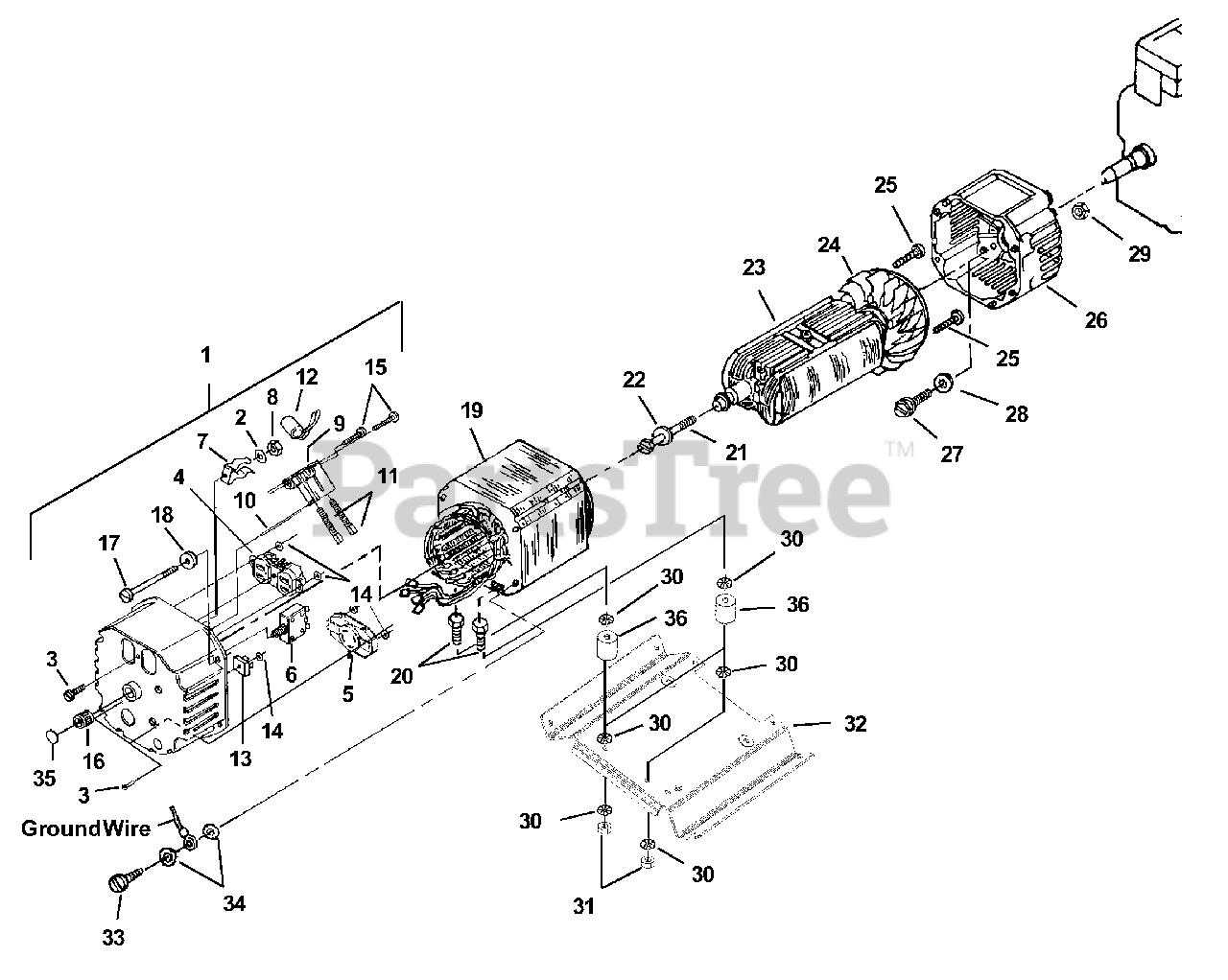

Brush Head - Generator Parts Diagram

  • Title

1

Homelite A06923

COMPLETE BRUSH HEAD
(Superseded to UP06849)

$

$

Not available

2

Homelite 83004

WASHER - Lock (ext.)
(Superseded to 83119)

$

$

Not available

3

Homelite 80630

SCREW - Mach. Pan Hd. (6-32 X 1/2")

Note: (Torq. to 9 - 13 In/Lbs (1.0 - 1.5 Nm))

$

$

Not available

4

Homelite 498321A

RECEPTACLE - Duplex (Nema 5-20R)
(Superseded to 51373)

$

$

Not available

5

Homelite 46508

RECEPTACLE - Locking (120V/240V) (Nema L14-20R)

$

$

Not available

6

Homelite 09183

BREAKER - Circuit (20 amp.)

$

$

Not available

7

Homelite 02435

CLIP - Spring Cap

$

$

Not available

8

Homelite 81002

NUT - Hex (6-32)

$

$

Not available

9

Homelite 02365

BRUSH HOLDER
(Superseded to UP03449)

$21.99

$

Usually ships in 3-7 days

0

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

10

Homelite 02857

PIN

$2.99

$

In Stock, only 1 left!

0

11

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

12

Homelite A02860

CAPACITOR (w/Lead)

$

$

Currently unavailable

13

Homelite 95672

RECTIFIER

$21.99

$

Usually ships in 3-7 days

0

14

Homelite 02437

WASHER - Shaft Retention

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 82526

SCREW - Pan Hd. (6-19 X 3/4 )

Note: (Torq. to 12 - 16 In/Lbs (1.4 - 1.8 Nm))

$

$

Not available

16

Homelite 03044

BEARING - Needle

$

$

Not available

17

Homelite 4885301

BOLT - Stator
(Superseded to UP03430)

Note: (Torq. to 60 - 80 In/Lbs (6.8 - 9.0 Nm))

$12.99

$

Usually ships in 3-7 days

0

18

Homelite 84124

WASHER - Flat
(Superseded to UP03418)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite A02795BS

STATOR

Note: (When ordering stator also order decal kit P/N UP03387.)

$

$

Not available

20

Homelite 80288

SCREW - Hex Hd. (5/16-18 X 1 3/4")
(Superseded to UP03388)

Note: (Torq. to 150 - 155 In/Lbs (16.9 - 17.5 Nm))

$

$

Not available

21

Homelite 4885207

BOLT-Rotor

Note: (Torq. to 100 - 140 In/Lbs (11.3 - 15.8 Nm))

$

$

Not available

22

Homelite 83002

WASHER - Lock (5/16")
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite A02798AS

ROTOR

$

$

Not available

24

Homelite A04013

FAN - Generator
(Superseded to UP03737)

$

$

Not available

25

Homelite 82526

SCREW - Pan Hd. (6-19 X 3/4")

Note: (Torq. to 12 - 16 In/Lbs (1.4 - 1.8 Nm))

$

$

Not available

26

Homelite UP03726

END BELL

$

$

Not available

27

Homelite 80604

SCREW - Hex Hd. (5/16-24 X 3/4")
(Superseded to UP03390)

Note: (Torq. to 120 - 150 In/Lbs (13.6 - 16.9 Nm))

$

$

Not available

28

Homelite 83078

Washer - Lock

$

$

Not available

29

Homelite 81204

Nut - Hex (1/4-20)

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 83033

Washer - Lock (int./ext.)
(Superseded to 83081)

$

$

Not available

31

Homelite 81162

Nut - Hex (5/16-18)

$

$

Not available

32

Homelite 063781

Sub - Frame

$

$

Not available

33

Homelite 82538

Screw - Taptite (10/24 X 3/4")

Note: (Torq. to 45 - 55 In/Lbs (5.1 - 6.2 Nm))

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 83121

Washer - Lock (int./ext.)

$

$

Not available

35

Homelite 02438

Plug - Expansion

$

$

Not available

36

Homelite UP03728

Spacer

$

$

Not available

Homelite UP03387

Decal Kit

$

$

Not available
