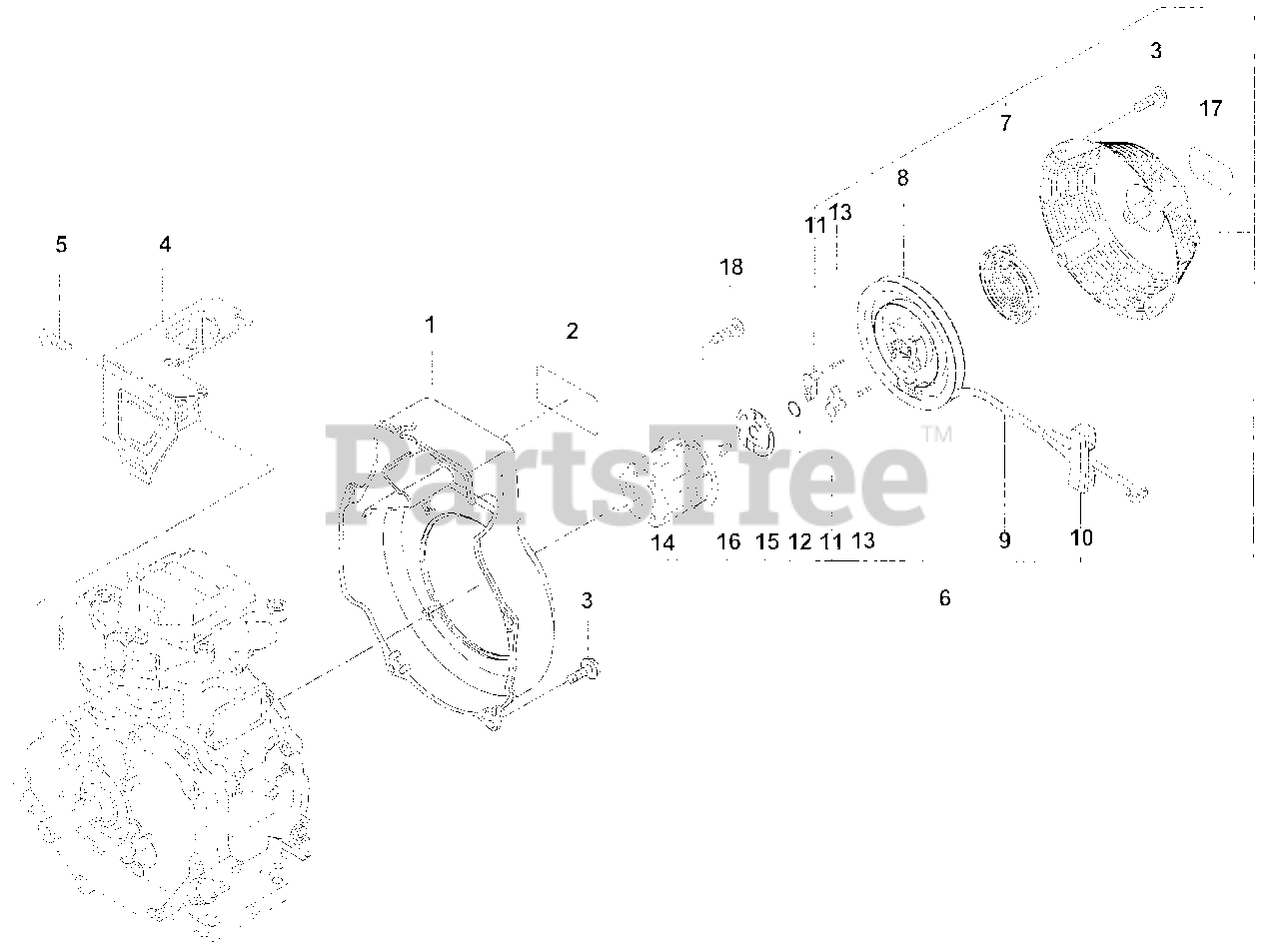

LR 5550 (UT-03833) - Homelite Generator Starter Parts Diagram

Generator

Starter Parts Diagram

  • Title

1

Homelite UP05369

Blower housing

Note: Robin P/N 246-51205-11

$

$

Not available

2

Homelite UP05370

Label (trademark)

Note: Robin P/N 247-91705-03

$14.99

$

Usually ships in 3-7 days

0

3

Homelite UP03274

Flange bolt

Note: Torque Specs 51 - 65 in/lbs (5.8 - 7.3 Nm); Robin P/N 011-00600-10

$

$

Not available

4

Homelite UP05371

Cylinder Baffle cp

Note: Robin P/N 246-52701-11

$

$

Not available

5

Homelite UP03358

Flange bolt

Note: Torque Specs 51 - 65 in/lbs (5.8 - 7.3 Nm); Robin P/N 011-00600-10

$9.49

$

Usually ships in 3-7 days

0

6

Homelite UP05372

Recoil starter assy

Note: Robin P/N 246-50201-20

$

$

Not available

7

Homelite UP05373

Spring rewind

Note: Robin P/N 246-50115-08

$

$

Not available

8

Homelite UP05009

Reel

Note: Robin P/N 246-50120-08

$

$

Not available

9

Homelite 0827410

Starter rope

Note: Robin P/N 270-50110-08

$

$

Currently unavailable

10

Homelite UP04008

Starter knob

Note: Robin P/N 261-50100-08

$

$

Not available

11

Homelite UP05010

Ratchet

Note: Robin P/N 246-50125-08

$

$

Not available

12

Homelite UP05011

Friction spring

Note: Robin P/N 246-50130-08

$

$

Not available

13

Homelite 0827407

Return spring

Note: Robin P/N 227-50135-08

$

$

Currently unavailable

14

Homelite UP05374

Pulley

Note: Robin P/N 246-50147-08

$

$

Not available

15

Homelite UP05013

Ratchet guide

Note: Robin P/N 246-50160-08

$

$

Not available

16

Homelite 0827409

Set screw

Note: Torque Specs 40 - 45 in/lbs (4.5 - 5.1 Nm); Robin P/N 227-50152-08

$

$

Not available

17

Homelite UP04013

Label, OHV

Note: Robin P/N 073-20049-50

$

$

Not available

18

Homelite UP05014

Bolt

Note: Robin P/N 001-65081-20

$

$

Not available
