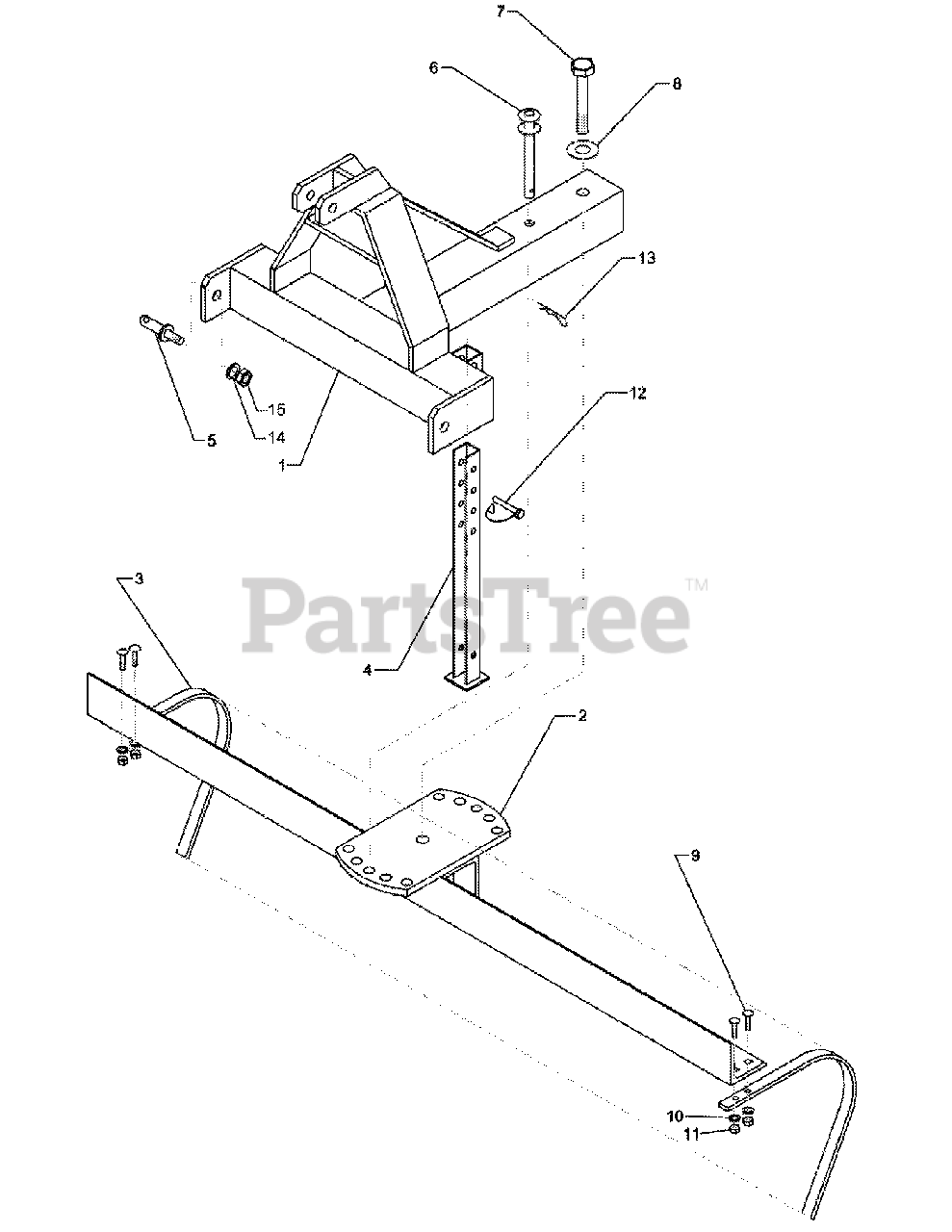

Tractor 84" Landscape Rake

Frame LR72 & LR84 Version 3 Parts Diagram

  • Title

1

Cub Cadet YS-006-9500

A-Frame (LR72 & LR84)

$

$

Not available

2

Cub Cadet YS-016-9601

Welded swivel (LR72)

$

$

Not available

2

Cub Cadet YS-026-9601

Welded swivel ( LR84)

$

$

Not available

3

Cub Cadet YS-006-9602

Rake tine with 2 holes (LR72 & LR84)
(Superseded to BF-006-9602)

$

$

Not available

4

Cub Cadet YS-006-9608

Foot stand
(Superseded to BF-006-9608)

$

$

Not available

5

Cub Cadet YS-943-008B

Hitch pin 7/8"
(Superseded to BF-943-008B)

$

$

Not available

6

Cub Cadet YS-006-9616

Swivel pin 3/4"x6" (LR72 & LR84)

$

$

Not available

7

Cub Cadet YS-006-9604

Hex bolt 1"x6" (LR72 & LR84)
(Superseded to BF-006-9604)

$

$

Not available

8

Cub Cadet YS-006-9513

Flat washer 1" (LR72 & LR84)

$

$

Not available

9

Cub Cadet YS-006-9603

Carriage bolt 3/8"-16x1.25" (LR72 & LR84)
(Superseded to BF-006-9603)

$

$

Not available

10

Cub Cadet YS-006-9619

Lock washer 3/8"
(Superseded to BF-006-9619)

$

$

Not available

11

Cub Cadet YS-006-9620

Hex nut 3/8"
(Superseded to BF-006-9620)

$

$

Not available

12

Cub Cadet YS-501-684B

Lynch pin
(Superseded to BF-501-684B)

$

$

Not available

13

Cub Cadet YS-009-1507

R clip Ø4
(Superseded to BF-009-1507)

$

$

Not available

14

Cub Cadet YS-502-859B

Lock washer 7/8"
(Superseded to BF-502-859B)

$

$

Not available

15

Cub Cadet YS-502-860B

Hex nut 7/8"
(Superseded to BF-502-860B)

$

$

Not available

Cub Cadet YS-950-210B

Decal "CAUTION - Read Operator's Manual"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-319B

Decal "WARNING - To avoid injury"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-320B

Decal "WARNING - To avoid injury, storage"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-321B

Decal "DANGER - Crushing hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-322B

Decal "WARNING - Pinch point"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-323B

Decal "WARNING - Tighten pivot point"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-940B

Decal "Quick Hitch Compatible"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-446B

Decal "CCY" small

Note: Not shown

$

$

Not available

Cub Cadet YS-950-462B

Decal "LR72"

Note: Not shown

$

$

Currently unavailable

Cub Cadet YS-950-468B

Decal "LR84"

Note: Not shown

$

$

Not available
