LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001)

27" Rear-Engine Riding Mower

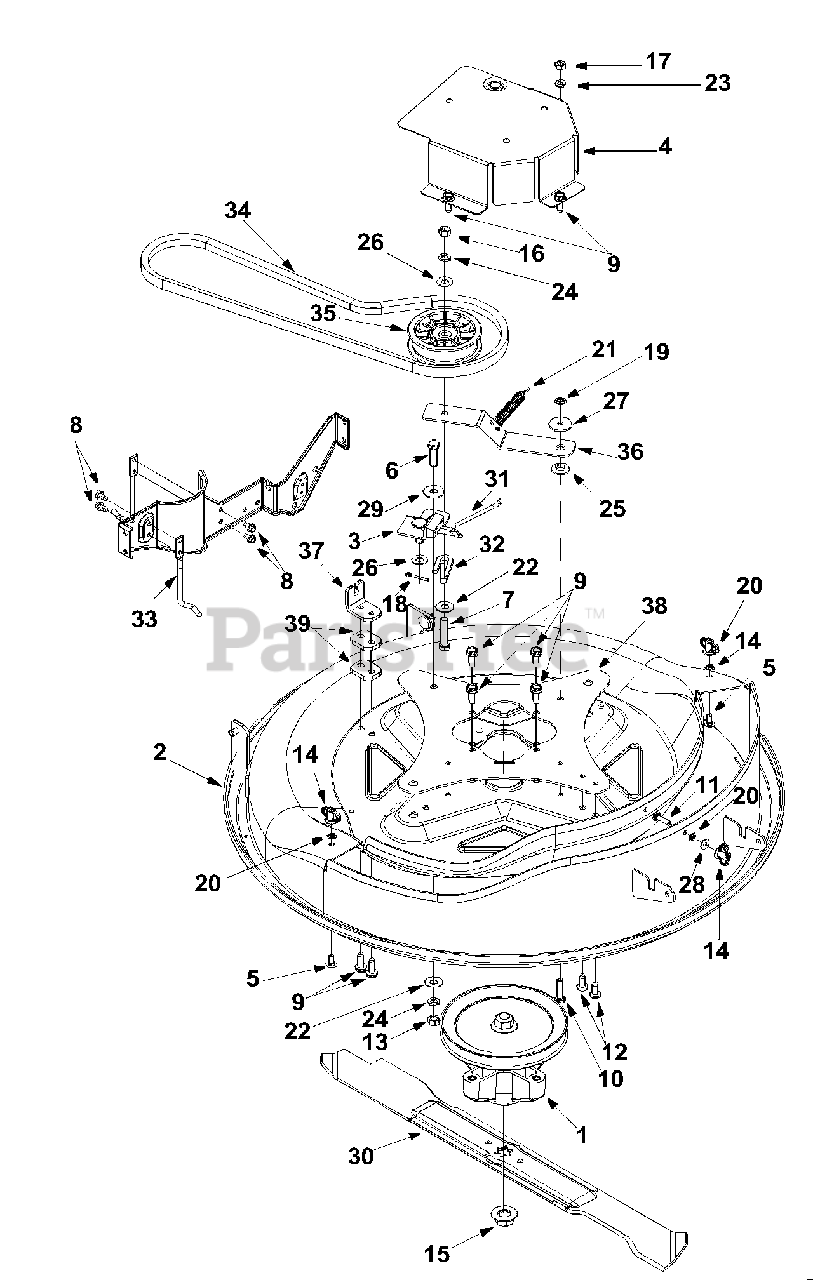

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) > Parts Diagrams (15) > Deck Assembly

  • Title
618-0250

1

Spindle Assembly

Part# 618-0250 (Superseded to 618-0250P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $304.95

683-0150C-650

2

Deck Assembly: Red metallic

Part# 683-0150C-650

Not available

683-0159

3

Brake Bracket Assembly

Part# 683-0159 (Superseded to 983-0159)

OEM Warranty Repair Part for White Outdoor

Not available

683-0173

4

Deck Belt Cover

Part# 683-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.21

Variations

POWDER BLACK (0637)

Deck Belt Cover Assembly, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.21

RED METALLIC (0650)

Deck Belt Cover Assembly, Black

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.21

YARDMAN GREEN (0665)

Deck Belt Cover Assembly, Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.21

710-0134

5

Carriage Screw 1/4-20 x .62

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0191

6

Hex Bolt 3/8-24 x 1.25 Grade 8

Part# 710-0191

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0347

7

Hex Screw 3/8-16 x 1.75 Gr. 5

Part# 710-0347

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

710-0599

8

Self-Tapp. Screw 1/4-20 x .5

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0650

9

Self-Tapp. Screw 5/16-18 x .75

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

710-0672

10

Hex Cap Scr. 5/16-24 x 1.25

Part# 710-0672

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

710-0932

11

Carriage Screw

Part# 710-0932 (Superseded to 710-0932A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-1611

12

Torx Screw 5/16-18 x .75

Part# 710-1611 (Superseded to 710-1611B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

712-0241

13

Hex Nut 3/8-24

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

712-0397

14

Wing Nut With Bell Washer

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

712-0417A

15

Flange Nut 5/8-18

Part# 712-0417A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

712-3017

16

Hex Nut 3/8-16

Part# 712-3017 (Superseded to 912-3017)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

712-3057

17

Hex Nut 5/16-24

Part# 712-3057 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

714-0115

18

Cotter Pin

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

726-0201

19

Speed Nut

Part# 726-0201

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

726-0233

20

Push Nut

Part# 726-0233

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

732-0429A

21

Extension Spring

Part# 732-0429A (Superseded to 932-0429A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.57

736-0101

22

Flat Washer 3/8 x 1.00 x .030

Part# 736-0101 (Superseded to 936-0101)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.21

736-0119

23

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0169

24

Lock Washer 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0289

25

Bushing

Part# 736-0289 (Superseded to 936-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0300

26

Flat Washer .406 x .875 x .059

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0343

27

Flat Washer .330 x 1.25 x .120

Part# 736-0343

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-3020

28

Flat Washer

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

738-0968

29

Spacer

Part# 738-0968 (Superseded to 938-0968)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.65

742-0651

30

Three-in-one Blade

Part# 742-0651

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $57.45

Variations

POWDER BLACK (0637)

Mower Blade, 27.56" Lg 3-in-1 Star

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $57.45

747-0957

31

Link Rod

Part# 747-0957

OEM Warranty Repair Part for White Outdoor

Not available

747-0972

32

Belt Keeper

Part# 747-0972

OEM Warranty Repair Part for White Outdoor

Not available

747-1172

33

Belt Keeper

Part# 747-1172

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

KEEPER-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

754-0754

34

V Belt

Part# 754-0754 (Superseded to 954-0754)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $52.26

756-0627

35

Flat Idler Pulley

Part# 756-0627 (Superseded to 756-0627D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.70

783-0463

36

Idler Bracket

Part# 783-0463

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-DECK IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0529

37

Cable Bracket

Part# 783-0529

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-DECK CABLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0569A

38

Deck Plate

Part# 783-0569A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-DECK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0781

39

Deck Skirt

Part# 783-0781

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SKIRT-DECK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0594

?40

Deck Cable Bracket

Part# 783-0594

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-DECK CABLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available
