LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001)

27" Rear-Engine Riding Mower

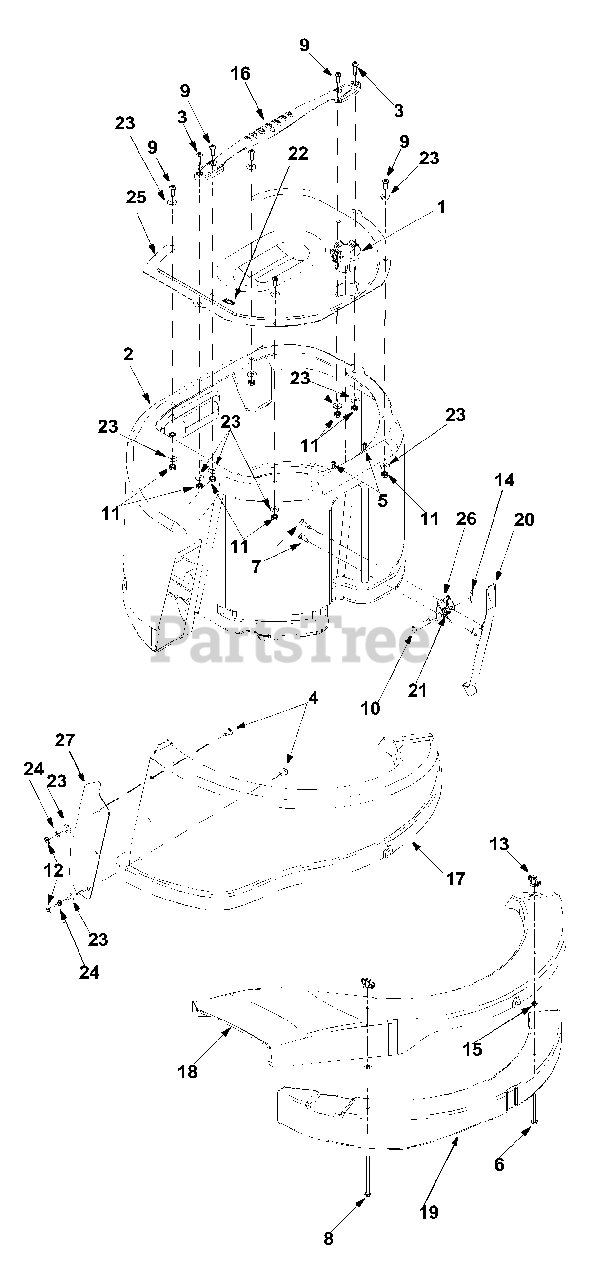

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) > Parts Diagrams (15) > Grass Bag Assembly

  • Title
631-0060

1

Flow Indicator Assembly

Part# 631-0060 (Superseded to 931-0060)

OEM Warranty Repair Part for White Outdoor

Not available

631-0080

2

Grass Bag Assembly

Part# 631-0080

OEM Warranty Repair Part for White Outdoor

Not available

710-0166

3

Machine Screw 1/4-20 x 1.0

Part# 710-0166 (Superseded to 710-0166A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

710-0286

4

Machine Screw 1/4-20 x 0.5"

Part# 710-0286

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0456

5

Hex Screw #10-16 x 0.5"

Part# 710-0456

OEM Warranty Repair Part for White Outdoor

Not available

710-0564

6

Hex Screw 1/4-20 x 2.75"

Part# 710-0564

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-0642

7

Self-Tapping Screw 1/4-20 x 0.75"

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

710-0825

8

Hex Screw 1/4-20 x 3.75"

Part# 710-0825

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.79

710-0924

9

Machine Screw 1/4-20 x 0.75"

Part# 710-0924

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

711-0415

10

Clevis Pin

Part# 711-0415 (Superseded to 911-0415)

OEM Warranty Repair Part for White Outdoor

Not available

712-0271

11

Hex Sems Nut 1/4-20

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

712-0298

12

Jam Nut

Part# 712-0298 (Superseded to 912-0298)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.32

712-0397

13

Wing Nut

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

714-0115

14

Cotter Pin

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

726-0271

15

Speed Nut

Part# 726-0271 (Superseded to 926-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

731-1441

16

Bag Handle

Part# 731-1441

OEM Warranty Repair Part for White Outdoor

Not available

731-1743A

17

Discharge Chute: Grass Bag

Part# 731-1743A

OEM Warranty Repair Part for White Outdoor

Not available

731-1744

18

Side-Discharge Chute

Part# 731-1744

OEM Warranty Repair Part for White Outdoor

Not available

731-1745A

19

Mulching Plug

Part# 731-1745A

OEM Warranty Repair Part for White Outdoor

Not available

732-0839

20

Bag Release Lever

Part# 732-0839 (Superseded to 732-0839A)

OEM Warranty Repair Part for White Outdoor

Not available

732-0841

21

Torsion Spring

Part# 732-0841 (Superseded to 932-0841)

OEM Warranty Repair Part for White Outdoor

Not available

732-0854

22

Clip Spring

Part# 732-0854

OEM Warranty Repair Part for White Outdoor

Not available

736-0173

23

Flat Washer

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

736-0329

24

Lock Washer

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

783-0544A

25

Grass Bag Screen

Part# 783-0544A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SCREEN-BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0575A

26

Pivot Bracket

Part# 783-0575A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRAKET-PIVOT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0645

27

Deflector Plate

Part# 783-0645

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-CHUTE DEFLEC

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available
