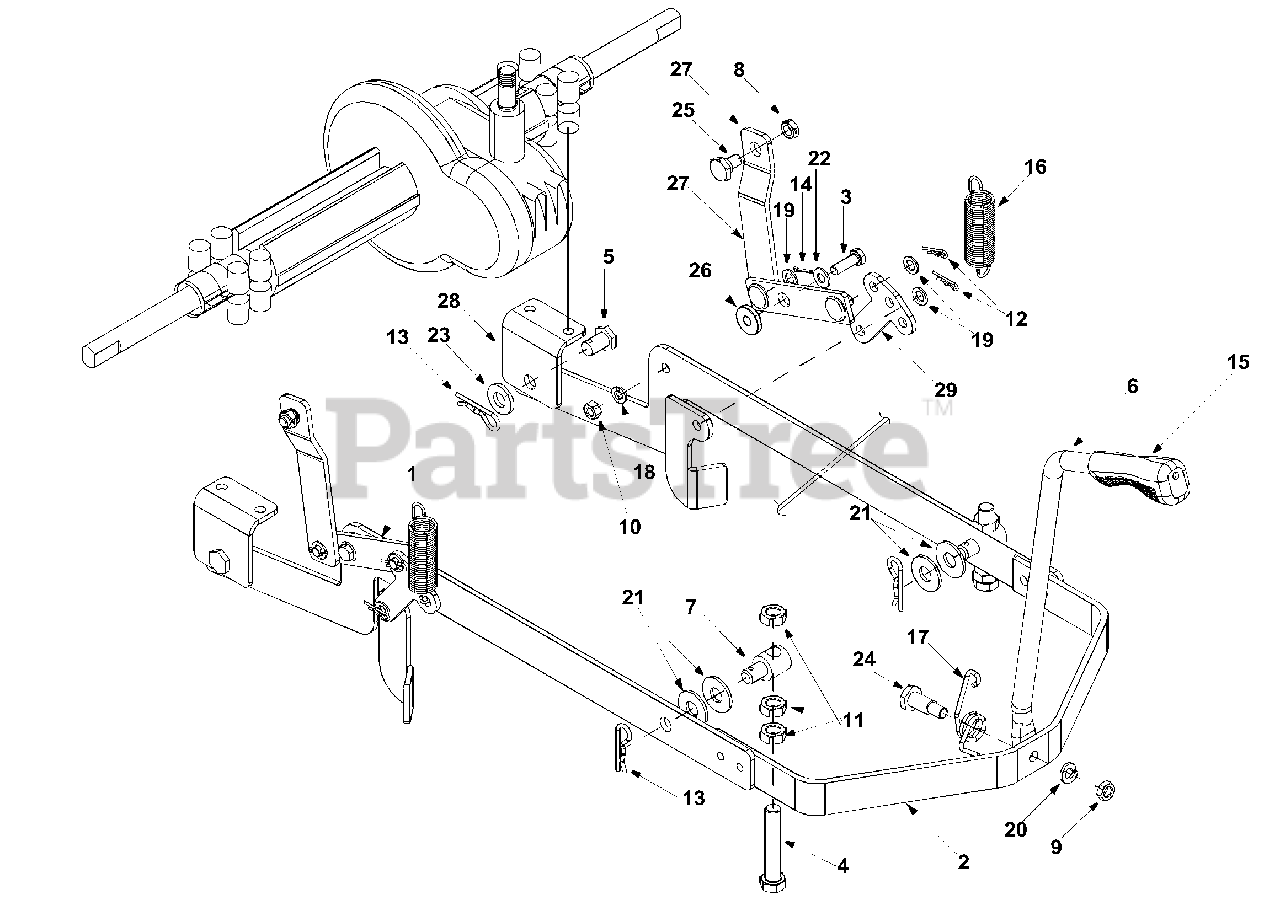

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) > Parts Diagrams (15) > Lift Assembly

  • Title
683-0152

1

Pivot Link Assembly

Part# 683-0152

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available LINK ASSY-PIVOT RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0194

2

Lift Arm Assembly

Part# 683-0194

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ARM ASSY-LIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $190.15

710-0376

3

Hex Screw 5/16-18 X 1.00 Gr.5

Part# 710-0376

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-3230

4

Hex Bolt 1/2-13 X 2.75 Gr.5 Special

Part# 710-3230

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.61

711-0332

5

Lift Bracket Pin

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.88

711-1120

6

Lift Rod

Part# 711-1120

OEM Warranty Repair Part for White Outdoor

Not available

711-3319

7

Ferrule

Part# 711-3319 (Superseded to 911-3319)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.89

712-0266

8

Jam Nut

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3008

9

Jam Nut 3/8-16 Gr. 5

Part# 712-3008 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

712-3010

10

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

712-3048

11

Jam Nut

Part# 712-3048 (Superseded to 912-3048)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

714-0104

12

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0147

13

Cotter Pin

Part# 714-0147

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.36

714-3010

14

Cotter Pin

Part# 714-3010

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

720-0298

15

Handle Grip

Part# 720-0298

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.40

732-0829

16

Extension Spring

Part# 732-0829 (Superseded to 932-0829)

OEM Warranty Repair Part for White Outdoor

Not available

732-0837

17

Torsion Spring

Part# 732-0837

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

18

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0140

19

Flat Washer .385 I.D. x .620 O.D.

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

20

Lock Washer

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0257

21

Flat Washer

Part# 736-0257 (Superseded to 936-0179)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

736-0275

22

Flat Washer 5/16

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

736-3019

23

Flat Washer

Part# 736-3019

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.33

738-0145

24

Shoulder Screw

Part# 738-0145 (Superseded to 938-0145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

738-0183

25

Shoulder Screw

Part# 738-0183 (Superseded to 938-0183)

OEM Warranty Repair Part for White Outdoor

Not available

738-0958

26

Shoulder Spacer

Part# 738-0958 (Superseded to 938-0958)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

783-0435

27

Upper Deck Link

Part# 783-0435

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

LINK-UPPER DECK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

LINK-UPPER DECK

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

SEARS RED (0721)

LINK-UPPER DECK

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Not available

CRAFTSMAN RED (4044)

LINK-UPPER DECK

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Not available

783-0437

28

Axle Bracket: Rear

Part# 783-0437

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-REAR AXLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET-REAR AXLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

SEARS RED (0721)

BRACKET-REAR AXLE

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Not available

CRAFTSMAN RED (4044)

BRACKET-REAR AXLE

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Not available

783-0440

29

Lower Link

Part# 783-0440

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

LINK-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available
