LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001)

27" Rear-Engine Riding Mower

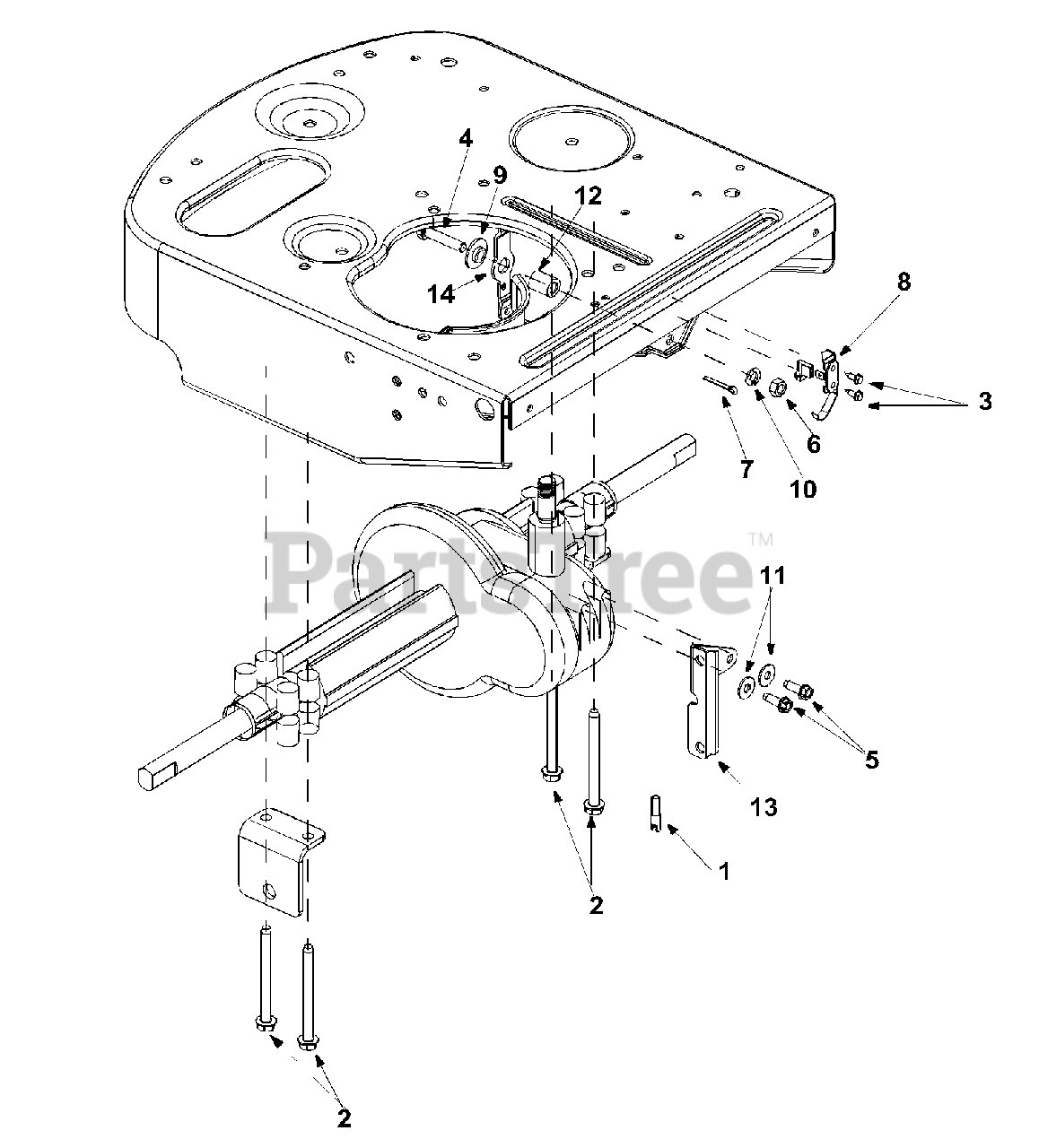

LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2001) > Parts Diagrams (15) > Transaxle Brackets

  • Title
629-0865

1

Harness Assembly Adapter

Part# 629-0865

OEM Warranty Repair Part for White Outdoor

Not available

710-1208

2

Hex TT Screw 5/16-18 x 3.50

Part# 710-1208

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-0227

3

Hex Washer Head Self-Tap.Screw

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0805

4

Hex Screw 5/16-18 x 1.5 Gr. 5

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0642

5

Thd. Forming Scr. 1/4-20x .75

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

712-3010

6

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0115

7

Cotter Pin

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

726-0320

8

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

736-0289

9

Shoulder Bushing

Part# 736-0289 (Superseded to 936-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0119

10

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0173

11

Flat Washer .28 I.D. x .74 O.D. x .083

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

750-1064

12

Spacer

Part# 750-1064 (Superseded to 950-1064)

OEM Warranty Repair Part for White Outdoor

Not available

783-0591

13

Transaxle Bracket

Part# 783-0591

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TRANSAXLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0433A

14

Shift Lever

Part# 783-0433A

OEM Warranty Repair Part for White Outdoor

Not available
