LR-927 (13A-328-190) - White Outdoor 27" Rear-Engine Riding Mower (2002) Fuel Tank & General Assembly Parts Diagram

27" Rear-Engine Riding Mower

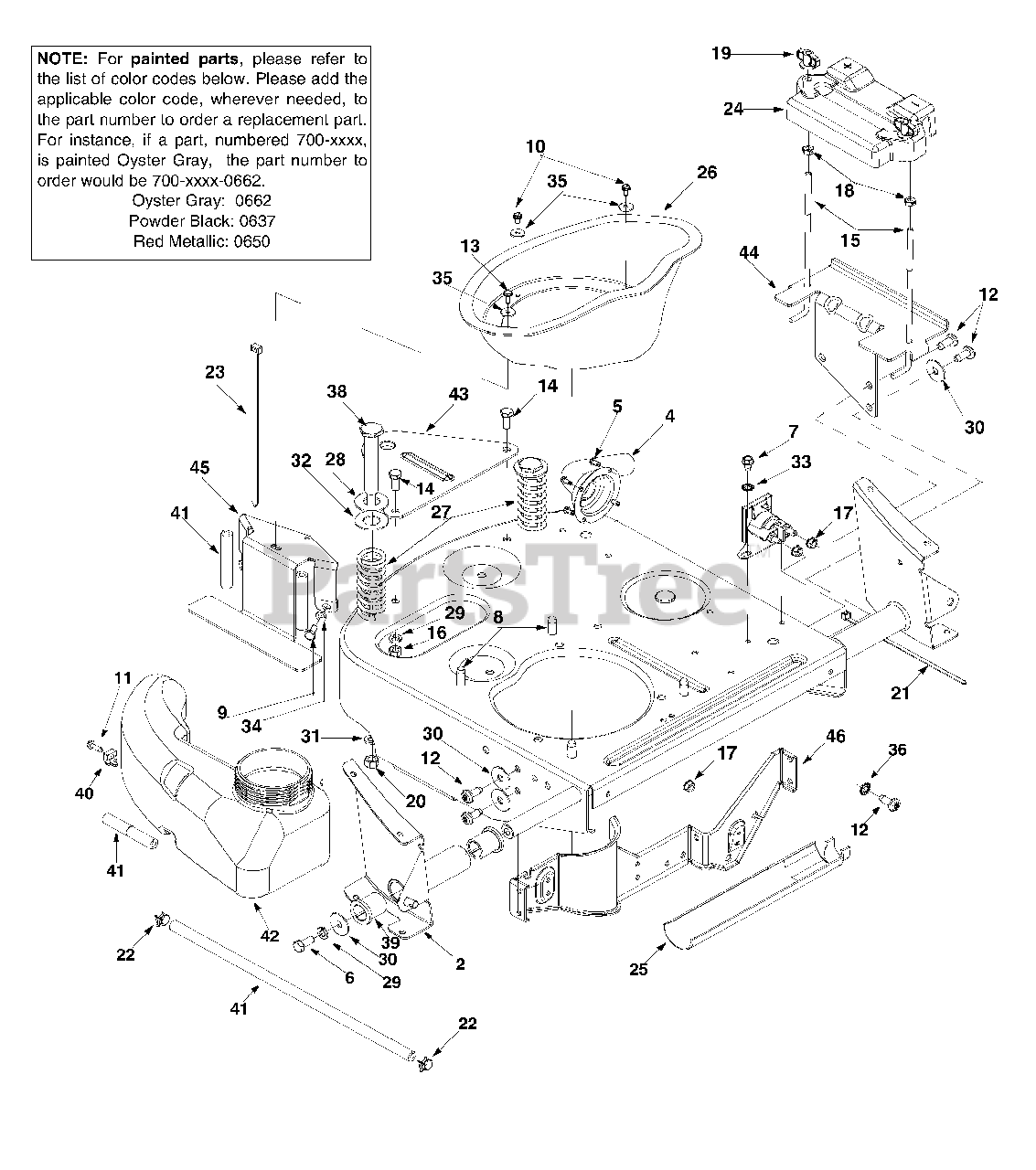

Fuel Tank & General Assembly Parts Diagram

  • Title

?1

White Outdoor 683-0149B

Frame Assembly

Variations

White Outdoor 683-0149B-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0149B-0648

FRAME ASSEMBLY - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0149B-0650

Frame: Lower, Red metallic - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0149B-0665

No Longer Available FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

White Outdoor 683-0190A

Frame Rail Support: RH

Variations

White Outdoor 683-0190A-0637

RAIL SUPPORT-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

?3

White Outdoor 683-0191A

Frame Rail Support: LH

Variations

White Outdoor 683-0191A-0637

RAIL SUPPORT-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 683-0192

Muffler Pipe Extension

$

$

Not available

5

White Outdoor 710-0148

Hex Fl. Screw #8-32 x 0.375

$3.99

$

In Stock, Qty 16

0

6

White Outdoor 710-0157

Hex Screw 5/16-24 x .75" Gr.5

$3.99

$

In Stock, Qty 16

0

7

White Outdoor 710-0599

Self-Tapping Screw

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0654A

TT Screw 3/8-16 x 1.0"

$3.99

$

In Stock, only 4 left!

0

9

White Outdoor 710-0751

Hex Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0871

Hex Slot Sems Screw #10-32 x 0.38

$

$

Not available

11

White Outdoor 710-1237

TT Screw #10-32 x 0.625"

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 710-1611B

TT Screw 5/16-18 x 0.75"

$6.49

$

In Stock, only 2 left!

0

13

White Outdoor 710-1653

Machine Screw #10-32 x 0.5"
(Superseded to 710-0899A)

$6.49

$

Usually ships in 3-6 days

0

14

White Outdoor 710-3008

Hex Screw 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 711-0222A

Battery Hold-Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

16

White Outdoor 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

18

White Outdoor 712-0291

Lock Nut 1/4-20

$4.49

$

In Stock, Qty 9

0

19

White Outdoor 712-0397

Wing Nut with Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-3017

Hex Nut

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

22

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

24

White Outdoor 731-0708

Battery Cover

$

$

Not available

25

White Outdoor 731-1682A

Oil Drain Sleeve

$7.49

$

In Stock, Qty 10

0

26

White Outdoor 731-1945A

Engine Duct

$

$

Not available

27

White Outdoor 732-3080A

Compression Spring

$12.99

$

In Stock, Qty 20+

0

28

White Outdoor 735-0273

Rubber Washer

$8.49

$

Usually ships in 3-6 days

0

29

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0123

Flat Washer
(Superseded to 936-0123)

$5.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0169

Lock Washer

$3.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0188

Flat Washer

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0222

Lock Washer

$5.49

$

In Stock, only 3 left!

0

34

White Outdoor 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

35

White Outdoor 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

36

White Outdoor 736-0607

Lock Washer

$3.99

$

In Stock, Qty 20+

0

?37

737-0169

Motor Oil

$

$

Not available

38

White Outdoor 738-0960

Shoulder Screw

$16.99

$

Usually ships in 3-6 days

0

39

White Outdoor 741-0516

Flange Bearing
(Superseded to 741-0516B)

$5.99

$

In Stock, Qty 20+

0

40

White Outdoor 751B213146

Throttle Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

41

751-0535

Fuel Line Hose

$

$

Not available

42

White Outdoor 751-0656

Fuel Tank

$

$

Not available

43

White Outdoor 783-0561

Hitch Plate
(Superseded to 783-0561A-0637)

Variations

White Outdoor 783-0561-0637

Hitch Plate - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

44

White Outdoor 783-0624

Battery Bracket

Variations

White Outdoor 783-0624-0637

BRACKET-BATTERY - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 783-0630C

Fuel Tank Bracket

Variations

White Outdoor 783-0630C-0637

No Longer Available BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 783-0809B

Transaxle Support Bracket

Variations

White Outdoor 783-0809B-0637

BRACKET-TRANS SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

47

White Outdoor 725-1698

Battery
(Superseded to 753-0607)

Note: (Not shown)

$170.99

$

Usually ships in 3-6 days

0
