LR-927 (13A-344-190) - White Outdoor 27" Rear-Engine Riding Mower (2003) Wheels Parts Diagram

27" Rear-Engine Riding Mower

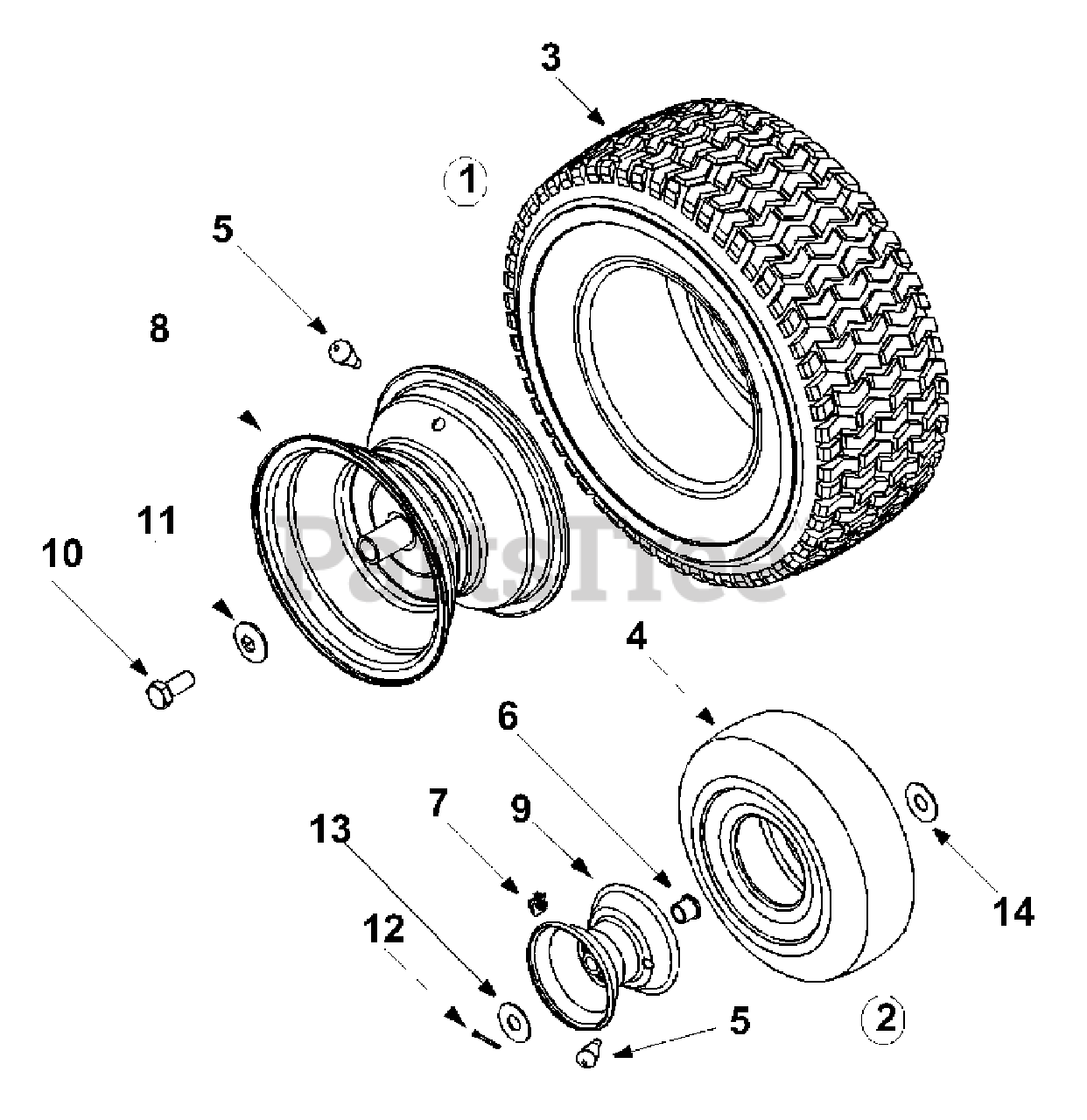

Wheels Parts Diagram

  • Title

1

White Outdoor 634-0139

Rear Wheel Compl.

Variations

White Outdoor 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$339.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0139-0931

WHEEL ASS'Y-COMP - Carlisle Beige (0931)

$339.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0139-0961

WHEEL ASS'Y-COMP - Carlisle Gray (0961)

$115.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0139-0941

WHEEL ASS'Y-COMP - Carlisle Yellow (0941)

$315.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0139-0976

WHEEL ASS'Y-COMP - Kenda Yellow (0976)

$315.99

$

Usually ships in 3-6 days

0

$275.99

$

Usually ships in 3-6 days

0

2

White Outdoor 634-0169A

Front Wheel Compl.
(Superseded to 634-0147)

Variations

White Outdoor 634-0169A-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0169A-0921

Wheel Assembly, Complete - Carlisle White (0921)

$

$

Not available

White Outdoor 634-0169A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0169A-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0169A-0971

Wheel Assembly, Complete - Carlisle Yellow (0971)

$

$

Not available

$

$

3

White Outdoor 734-1727

Rear Tire

$60.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-1382

Front Tire
(Superseded to 734-1382-0901)

Variations

White Outdoor 734-1382-0901

Tire, 11 X 4 X 4 - Carlisle (0901)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1382-0902

Tire, 11 X 4 X 4 - Dico (0902)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

5

White Outdoor 734-0255

Valve: Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 737-0211A

Grease Fitting

$11.99

$

Usually ships in 3-6 days

0

7

White Outdoor 741-0353

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

8

White Outdoor 634-0138

Rim Assembly

Variations

White Outdoor 634-0138-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0138-0662

RIM-WHEEL 8 X 5 - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0138-0674

RIM-WHEEL 8 X 5 - YARDMAN YELLOW (0674)

$

$

Not available

$150.99

$

Usually ships in 3-6 days

0

9

White Outdoor 634-0170A

Rim Assembly
(Superseded to 634-0147)

Variations

White Outdoor 634-0170A-0662

Wheel Assembly, Complete - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0170A-0674

No Longer Available RIM ASM YM YELLOW - YARDMAN YELLOW (0674)

$

$

Not available

$

$

10

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0242

Beleville Washer

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 714-0115

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 736-0285

Flat Washer

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0156

Flat Washer

$4.99

$

In Stock, Qty 11

0

15

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

Note: (not shown)

$6.99

$

In Stock, Qty 20+

0
