LRE 5550 (UT-03834) - Homelite Generator Governor Parts Diagram

Generator

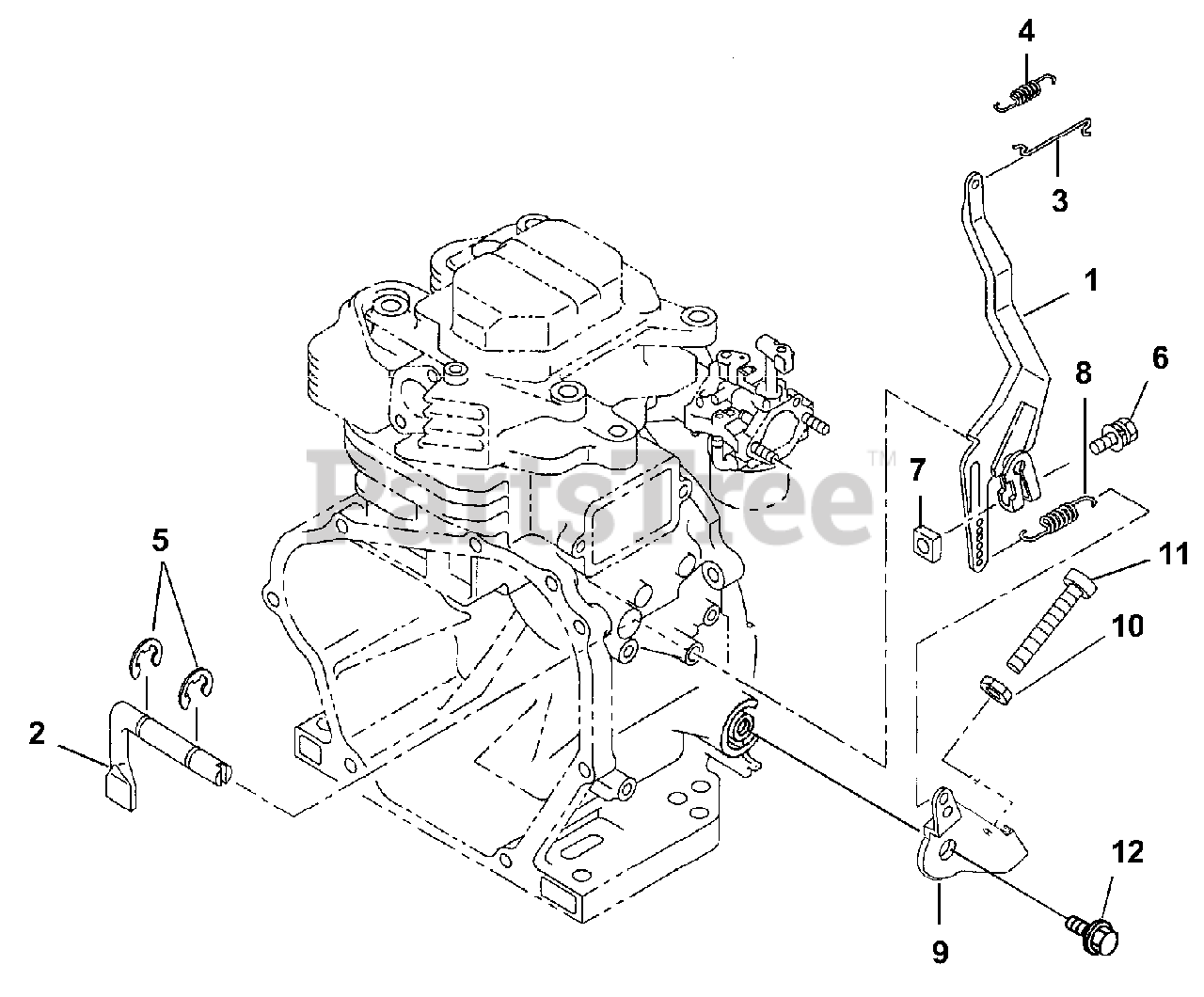

Governor Parts Diagram

  • Title

1

Homelite UP05363

Governor lever

Note: Robin P/N 246-42301-11

$

$

Not available

2

Homelite UP05364

Governor shaft

Note: Robin P/N 246-42201-23

$

$

Not available

3

Homelite UP03290

Governor rod

Note: Robin P/N 234-42701-01

$

$

Not available

4

Homelite UP05365

Rod spring

Note: Robin P/N 246-42801-13

$

$

Not available

5

Homelite UP03292

Clip

Note: Robin P/N 003-13060-00

$

$

Not available

6

Homelite UP03293

Bolt and Washer AY

Note: Robin P/N 001-14062-50

$

$

Not available

7

Homelite UP03294

Nut

Note: Robin P/N 018-60600-20

$

$

Not available

8

Homelite UP05366

Governor spring

Note: Robin P/N 246-42501-23

$

$

Not available

9

Homelite UP05367

Speed control lever

Note: Robin P/N 246-43310-03

$

$

Not available

10

Homelite UP04500

Nut

Note: Robin P/N 002-17050-00

$

$

Not available

11

Homelite UP05368

Screw, panhead

Note: Torque Specs 65 - 80 in/lbs (7.3 - 9.0 Nm); Robin P/N 004-31053-50

$

$

Not available

12

Homelite UP03353

Bolt & Washer

Note: Robin P/N 001-10081-60

$

$

Not available
