LRE730GKA48DA3 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 417930746 & Above) (Rev B) (2025) Caster Wheel and Fork Assembly Parts Diagram
48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

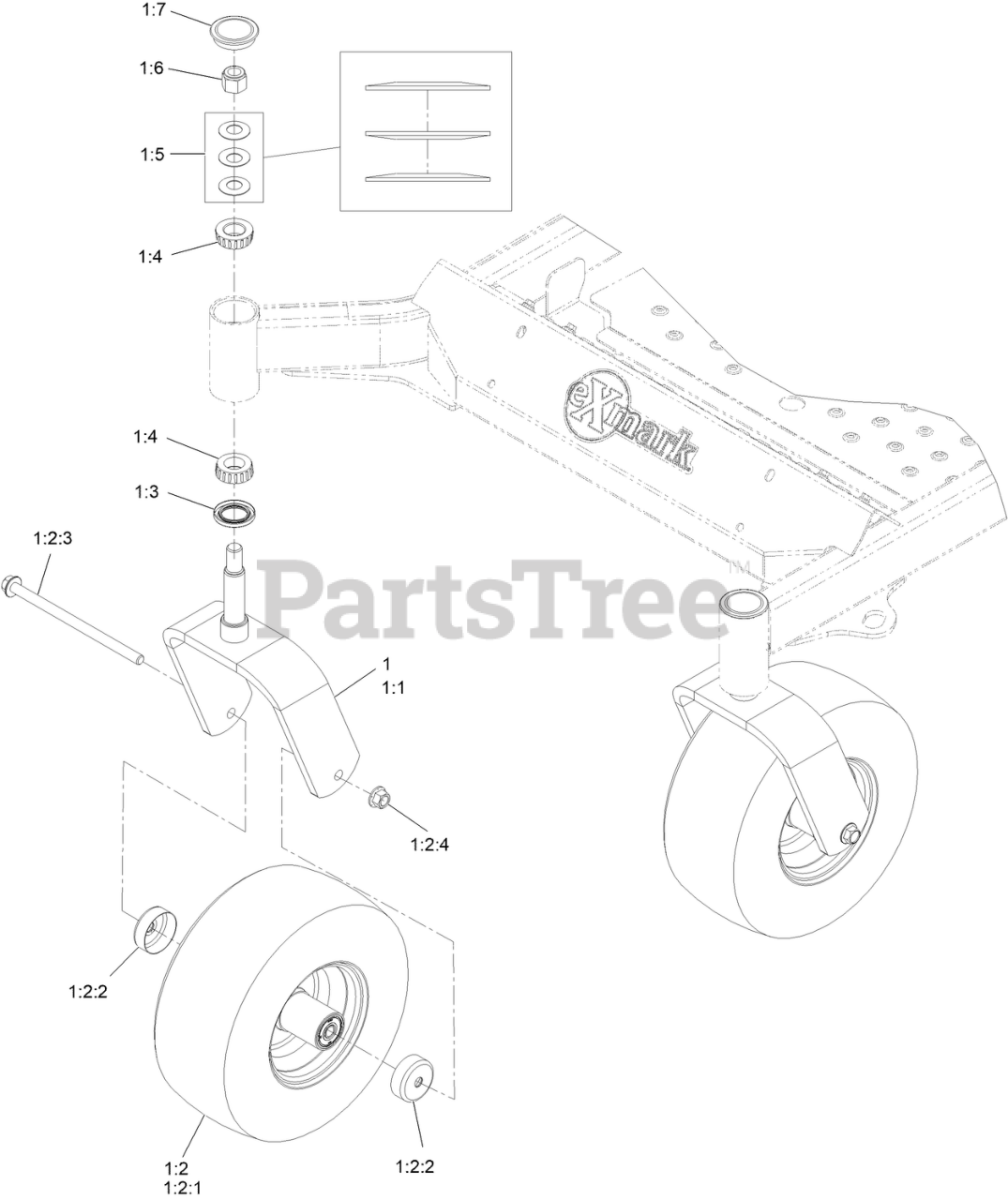

Caster Wheel and Fork Assembly Parts Diagram
1
ASM, Caster W/Fork
Note: Not serviced separately
$
$
Not available
Exmark 146-2794-01
WELD, CASTER FORK
$103.99
$
In Stock, only 4 left!
Exmark 146-4188
ASM-Wheel Brgs Axle
13X6.50-6
$205.99
$
In Stock, only 2 left!
Exmark 146-3846
ASM-WHEEL AND BRGS, 13X6.5-6
$175.99
$
In Stock, Qty 6
Exmark 135-3218
GUARD, SEAL
$6.49
$
In Stock, only 2 left!
Exmark 147-2939
SCREW-HHF
$6.49
$
Usually ships in 3-6 days
Exmark 99-5107
Nut-Lock 1/2-13
$2.49
$
In Stock, Qty 15
Exmark 116-5647
SEAL-GREASE
$6.49
$
In Stock, Qty 20+
Exmark 1-543509
Cone-Bearing Tapered Roller
$15.99
$
In Stock, Qty 20+
Exmark 1-633508
WASHER-BELLVILLE
$3.99
$
In Stock, Qty 20+
Exmark 3296-51
NUT-LOCK, NI
$6.99
$
In Stock, only 2 left!
Exmark 103-4882
CAP-GREASE
$8.49
$
In Stock, Qty 20+
