Exmark LRE730GKA48DA3 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 417930746 & Above) (Rev B) (2025) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 139-5872

BEARING-FLANGE

$1.99

$

In Stock, Qty 7

2

Exmark 146-3561

PLATE, HOC BACKER

$1.49

$

Usually ships in 0 days

3

Exmark 3230-22

SCREW-CARR

(Superseded to 3230-22) 

$2.49

$

In Stock, only 3 left!

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

5

Exmark 146-3194

ASM, HOC Index W/ Decal

$43.99

$

Usually ships in 0 days

5:2

Exmark 146-3140

Decal-Height Of Cut

$13.99

$

Usually ships in 0 days

6

Exmark 146-3077-03

Weld, Rear Cross Shaft

$60.99

$

Usually ships in 0 days

7

Exmark 146-3081-03

Strap, Lift

$

Currently unavailable 

8

Exmark 146-3075-03

Weld, Front Cross Shaft

$84.99

$

Usually ships in 0 days

9

Exmark 126-8877

DECK CHAIN ASM

$14.99

$

Usually ships in 3-6 days

9:1

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 14

9:2

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

9:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

9:4

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

10

Exmark 109-7952

DECK STRUT ASM

$158.99

$

In Stock, Qty 8

10:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

10:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

11

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

12

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

13

Exmark 325-10

SCREW-HH

$5.99

$

In Stock, only 2 left!

14

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

15

Exmark 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 9

16

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 13

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

19

Exmark 126-5401

PIN-HOC

$23.99

$

In Stock, only 2 left!

20

Exmark 146-3565

Spacer, HOC

$6.49

$

Usually ships in 0 days

21

Exmark 146-3516

BOLT, SHOULDER

$5.99

$

Usually ships in 0 days

23

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

24

Exmark 126-5221

SPACER-STEPPED

$6.99

$

Usually ships in 3-6 days

25

Exmark 146-3082

LATCH, TRANSPORT

$17.99

$

Usually ships in 0 days

26

Exmark 146-2932

GROMMET

$1.49

$

Usually ships in 0 days

27

Exmark 146-2921

Release, Transport

$16.99

$

Usually ships in 0 days

27:1

Exmark 146-2934

Link, Transport Latch

$12.99

$

Usually ships in 0 days

27:2

Exmark 109-8250

GRIP-LEVER

$1.99

$

In Stock, only 3 left!

28

Exmark 142-8484

SPRING, EXTENSION

$1.99

$

Usually ships in 3-6 days

29

Exmark 142-7786

SCREW-SHOULDER HHF

$5.49

$

Usually ships in 3-6 days

30

Exmark 142-7784

NUT-HF, NI

$3.99

$

Usually ships in 3-6 days

31

Exmark 116-0886

SPRING-EXTENSION

$149.99

$

In Stock, only 1 left!

32

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, Qty 8

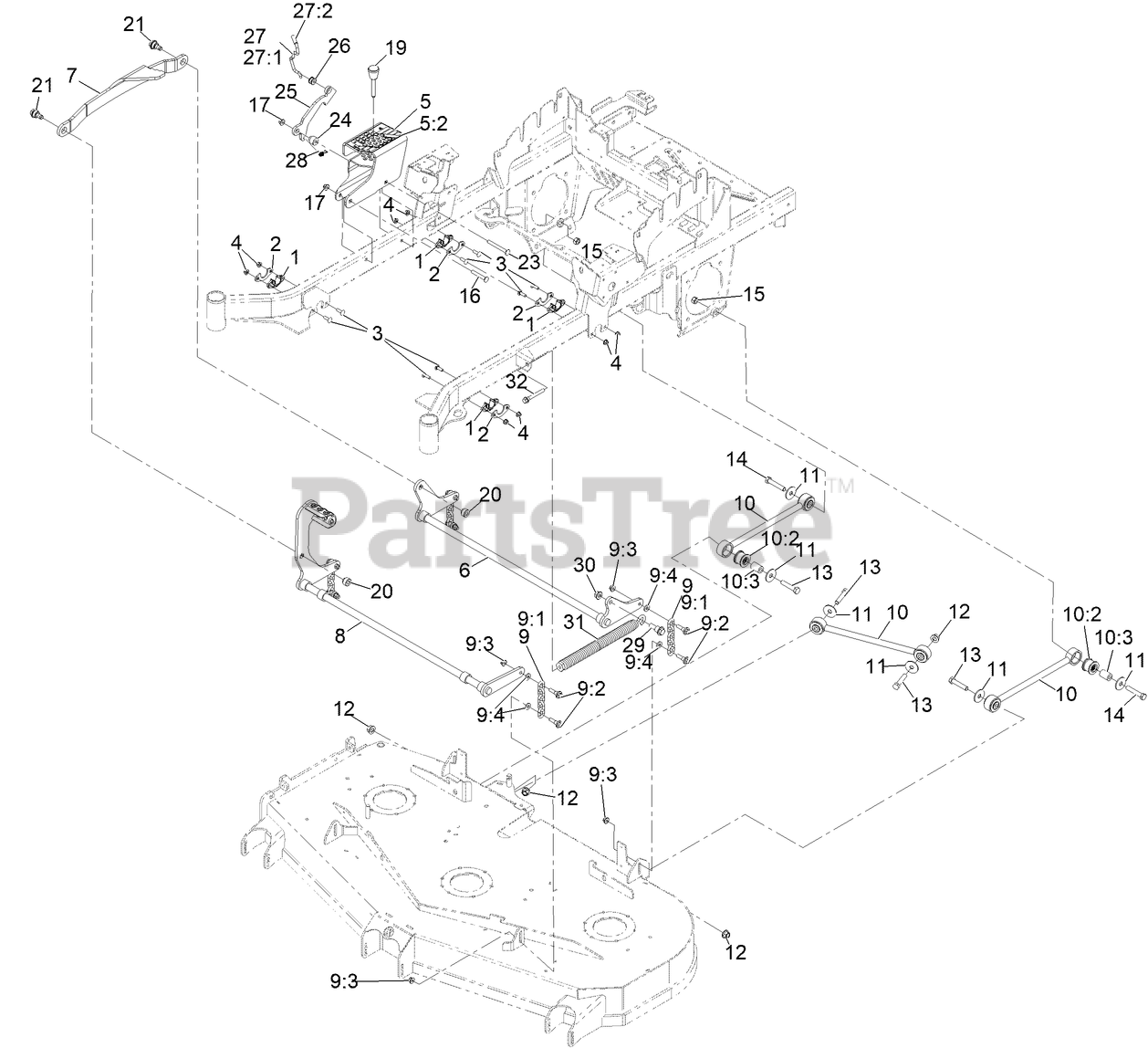

LRE730GKA48DA3 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 417930746 & Above) (Rev B) (2025) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
