LRE730GKA48DA3 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 417930746 & Above) (Rev B) (2025) Electrical Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

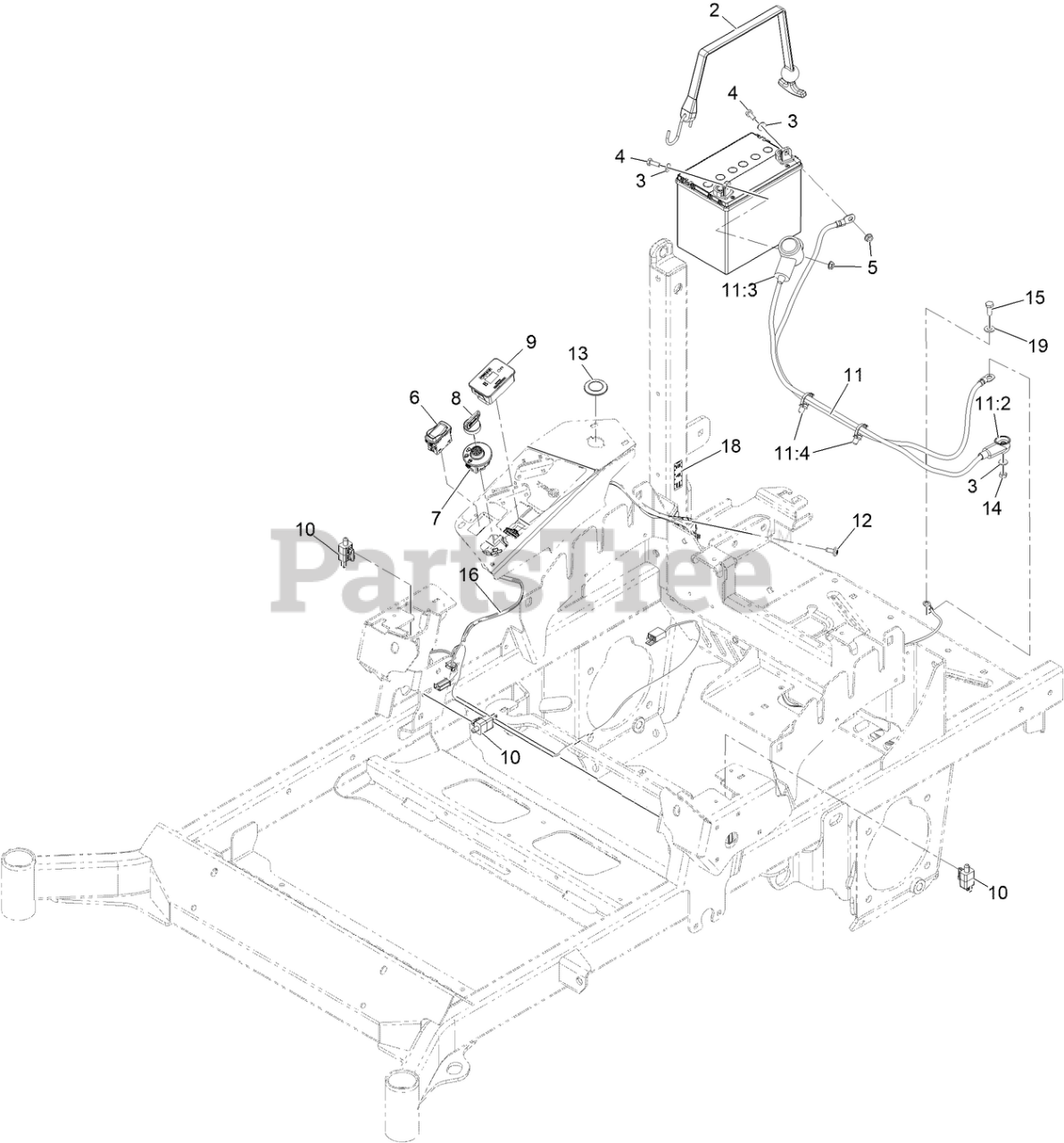

Electrical Assembly Parts Diagram

  • Title

2

Exmark 142-8697

STRAP, BUNGEE

$10.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

4

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

6

Exmark 139-6368

SWITCH-ROCKER, ON-NONE-ON

$36.99

$

In Stock, Qty 12

0

7

Exmark 137-4100

SWITCH-IGNITION

$29.99

$

In Stock, Qty 20+

0

8

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

9

Exmark 116-5609

MODULE ASM

$176.99

$

In Stock, only 1 left!

0

10

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

11

Exmark 146-3694

HARNESS-BATTERY

$83.99

$

Usually ships in 0 days

0

11:2

Exmark 32180-525

Insulator-Terminal, Red

$1.99

$

Usually ships in 0 days

0

11:3

Exmark 32181-025

Insulator-Terminal, Red

$2.49

$

Usually ships in 0 days

0

11:4

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

12

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 146-4615

PLUG

$2.49

$

Usually ships in 0 days

0

14

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

15

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 9

0

16

Exmark 146-2992

Harness-Main

$412.99

$

Usually ships in 0 days

0

18

Exmark 146-3808

DECAL-FUSE

$2.99

$

Usually ships in 0 days

0

19

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0
