LRE921GKA604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V (SN: 417930746 & Above) (Rev A) (2025) LH Motion Control Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V

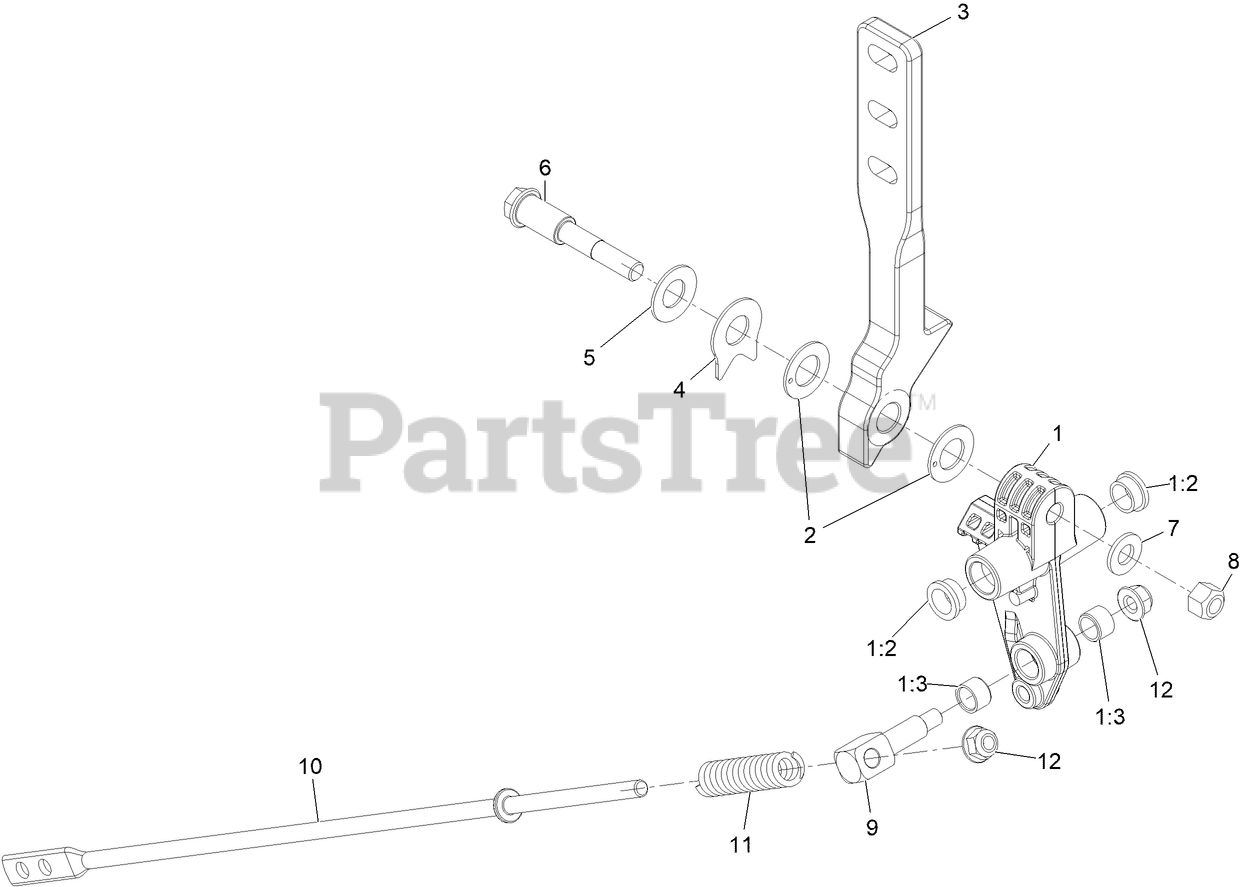

LH Motion Control Assembly Parts Diagram

  • Title

1

Exmark 126-3773

CONTROL ARM ASM

$42.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-8909

BUSHING

$2.99

$

In Stock, Qty 20+

0

1:3

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 12

0

2

Exmark 126-7296

WASHER-FRICTION

$17.99

$

In Stock, only 1 left!

0

3

Exmark 146-2753

Lever, Motion Control

$42.99

$

Usually ships in 0 days

0

4

Exmark 142-8478

Spacer, Anti-Rotation

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 6

0

6

Exmark 142-5951

Bolt-Pivot

$4.99

$

Usually ships in 0 days

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 3 left!

0

9

Exmark 126-5434

SWIVEL

$6.99

$

Usually ships in 3-6 days

0

10

Exmark 146-3348

Link, Motion Control

$9.49

$

Usually ships in 0 days

0

11

Exmark 146-3242

Spring, Compression

$1.49

$

Usually ships in 0 days

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0
