LRE921GKA604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V (SN: 417930746 & Above) (Rev A) (2025) Main Frame Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V

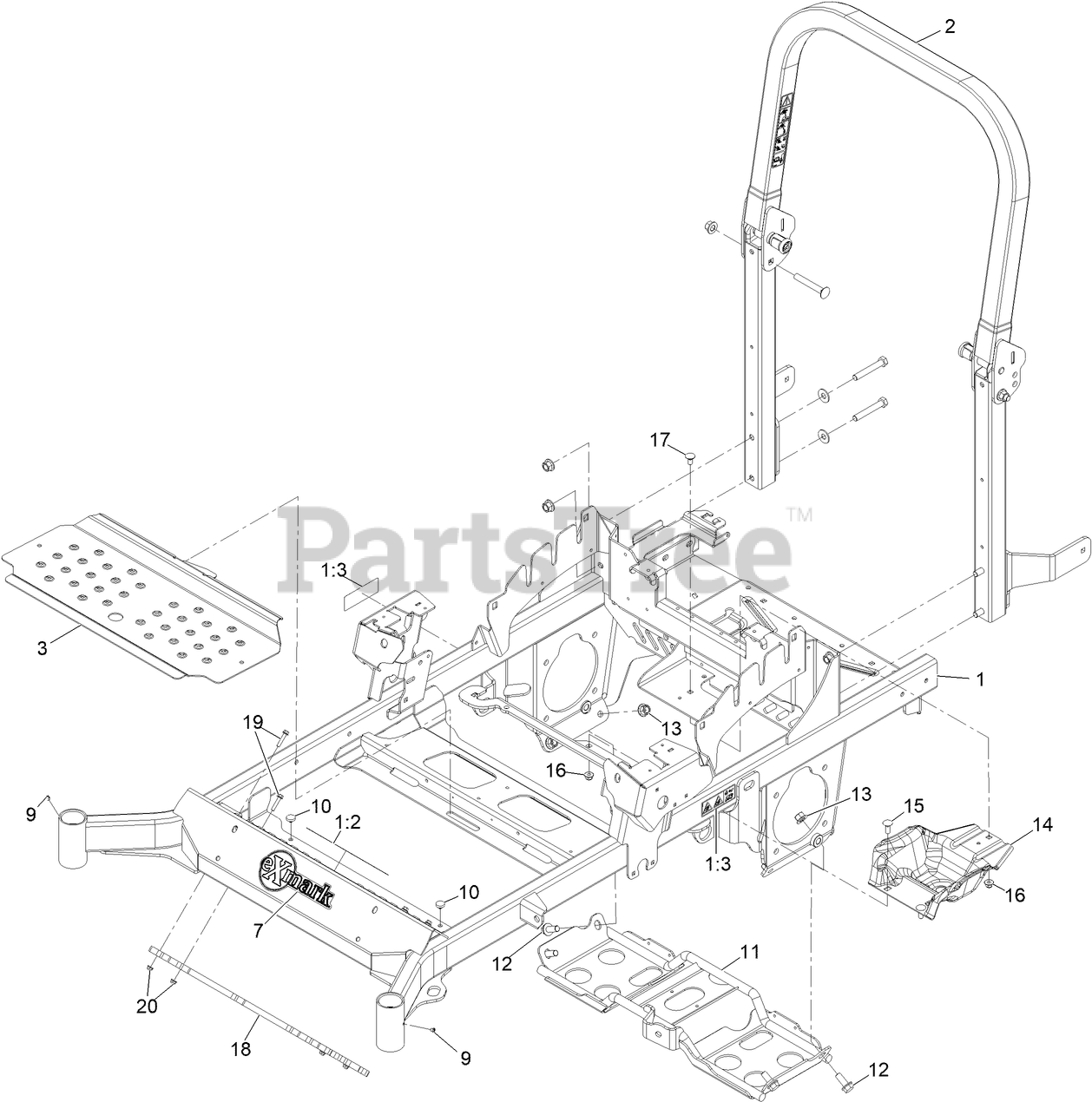

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 146-5932

Mainframe Service ASM

$

$

Currently unavailable

1:2

Exmark 132-0871

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

2

Exmark 146-1715

ASM, ROPS

$487.99

$

Usually ships in 3-6 days

0

3

Exmark 146-1567-01

Pan, Floor

$55.99

$

Usually ships in 3-6 days

0

7

Exmark 135-2274

DECAL-EXMARK

$28.99

$

In Stock, only 2 left!

0

9

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

10

Exmark 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

11

Exmark 146-5534-03

Weld, Skid Plate

$162.99

$

Usually ships in 3-6 days

0

12

Exmark 3234-38

SCREW-HHF

$6.99

$

In Stock, only 3 left!

0

13

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

14

Exmark 146-5256-01

Guard-Sump

$

$

Currently unavailable

15

Exmark 143-2561

Screw-CARR

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

18

Exmark 146-3739-01

Weight-Toe Board

$137.99

$

Usually ships in 3-6 days

0

19

Exmark 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
