LRH 125 (954000622-B) - Husqvarna Lawn Tractor (1994-01) Engine Parts Diagram

Lawn Tractor

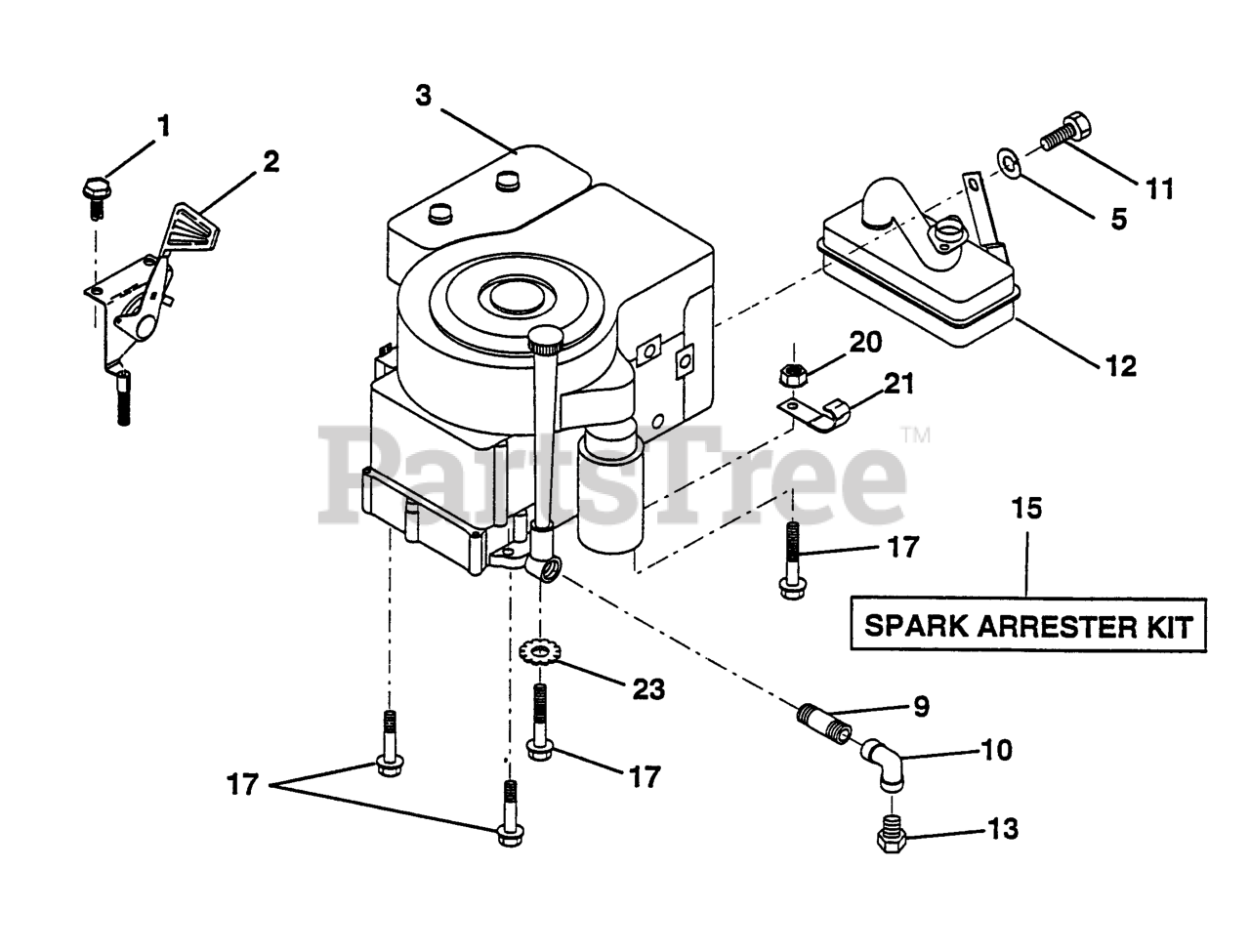

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

SCREW

$

$

Not available

2

Husqvarna 532132752

CONTROL.TH/CH.RH.BLK.FLG.26

$

$

Not available

3

Engine, Kohler, 12.5 HP, Model

$

$

Not available

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 813280328

Nipple Pipe

$

$

Not available

10

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$23.99

$

In Stock, Qty 20+

0

11

Husqvarna 874760508

Bolt, Hex, Fin. 5/16 -18 x 1/2

$

$

Not available

12

Husqvarna 532138149

MUFFLER KOH

$

$

Not available

13

Oil Drain Plug

Note: (Order From Eng Mfg)

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: (Optional Equipment)

$203.99

$

In Stock, only 1 left!

0

17

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

20

Husqvarna 873510600

NUT

$

$

Not available

21

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

23

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0
