LRH 125 (954000622-B) - Husqvarna Lawn Tractor (1994-01) Ground Drive Parts Diagram

Lawn Tractor

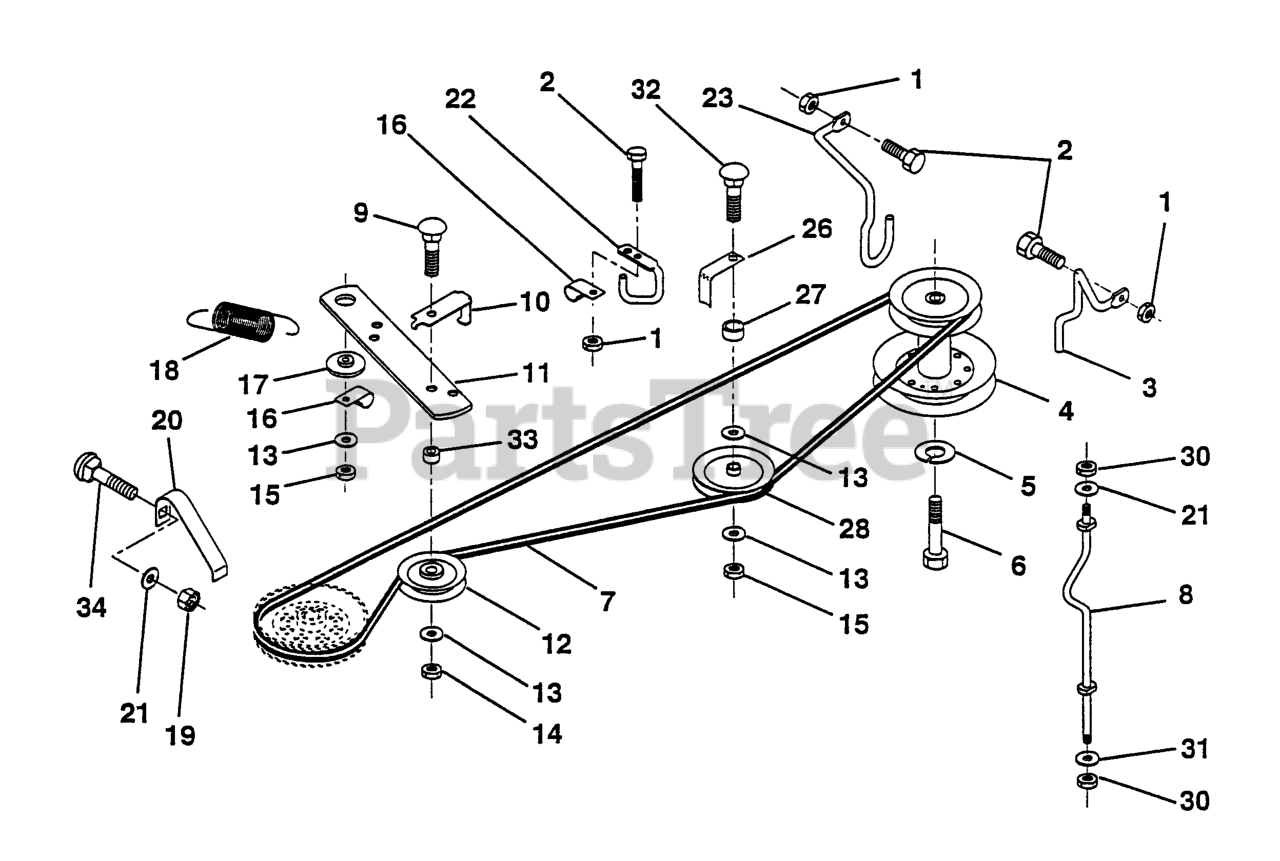

Ground Drive Parts Diagram

  • Title

1

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532140917

KEEPER, BELT

$

$

Not available

4

Husqvarna 532138029

PULLEY.ENGINE.36/38 LR
(Superseded to 532140189)

$

$

Not available

5

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 532138887

BOLT

$

$

Not available

7

Husqvarna 532140910

V-BELT 77.75

$45.99

$

In Stock, only 1 left!

0

8

Husqvarna 532140785

KEEPER

$

$

Not available

9

Husqvarna 872140618

BOLT
(Superseded to 872110618)

$5.99

$

In Stock, Qty 16

0

10

Husqvarna 532140780

KEEPER, BELT

$

$

Not available

11

Husqvarna 532140911

ARM/GROUND DRIVE CLUTCH

$

$

Not available

12

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

15

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

16

Husqvarna 532126472

CLIP INSULATOR

$

$

Not available

17

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 532131459

SPRING.EXTENSION

$

$

Not available

19

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 532140909

KEEPER, BELT

$

$

Not available

21

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 532123404

KEEPER,FRA DR BEL

$

$

Not available

23

Husqvarna 532142240

KEEPER

$

$

Not available

26

Husqvarna 532140913

KEEPER, BELT

$

$

Not available

27

Husqvarna 532140914

SPACER

$

$

Not available

28

Husqvarna 532139123

PULLEY.IDLER.V.

$43.99

$

In Stock, only 4 left!

0

30

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 20+

0

33

Husqvarna 532000160

SPACER NLA

$

$

Not available

34

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0
