LRH 125 (954001222-A) - Husqvarna Lawn Tractor (1994-07) Transaxle Parts Diagram

Lawn Tractor

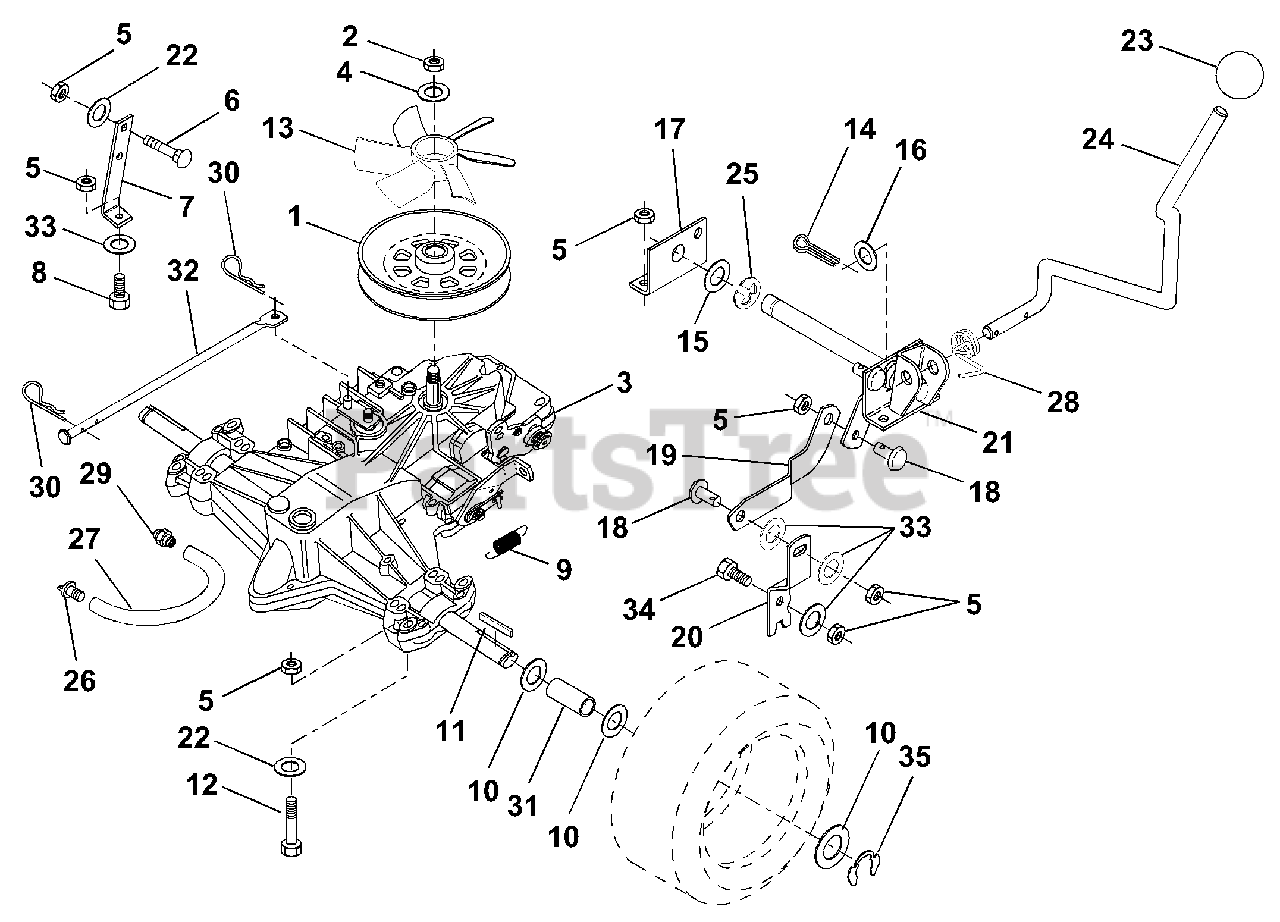

Transaxle Parts Diagram

  • Title

1

Husqvarna 532140779

Pulley

$23.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532009204

Nut Lock 1/2-20 UNF x 3/4 x 7/16

$

$

Not available

3

Husqvarna 532140607

Transaxle, Hydro 0310-0500

$

$

Not available

4

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 873800500

Nut Lock Hex w/Ins. 5/16-18

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532140774

Strap, Torque

$

$

Not available

8

Husqvarna 874760524

Bolt Fin Hex 5/16-18 x 1-1/2
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532110422

Spring Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 874760540

Bolt, Hex Head 5/16-18 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532140778

Fan, Transaxle, Hydro

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819212013

Washer 21/32 x 1-1/4 x 13 Ga.

$

$

Not available

16

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532140763

Support, Shift Handle

$

$

Not available

18

Husqvarna 532140769

Pivot Pin

$

$

Not available

19

Husqvarna 532140767

Link, Shift

$

$

Not available

20

Husqvarna 532140773

Lever, Shift

$

$

Not available

21

Husqvarna 532140764

Pivot Shaft Assembly
(Superseded to 532156047)

$

$

Not available

22

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532140845

Knob, Shifter

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532140765

Rod, Shifter

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 812000002

E-Ring

$7.49

$

In Stock, Qty 11

0

26

Cap, Vent Hose

$

$

Not available

27

Husqvarna 532142564

Hose, Vent

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532140772

Spring, Torsion

$24.99

$

Usually ships in 3-10 days

0

29

Nipple, Vent Hose

$

$

Not available

30

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

31

Husqvarna 532121199

Spacer

$

$

Not available

32

Husqvarna 532140912

Actuator, Bypass, Hydro

$

$

Not available

33

Husqvarna 819111216

Washer 11/32 x 3/4 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 874760516

Bolt Hex Hd. 5/16-18 x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 17

0
