LRH 125 (954001222-C) - Husqvarna Lawn Tractor (1995-03) Seat Parts Diagram

Lawn Tractor

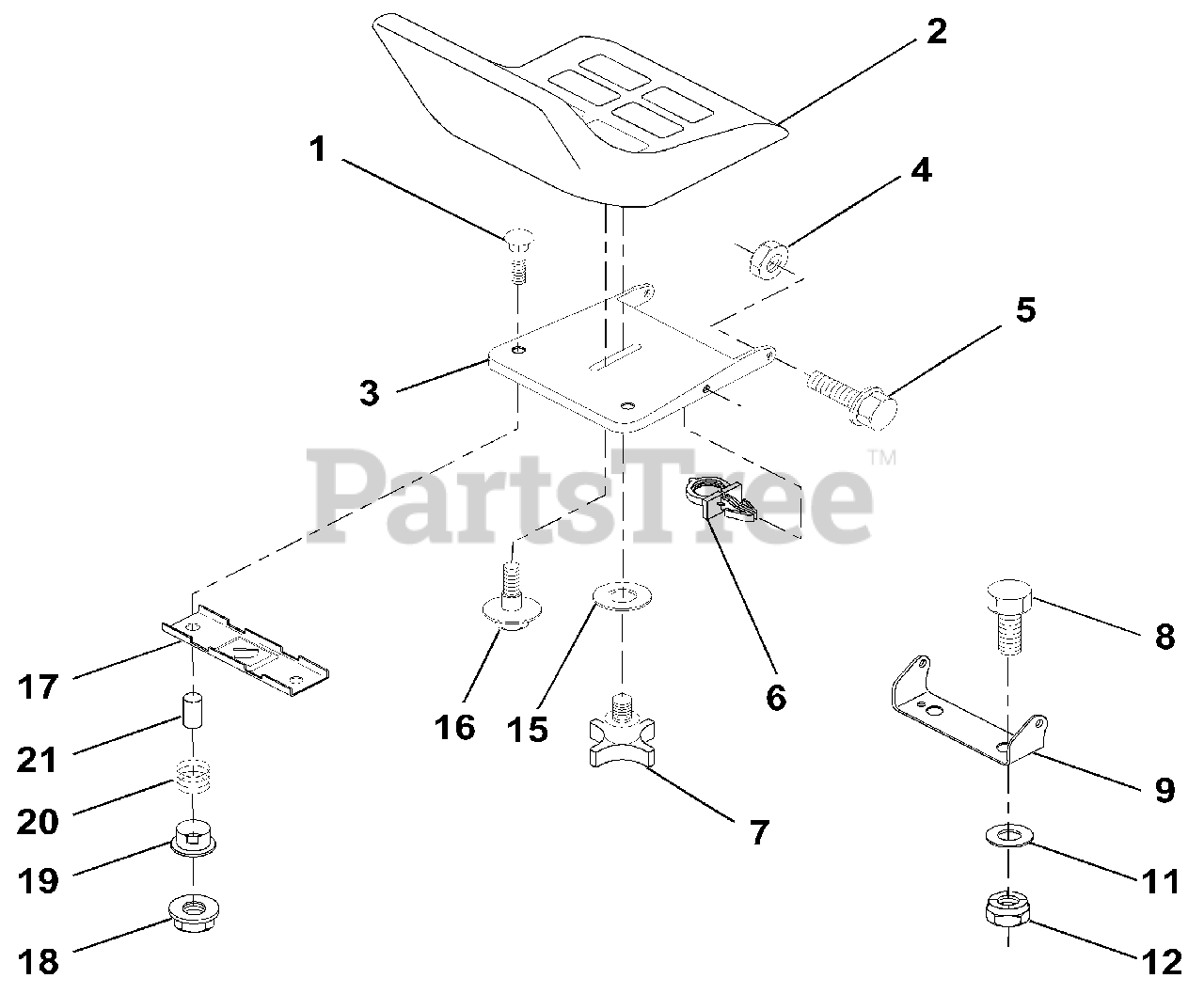

Seat Parts Diagram

  • Title

1

Husqvarna 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Husqvarna 532127398

Seat
(Superseded to 532401042)

$206.99

$

In Stock, only 1 left!

0

3

Husqvarna 532140552

Pan, Sea
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873800500

Nut, Hex, Lock w/wsh 5/16-18

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532139888

Bolt, Shoulder 5/16-18 UNC

$6.49

$

In Stock, Qty 10

0

6

Husqvarna 532145006

Clip, Push-in

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532120068

Knob, Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

8

Husqvarna 874760616

Bolt, Hex, Fin. 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532140551

Bracket, Pivot, Seat

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 819133210

Washer 12/32 x 2 x 10 Gauge
(Superseded to 532413524)

$

$

Not available

12

Husqvarna 873800600

Nut, Hex, Lock Hex w/wsh 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Gauge

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532121246

Bracket, Switch Mounting
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

18

Husqvarna 532123976

Nut, Hex, Large, Flange Lock
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532134300

Spacer, Split, Large .28 Id. x .96

$7.49

$

In Stock, only 1 left!

0
