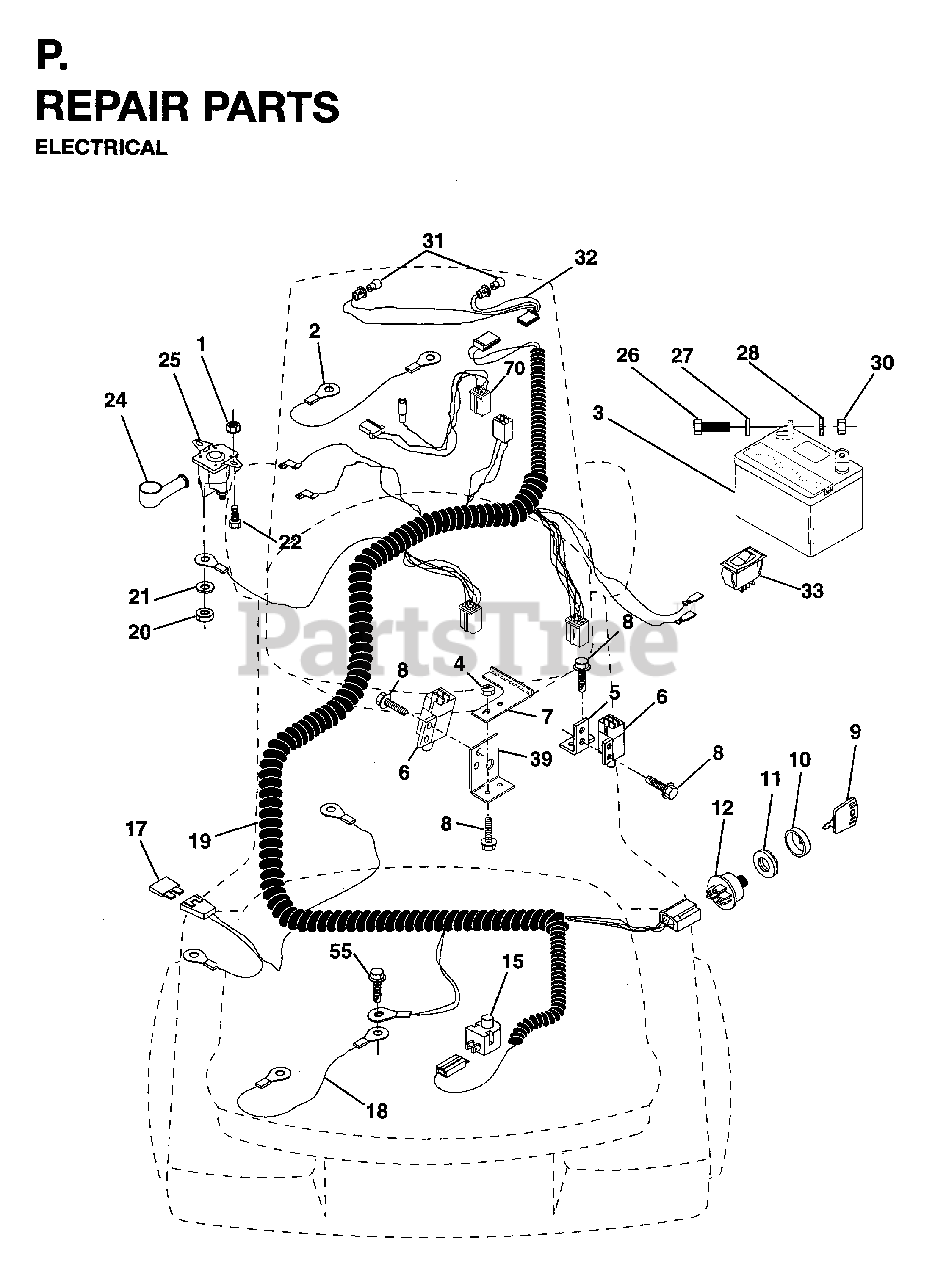

LRH 13 (954003421) - Jonsered Rear-Engine Riding Mower (1996-01) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 532108423

CABLE ASM

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 532146138

BATTERY
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

4

Jonsered 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

5

Jonsered 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

6

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

7

Jonsered 532146374

KEEPER, ACTUAT. L.R.

$

$

Not available

8

Jonsered 817021008

SCREW

$4.99

$

In Stock, Qty 20+

0

9

Jonsered 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

10

Jonsered 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532145774

KIT-WASHER/NUT

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 532145499

SWITCH KIT, IGN.
(Superseded to 532154855)

$67.99

$

In Stock, only 3 left!

0

15

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 19

0

17

Jonsered 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532128353

No Description Available

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532146064

HARNESS IGN LR NLA

$

$

Not available

20

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

22

Jonsered 874780408

BOLT
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

24

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146154

KIT SOLENOID .95

$24.99

$

In Stock, Qty 20+

0

26

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

27

Jonsered 734115301

WASHER

$

$

Not available

28

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

30

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532136850

HARNESS LIGHT SOCKET

$

$

Not available

33

Jonsered 532110712

SWITCH LT

$8.99

$

In Stock, Qty 11

0

39

Jonsered 532141735

BRACKET

$2.99

$

Usually ships in 3-10 days

0

55

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140413

HARNESS, ENGINE

$

$

Not available
