LRH 13 - Jonsered Rear-Engine Riding Mower (1998-01) TRANSMISSION Parts Diagram

Rear-Engine Riding Mower

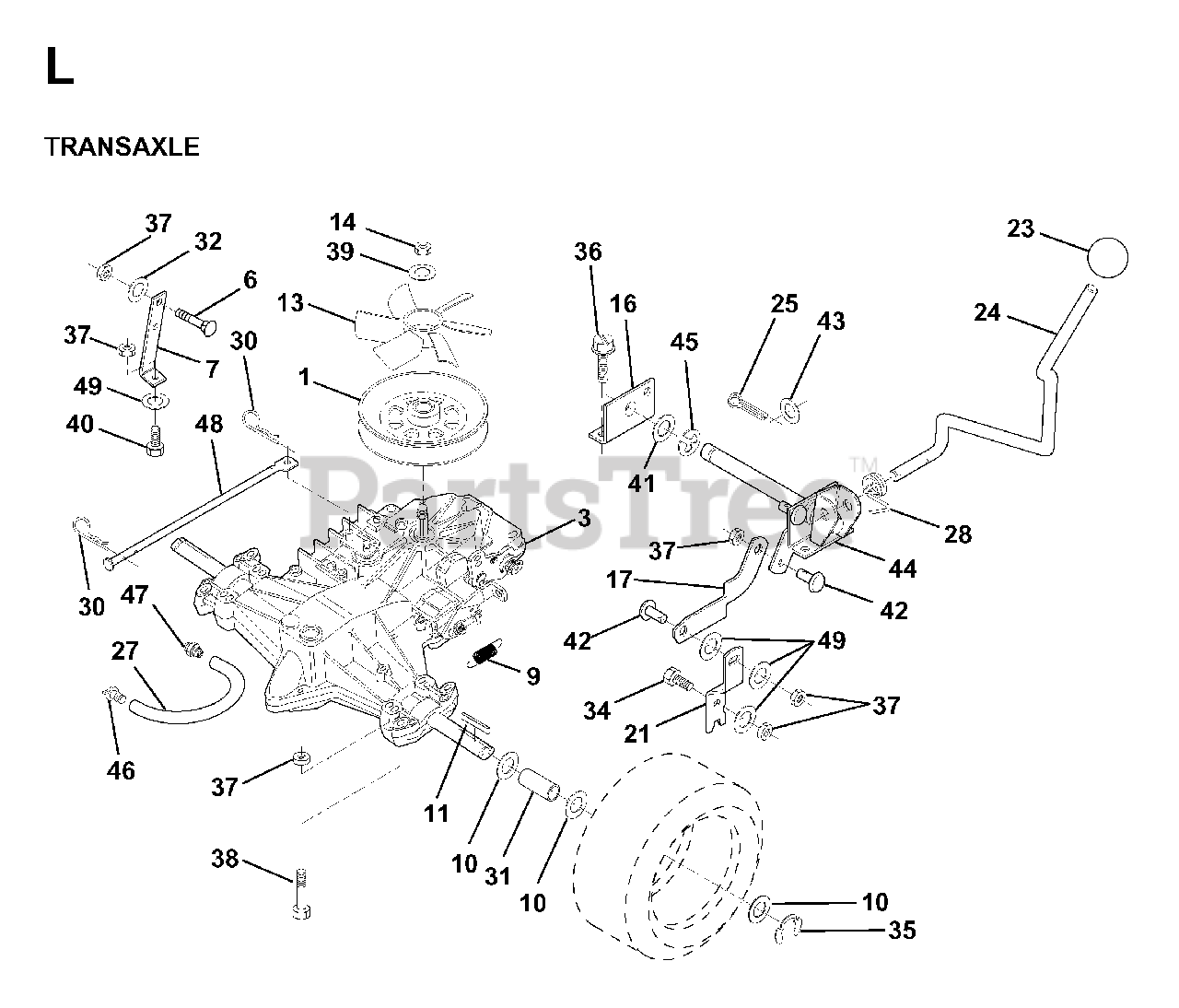

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 532140779

PULLEY

$23.99

$

Usually ships in 3-10 days

0

3

Jonsered 532140607

TRANSAXLE HYDRO
(Superseded to 140607)

$

$

Not available

6

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532140774

STRAP

$

$

Not available

9

Jonsered 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 3 left!

0

10

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 11

0

13

Jonsered 532140778

FAN.TRANSMISSION.HYDRO.6"

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 873750800

No Description Available

$1.99

$

Usually ships in 3-10 days

0

16

Jonsered 532140763

SUPPORT, SHIFT HANDLE

$

$

Not available

17

Jonsered 532140767

LINK, SHIFT

$

$

Not available

21

Jonsered 532140773

LEVER, SHIFT

$

$

Not available

23

Jonsered 532130564

PISTOL KNOB

$14.99

$

Usually ships in 3-10 days

0

24

Jonsered 532140765

ROD, SHIFTER

$26.99

$

Usually ships in 3-10 days

0

25

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532142564

FUEL LINE

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532140772

SPRING, TORSION

$24.99

$

Usually ships in 3-10 days

0

30

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

31

Jonsered 532121199

SPACER SPLIT

$

$

Not available

32

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

36

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

37

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

38

Jonsered 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 819171912

WASHER

$7.49

$

In Stock, only 2 left!

0

40

Jonsered 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

41

Jonsered 819212013

No Description Available

$

$

Not available

42

Jonsered 532140769

PIN

$

$

Not available

43

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

44

Jonsered 532156047

PIVOT SHAFT

$

$

Not available

45

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, Qty 11

0

48

Jonsered 532140912

ACTUACTOR
(Superseded to 140912)

$

$

Not available

49

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0
