LRI 2500 (UT-03777-A) - Homelite Generator Control Panel Parts Diagram

Generator

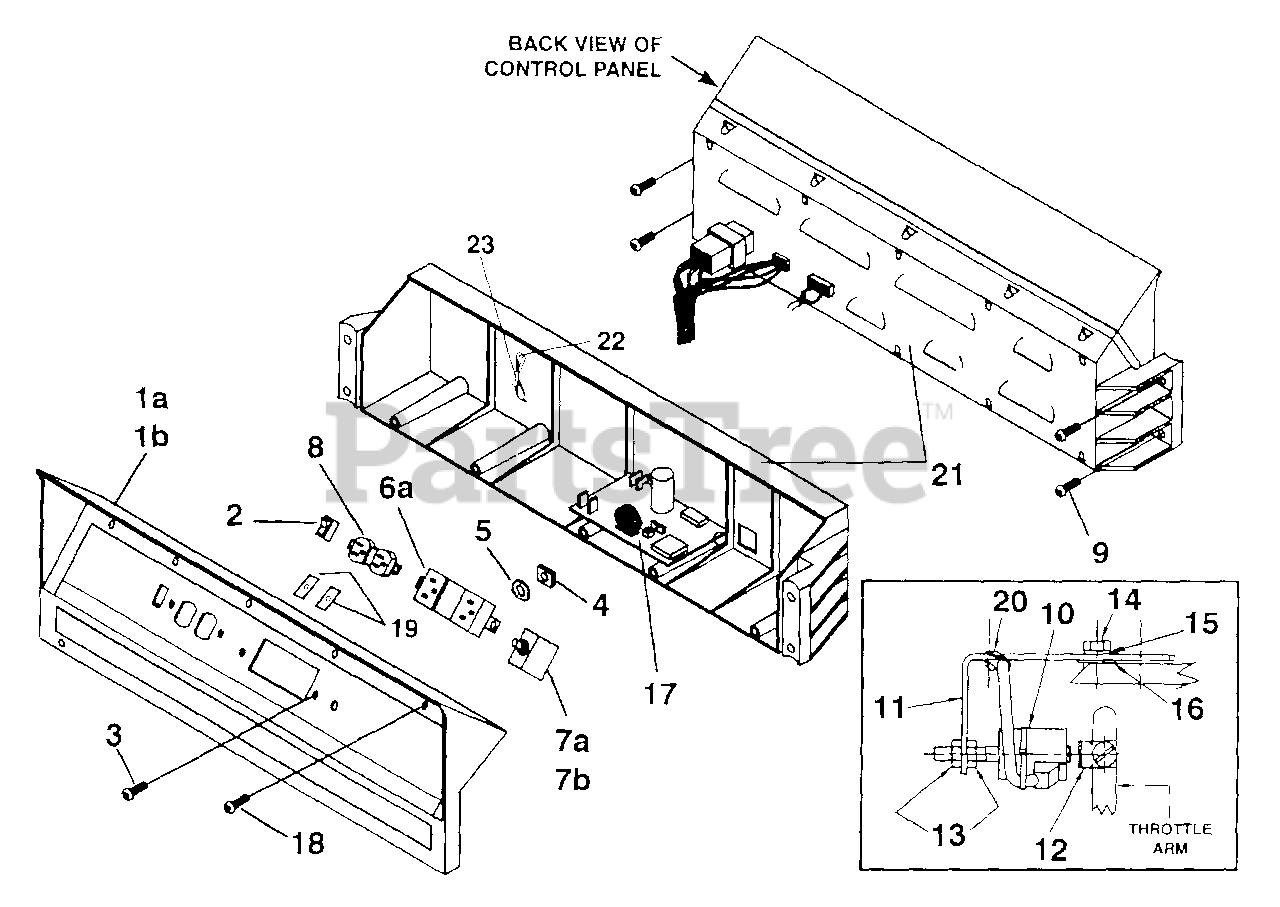

Control Panel Parts Diagram

  • Title

1A

Homelite A07102A

CONTROL PANEL (LRI2500)
(Superseded to UP04631)

$

$

Not available

1B

Homelite A07123

CONTROL PANEL (LRI2500/CSA)
(Superseded to UP04631)

$

$

Not available

2

Homelite 02497

SWITCH
(Superseded to 985703001)

$

$

Not available

3

Homelite 80577

SCREW-Pan Hd. (8-32 X 7/8")
(Superseded to UP03389)

$

$

Not available

4

Homelite 81009

NUT-Hex

$

$

Not available

5

Homelite 83022

WASHER-Lock
(Superseded to UP03410)

$

$

Not available

6A

Homelite 04058

RECEPTACLE (GFCI) (LRI2500)

$

$

Not available

?6B

Homelite 04058

RECEPTACLE (GFCI) (LRI2500/CSA)

$

$

Not available

7A

Homelite 49831A

CIRCUIT BREAKER (20 amp) (LRI2500)
(Superseded to UP03489)

$

$

Not available

7B

Homelite 01649A

CIRCUIT BREAKER (15 amp) (LRI2500/CSA)
(Superseded to UP06951)

$

$

Not available

8

Homelite 51373

RECEPTACLE-Duplex (LRI2500) (120V)

$

$

Not available

9

Homelite 96620

SCREW-Torx Hd. (10-24 X 1/2")

$2.99

$

Usually ships in 3-7 days

0

10

Homelite A07062

ELECTROMAGNET
(Superseded to UP05243)

$

$

Not available

11

Homelite 07080A

BRACKET (5HP)
(Superseded to UP03474)

$

$

Not available

12

Homelite 070811

PADDLE (5HP)

$

$

Not available

13

Homelite 810652

NUT-Hex (1/4-28)
(Superseded to UP03514)

$3.49

$

In Stock, only 1 left!

0

14

Homelite 80049

SCREW-Hex Hd. (1/4-20 X 5/8")

$

$

Not available

15

Homelite 83009

WASHER-Lock

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 84006

WASHER-Flat

$

$

Not available

17

Homelite A06257

CONTROL BOARD
(Superseded to UP00087)

Note: NOTE: Remove Jumper for use on 2500

$

$

Not available

18

Homelite 82536

SCREW-Thread Forming (8-16 X 3/4")

$

$

Not available

19

Homelite 98792

BUMPER-Rubber

$1.49

$

In Stock, only 3 left!

0

20

Homelite 04805

TIE-Cable
(Superseded to R44302)

$

$

Not available

21

Homelite 066481

CONTROL PANEL-Back
(Superseded to UP03467)

$

$

Not available

22

Homelite 46840

TIE, Cable

$

$

Not available

23

Homelite 06655

Clip, Tie
(Superseded to UP03468)

$

$

Not available
