LRI 2500 (UT-03799) - Homelite Generator Generator End Parts Diagram

Generator

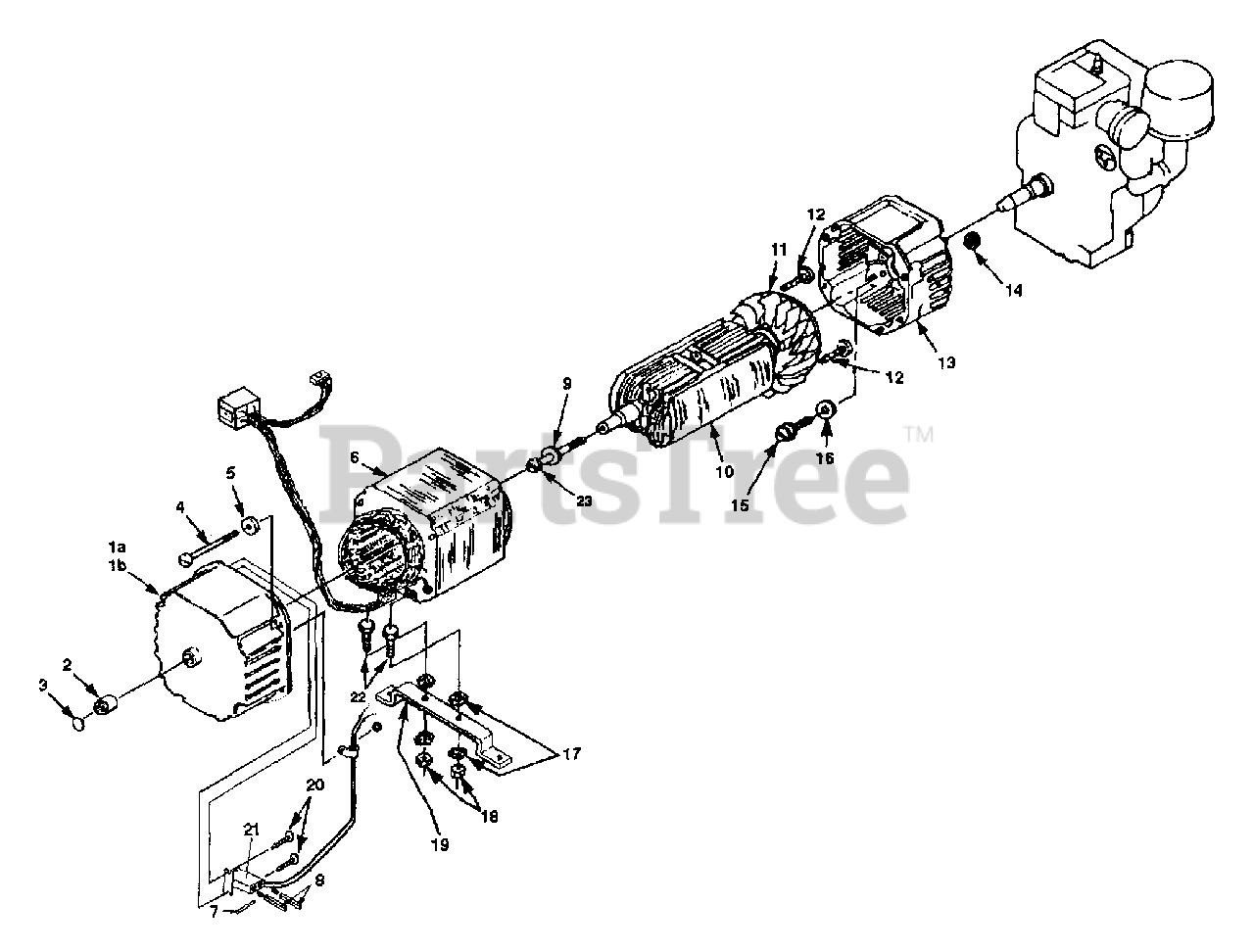

Generator End Parts Diagram

  • Title

1A

Homelite A07068

COMPLETE BRUSH HEAD (LRI2500)
(Superseded to UP03527)

$

$

Not available

1B

Homelite A07124

COMPLETE BRUSH HEAD (LRI2500/CSA)
(Superseded to UP03527)

$

$

Not available

2

Homelite 03044

BEARING-Needle

$

$

Not available

3

Homelite 02438

PLUG-Expansion

$

$

Not available

4

Homelite 4885305

BOLT-Stator

$

$

Not available

5

Homelite 84124

WASHER-Flat (1/4")
(Superseded to UP03418)

$5.99

$

Usually ships in 3-7 days

0

6

Homelite A06772S

STATOR & HARNESS
(Superseded to UP03524)

$619.99

$

Usually ships in 3-7 days

0

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

7

Homelite 02857

PIN

$5.99

$

Usually ships in 3-7 days

0

8

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

9

Homelite 83002

WASHER-Lock (5/16")
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

10

Homelite A02800AS

ROTOR

$

$

Not available

11

Homelite A04013

FAN-Generator
(Superseded to UP03737)

$

$

Not available

12

Homelite 82526

SCREW-Pan Hd. (6-19 X 3/4")

$

$

Not available

13

Homelite 020267

END BELL
(Superseded to UP06695)

$

$

Not available

14

Homelite 81267

NUT-Hex (1/4-20)

$

$

Not available

15

Homelite 80604

SCREW-Hex Hd. (5/16-24 X 3/4")
(Superseded to UP03390)

$

$

Not available

16

Homelite 83081

WASHER-Lock

$

$

Not available

17

Homelite 83033

WASHER-Lock (int./ext.)
(Superseded to 83081)

$

$

Not available

18

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

19

Homelite 028441

BRACKET-Generator Support

$

$

Currently unavailable

20

Homelite 82526

SCREW-Plastite (6-19 X 3/4")

$

$

Not available

21

Homelite 02365

BRUSH HOLDER
(Superseded to UP03449)

$42.99

$

Usually ships in 3-7 days

0

22

Homelite 80083

SCREW-Hex Hd. (5/16-18 X 3/4")

$

$

Not available

23

Homelite 4885211

BOLT-Rotor

$

$

Not available
