LRS749AKC524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 417930746 & Above) (Rev B) (2025) Controls Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

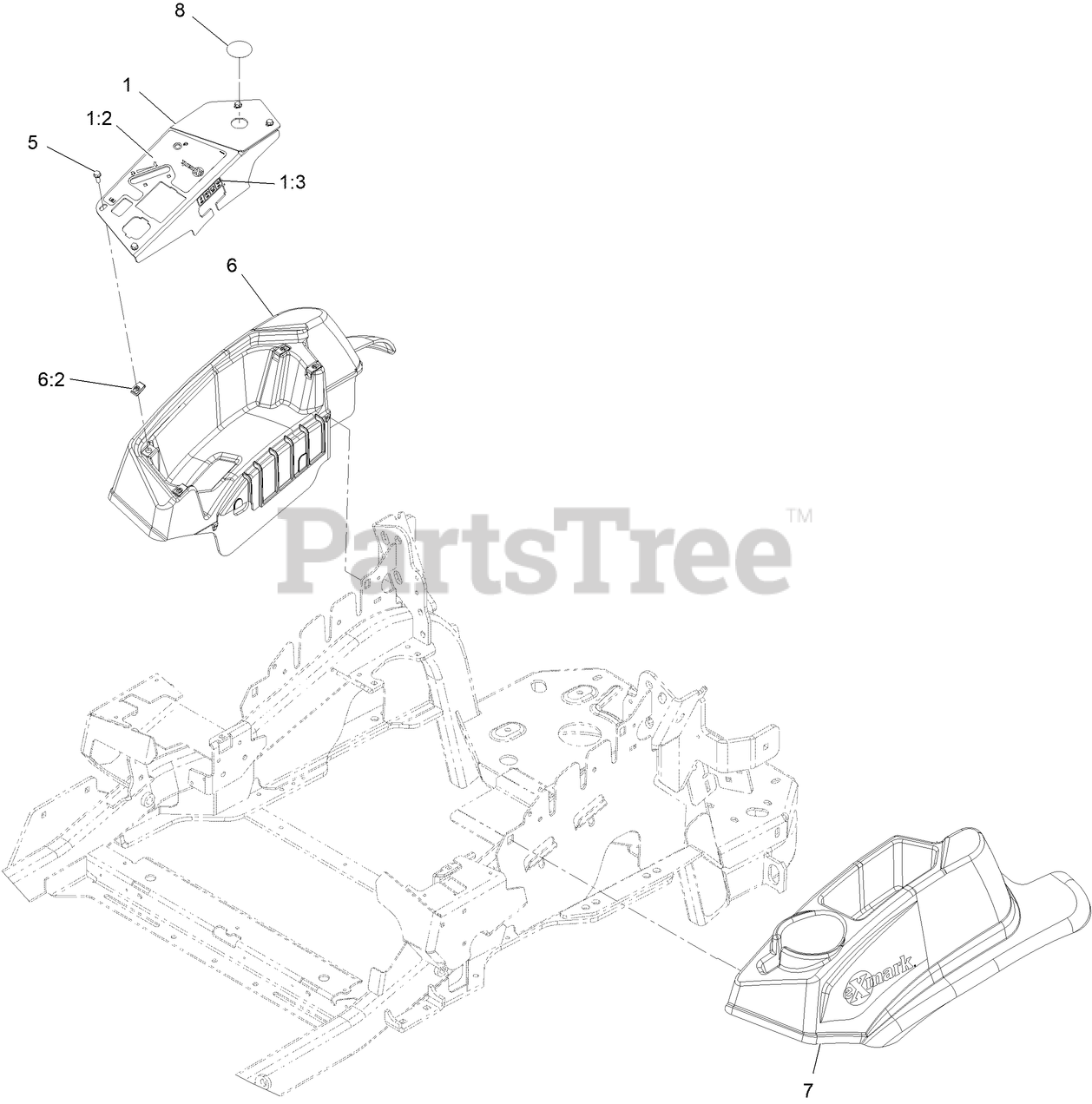

Controls Assembly Parts Diagram

  • Title
1

Exmark 116-2845

ASM,CONTROL PANEL W/DECAL

$135.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8725

DECAL-CONTROL PANEL EFI

$18.99

$

Usually ships in 3-6 days

0

1:3

Exmark 114-4466

DECAL-FUSES

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 146-5071

ASM - RH Console

$158.99

$

Usually ships in 0 days

0

6:2

$2.99

$

In Stock, Qty 20+

0

7

Exmark 146-4637

Console-LH

$144.99

$

Usually ships in 0 days

0

8

Exmark 142-3251

Decal-Cover 12V

$

$

Currently unavailable
