LRS749AKC524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 417930746 & Above) (Rev B) (2025) Seat Assembly 1 Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

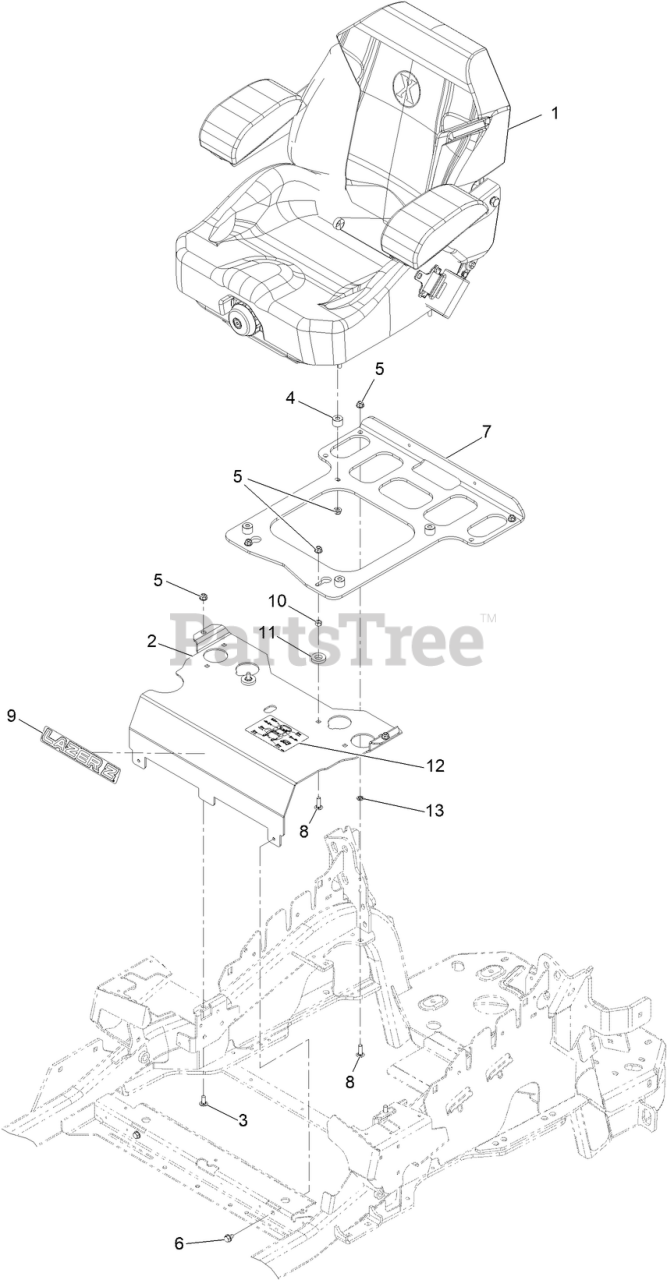

Seat Assembly 1 Parts Diagram

  • Title

1

Exmark 116-8912

KIT-SUSPENSION SEAT

$1744.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2130-03

Panel-Front, Seat Mount
(Superseded to 116-2323)

$291.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 116-9329

SPACER

$12.99

$

In Stock, only 1 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

6

Exmark 9266934

SCREW

$9.49

$

In Stock, only 4 left!

0

7

Exmark 146-5609-03

Plate - Support, Seat [black]

$135.99

$

Usually ships in 0 days

0

8

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

9

Exmark 126-6574

DECAL, LAZER MODEL

$6.99

$

In Stock, only 3 left!

0

10

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

11

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

12

Exmark 114-4465

DECAL-SERVICE AID

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
