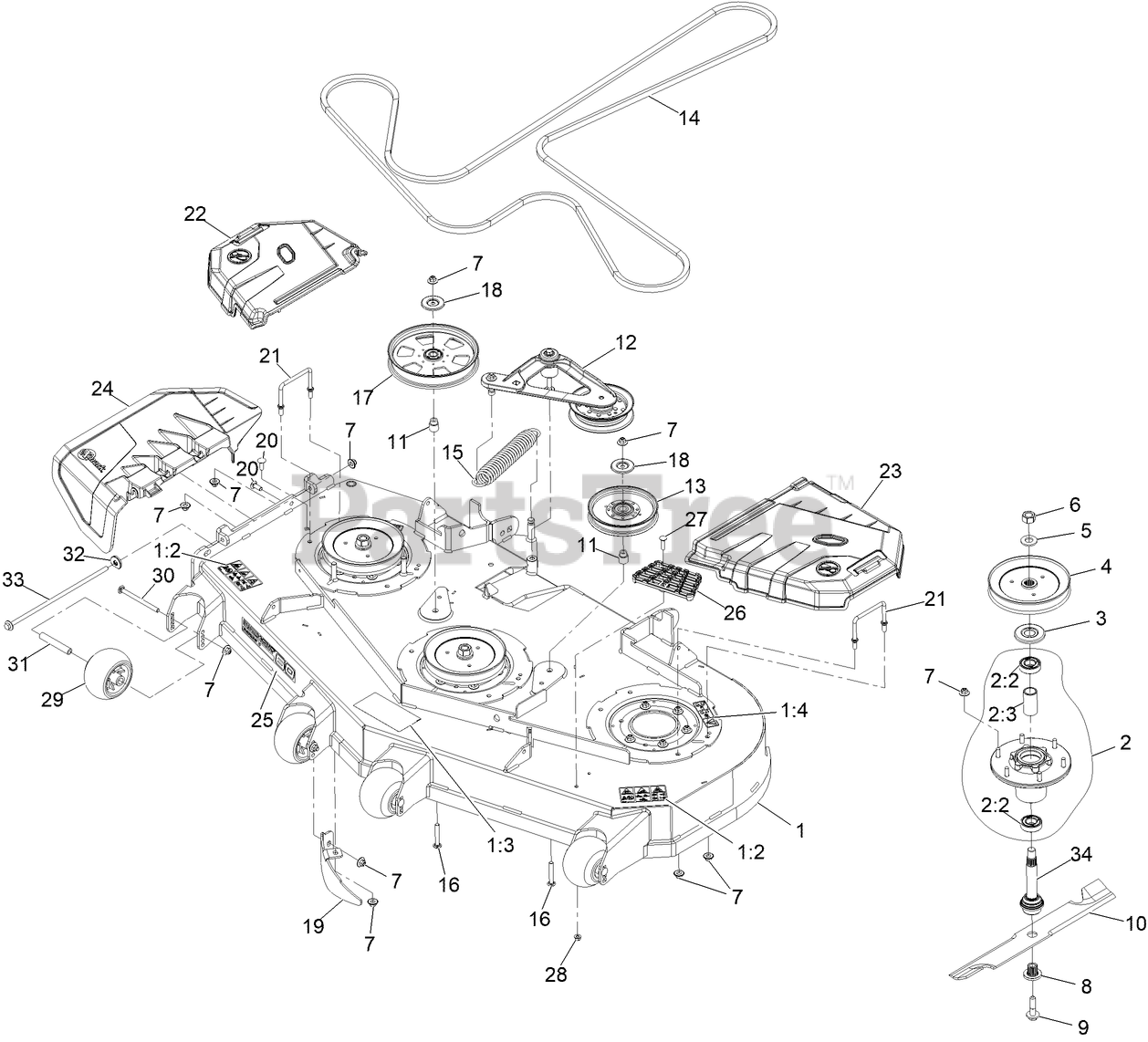

LRS801GKA604A1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Deck Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V

Deck Assembly Parts Diagram

  • Title

1

Exmark 146-1330

Deck ASM, W/Decals 60

$4046.99

$

Usually ships in 0 days

0

1:2

Exmark 126-6464

DECAL-DANGER THROWN OBJECTS

$3.99

$

In Stock, only 2 left!

0

1:3

Exmark 146-3805

DECAL-ANTI-SCALP-BELT ROUTING

$

$

Not available

1:4

Exmark 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 5

0

2:2

Exmark 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 12

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

0

3

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, only 2 left!

0

4

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$80.99

$

In Stock, Qty 18

0

5

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-7306

NUT-HEX

Note: Torque to 90-110 ft-lb

$2.99

$

In Stock, Qty 20+

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

9

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 90-110 ft-lb | Torque to 55-60 ft-lb

$8.99

$

In Stock, Qty 20+

0

10

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

$

Currently unavailable

10

Exmark 103-6403

USE 103-6403-S
(Superseded to 103-6403-S)

$34.99

$

In Stock, Qty 20+

0

10

Exmark 103-6393

USE 103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$33.99

$

In Stock, Qty 20+

0

10

Exmark 103-6388

USE 103-6388-S
(Superseded to 103-6388-S)

Note: Optional Equipment

$39.99

$

In Stock, only 4 left!

0

10

Exmark 103-6383

USE 103-6383-S
(Superseded to 103-6383-S)

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

0

11

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

12

Exmark 116-3755

DECK IDLER ASM

$292.99

$

In Stock, only 2 left!

0

13

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 13

0

14

Exmark 135-5774

USE 135-5774-SL

$180.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

16

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

17

Exmark 116-9639

PULLEY-IDLER, FLAT

$101.99

$

In Stock, Qty 8

0

18

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

19

Exmark 116-5614-01

DOGLEG - LZ60

$68.99

$

Usually ships in 3-6 days

0

20

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

22

Exmark 142-7105

SHIELD, RT

$31.99

$

Usually ships in 3-6 days

0

23

Exmark 142-7104

SHIELD, LT

$31.99

$

Usually ships in 3-6 days

0

24

Exmark 142-7025

Chute-Deck Discharge

$88.99

$

In Stock, only 4 left!

0

25

Exmark 126-6589

DECAL, 604

$6.99

$

In Stock, only 4 left!

0

26

Exmark 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

0

27

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 9

0

28

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

29

Exmark 146-1989

ROLLER-SCALP, ANTI

$24.99

$

In Stock, Qty 12

0

30

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 4 left!

0

31

Exmark 146-1990

SPACER-AXLE

$7.99

$

In Stock, Qty 12

0

32

Exmark 146-0943

Retainer, Chute

$1.49

$

In Stock, only 4 left!

0

33

Exmark 142-8544

Pin, Chute

$9.49

$

In Stock, only 4 left!

0

34

Exmark 116-3341

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, Qty 7

0
