LRS801GKA72RA1 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Fuel System Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V

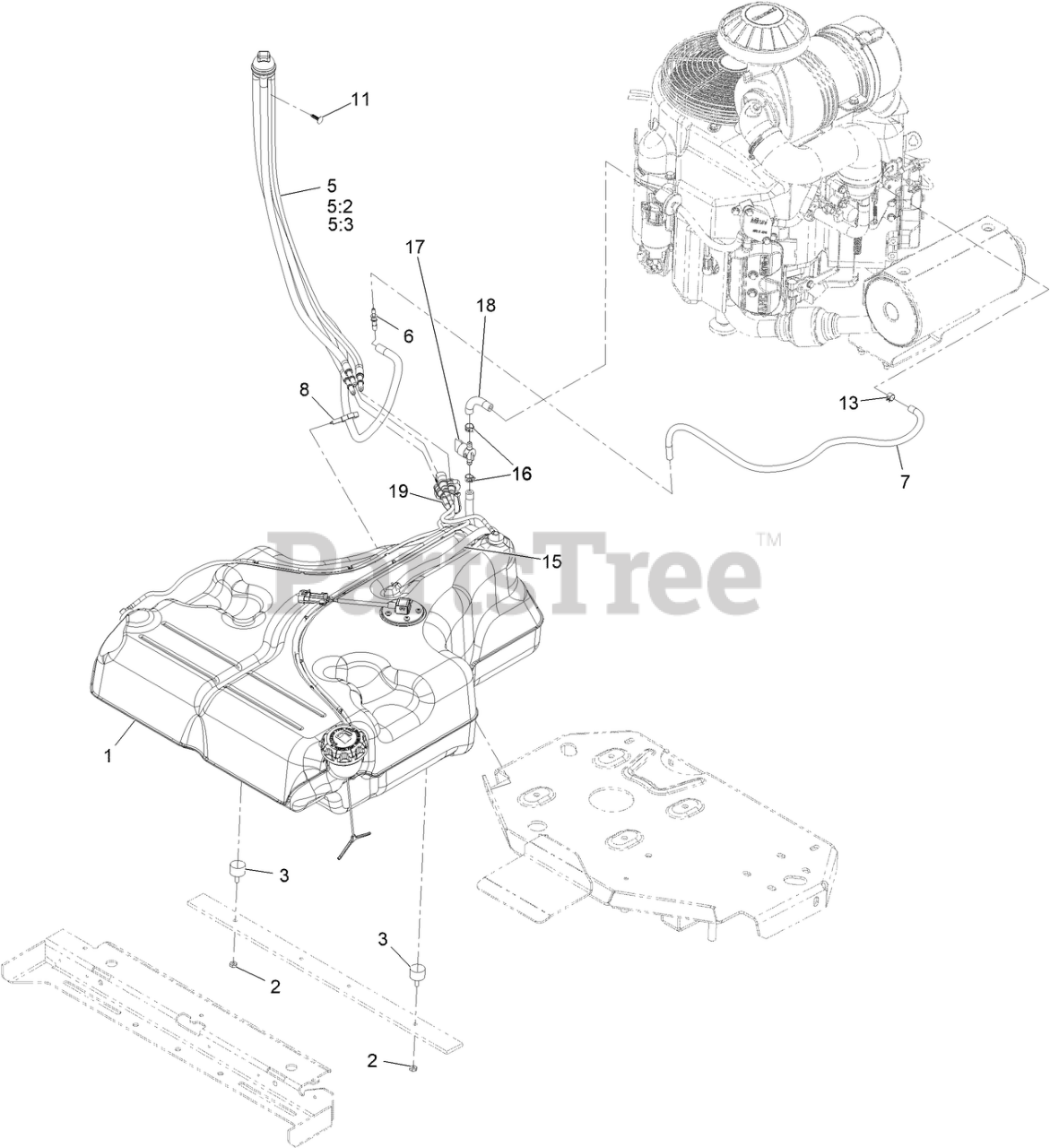

Fuel System Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$847.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$77.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

5:3

Exmark 108-5376

HOSE-FUEL

$46.99

$

In Stock, only 1 left!

0

6

Exmark 135-5678

BARB-FUEL

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 140-4956

Hose-Fuel

$31.99

$

Usually ships in 3-6 days

0

8

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

11

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

13

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

15

Exmark 109-0298

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

17

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

18

Exmark 109-0650

HOSE-FUEL

$8.49

$

In Stock, only 2 left!

0

19

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
