LRTZ 230 - RedMax Long Reach Hedge Trimmer (2017-02) DRIVE Parts Diagram

Long Reach Hedge Trimmer

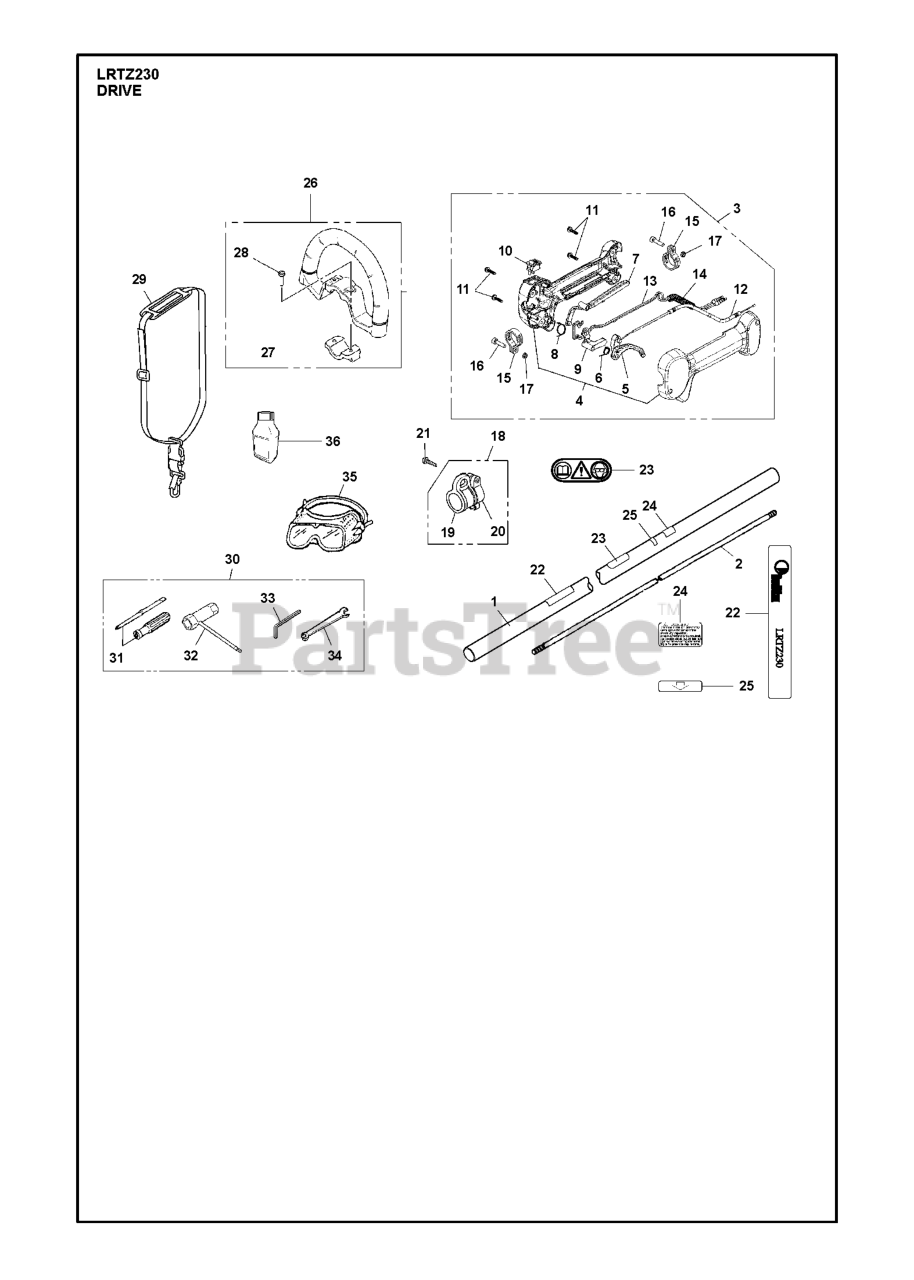

DRIVE Parts Diagram

  • Title

1

RedMax 579149001

TUBE
(Superseded to 584158201)

$145.99

$

In Stock, only 1 left!

0

2

RedMax 581110501

DRIVESHAFT 525L

$27.99

$

Usually ships in 3-10 days

0

3

RedMax 581331801

ASSY THROTTLE

$66.99

$

In Stock, Qty 6

0

4

RedMax 576475202

GRIP HALF SET

$31.99

$

Usually ships in 3-10 days

0

5

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

6

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

7

RedMax 578778001

LEVER, SAFETY

$3.99

$

In Stock, only 1 left!

0

8

RedMax 511591801

SPRING

$3.99

$

In Stock, only 3 left!

0

9

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

10

RedMax 586246801

STOP SWITCH NM_09091801

$18.99

$

Usually ships in 3-10 days

0

11

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

12

RedMax 529257101

CABLE-C

$12.99

$

In Stock, Qty 6

0

13

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

14

RedMax 581410403

TUBE

$

$

Not available

15

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

16

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

17

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

18

RedMax 590006201

HANGER COMP

$15.99

$

Usually ships in 3-10 days

0

19

RedMax 590006101

$

$

Currently unavailable

20

RedMax 521822301

CLAMP

$

$

Not available

21

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 580261131

$

$

Currently unavailable

23

RedMax 521534401

LABEL (CAUTION)

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 522928602

DECAL SPARK ARRESTOR WARNING

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 581430701

HANDLE LOOP

$37.99

$

In Stock, only 2 left!

0

25

RedMax 505295801

LABEL

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 576463801

CLAMP HANDLE

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

29

RedMax 521651101

STRAP ASSY

$15.99

$

Usually ships in 3-10 days

0

30

RedMax 521532201

TOOL-SET

$18.99

$

Usually ships in 3-10 days

0

31

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

32

RedMax 506686101

SOCKET

$6.99

$

In Stock, only 4 left!

0

33

RedMax 505311901

WRENCH

$

$

Not available

34

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

35

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

36

RedMax 580357210

OIL 2 CYCLE ENGINE OIL 2.

$1.49

$

Usually ships in 3-10 days

0
