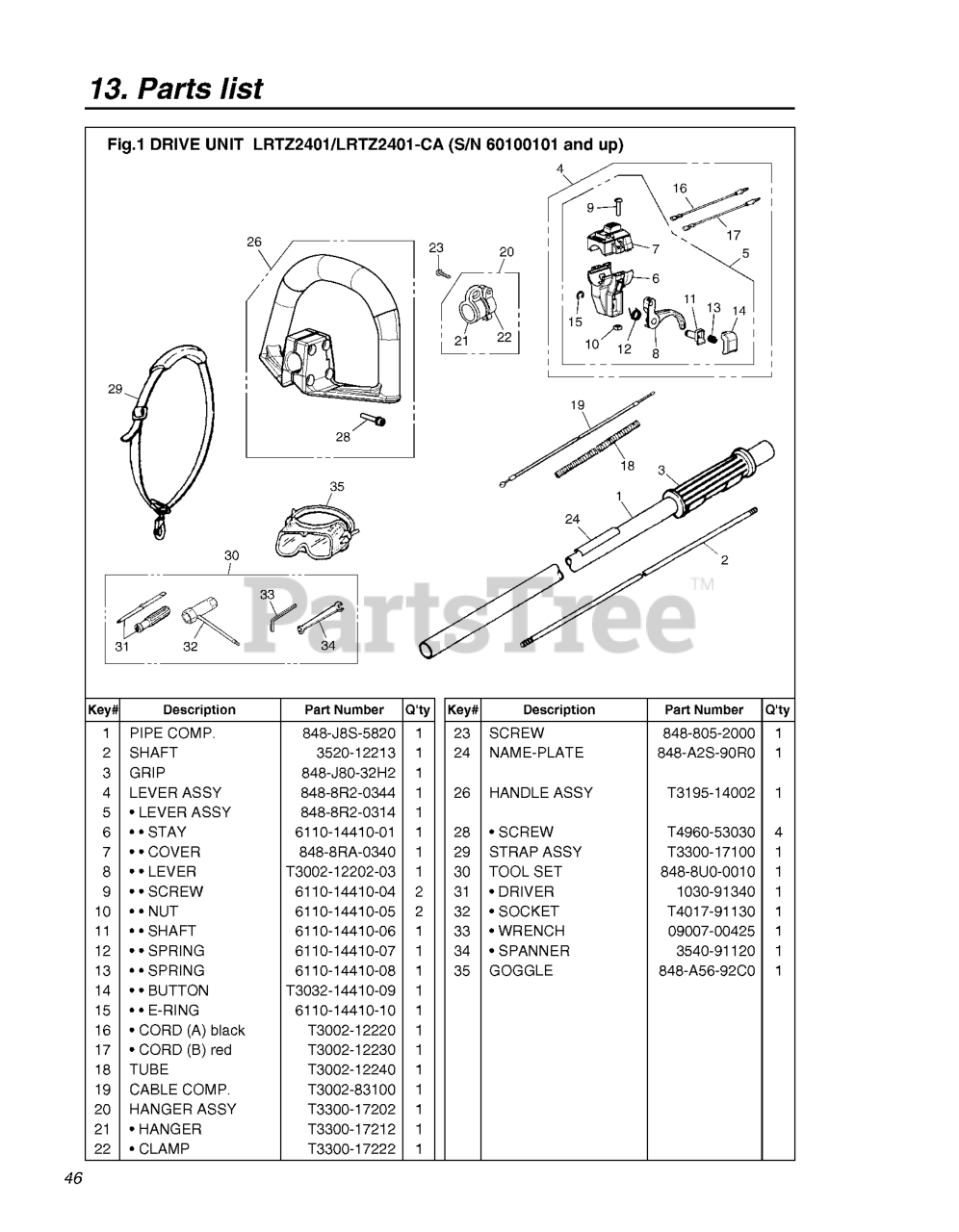

LRTZ 2401 - RedMax Long Reach Hedge Trimmer (SN: 60100101 & Above) DRIVE Parts Diagram

Long Reach Hedge Trimmer

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

$66.99

$

In Stock, only 3 left!

0

2

RedMax 514344201

SHAFT

$53.99

$

In Stock, only 2 left!

0

3

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$8.93

$

Usually ships in 3-10 days

0

4

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

Note: . 5 6 7-17

$

$

Not available

5

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

Note: . 6 7 8-15

$60.99

$

Usually ships in 3-10 days

0

6

RedMax 521419001

STAY

$14.99

$

Usually ships in 3-10 days

0

7

RedMax 521531101

COVER COMP (RPLS 611014410-02)

$15.99

$

Usually ships in 3-10 days

0

8

RedMax 521803201

$

$

Not available

9

RedMax 521419301

SCREW

$

$

Not available

10

RedMax 521419401

NUT

$

$

Not available

11

RedMax 521419501

SHAFT

$2.49

$

Usually ships in 3-10 days

0

12

RedMax 521419601

SPRING

$

$

Not available

13

RedMax 521419701

SPRING

$

$

Not available

14

RedMax 512506701

$

$

Not available

15

RedMax 521419901

E-RING

$

$

Not available

16

RedMax 521803401

CORD (A), BLACK

$7.99

$

In Stock, only 1 left!

0

17

RedMax 521803501

CORD (B), RED

$8.99

$

Usually ships in 3-10 days

0

18

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 512498601

CABLE-C

$18.99

$

Usually ships in 3-10 days

0

20

RedMax 521822101

HANGER COMP.

Note: . 21 22

$

$

Not available

21

RedMax 521822201

HANGER
(Superseded to 521822101)

$

$

Not available

22

RedMax 521822301

$

$

Not available

23

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 527062701

Note: 848A2S90R0

$

$

Not available

26

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 28

$34.99

$

In Stock, Qty 5

0

28

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

29

RedMax 512572001

HARNESS-ASSY***
(Superseded to 521651101)

$15.99

$

Usually ships in 3-10 days

0

30

RedMax 521532201

TOOL-SET

Note: . 31 32 33 34

$18.99

$

Usually ships in 3-10 days

0

31

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

32

RedMax 506686101

SOCKET

$6.99

$

In Stock, only 4 left!

0

33

RedMax 505311901

WRENCH

$

$

Not available

34

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

35

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
