LRTZ 2460 - RedMax Long Reach Hedge Trimmer (SN: 00100101 & Above) (2012-08)

Long Reach Hedge Trimmer

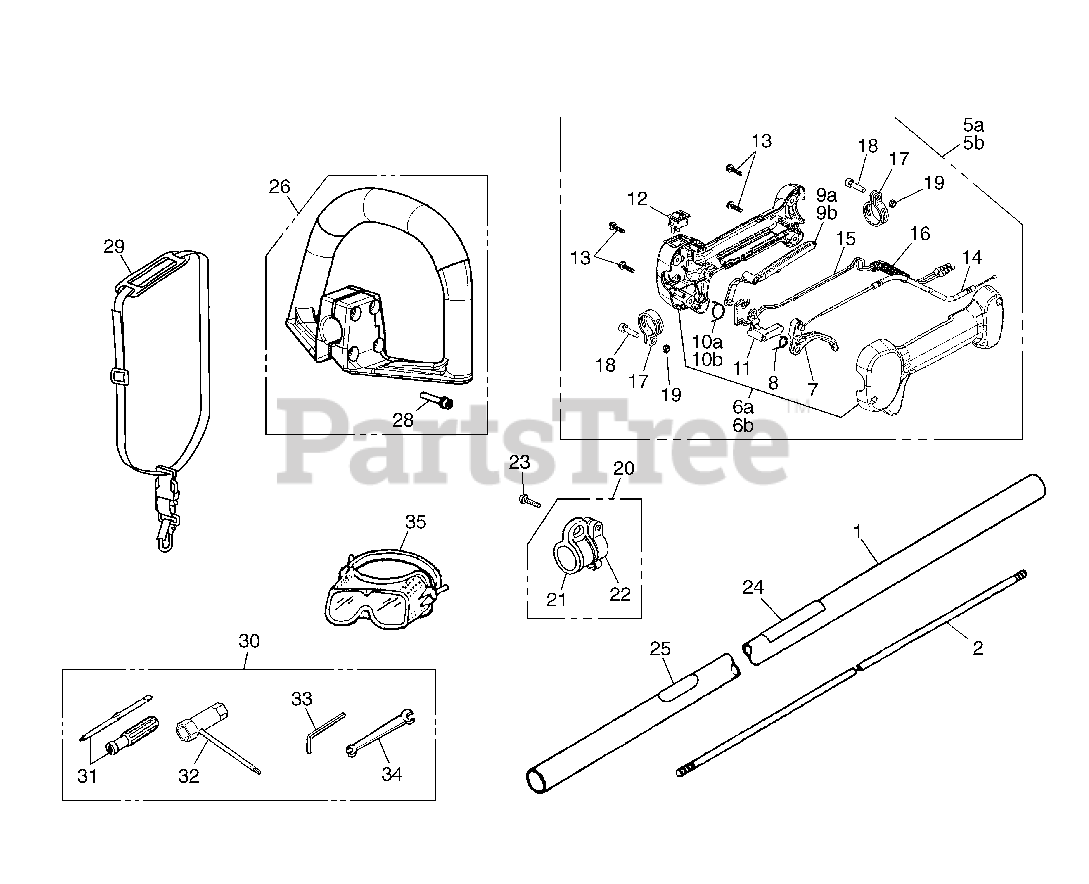

LRTZ 2460 - RedMax Long Reach Hedge Trimmer (SN: 00100101 & Above) (2012-08) > Parts Diagrams (3) > DRIVE

  • Title
528868901

1

Pipe, Complete

Part# 528868901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $50.30

514344201

2

SHAFT

Part# 514344201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $42.47

574390301

5

OBSOLETE - GRIP ASSY

Part# 574390301

Note: UP TO SN11299999

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

574390302

5

GRIP ASSY

Part# 574390302

Note: FROM SN20400101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

576475201

6

OBSOLETE - GRIP HALF SET

Part# 576475201

Note: UP TO SN11299999

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

576475202

6

GRIP HALF SET

Part# 576475202

Note: FROM SN20400101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

529258801

7

Throttle Lever

Part# 529258801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

529259601

8

Throttle Spring

Part# 529259601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

529259001

9

Safety Lever

Part# 529259001

Note: UP TO SN11299999

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

578778001

9

LEVER, SAFETY

Part# 578778001

Note: FROM SN20400101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

574390801

10

RP_SPRING JOINT

Part# 574390801

Note: UP TO SN11299999

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

511591801

10

Spring

Part# 511591801

Note: FROM SN20400101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

529259201

11

LEVER JOINT

Part# 529259201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521851601

12

SWITCH

Part# 521851601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

521517701

13

SCREW

Part# 521517701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

529257101

14

Control Cable

Part# 529257101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

529256101

15

CORD - C

Part# 529256101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

521805501

16

TUBE

Part# 521805501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

529259401

17

BAND

Part# 529259401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

504114301

18

BOLT

Part# 504114301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

510911101

19

NUT

Part# 510911101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

521822101

20

HANGER COMP.

Part# 521822101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521822201

21

OBSOLETE - HANGER

Part# 521822201 (Superseded to 521822101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521822301

22

Part# 521822301

OEM Warranty Repair Part for RedMax

Not available

521515301

23

SCREW

Part# 521515301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

575947601

24

NAME PLATE LRTZ2460

Part# 575947601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521534401

25

LABEL (CAUTION)

Part# 521534401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

526056401

26

Handle Assembly

Part# 526056401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $25.70

521863101

28

SCREW

Part# 521863101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521651101

29

STRAP ASSY

Part# 521651101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

521532201

30

TOOL-SET

Part# 521532201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $15.64

506689501

31

DRIVER

Part# 506689501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

506686101

32

SOCKET

Part# 506686101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

505311901

33

WRENCH

Part# 505311901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506615001

34

SPANNER

Part# 506615001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

510989401

35

OBSOLETE - GOGGLE*** (RPLS T300291190)

Part# 510989401

OEM Warranty Repair Part for RedMax

Not available
