LRX 3000 (UT-03819) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

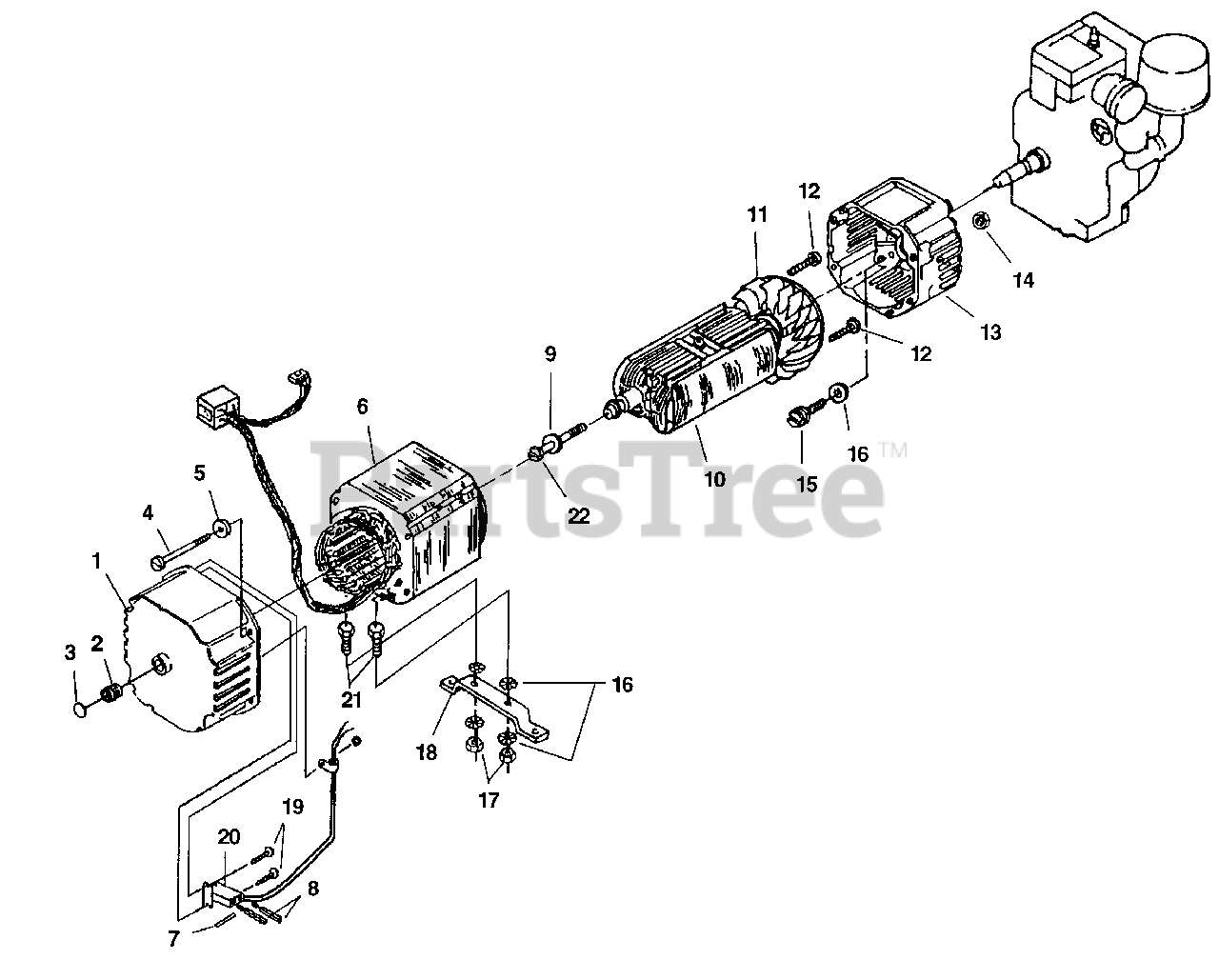

Brush Head - Generator Parts Diagram

  • Title

1

Homelite UP03527

Complete Brush Head
(Superseded to A07068A)

Note: (Incl. items 2 - 5)

$

$

Not available

2

Homelite 03044

Bearing - Needle

$

$

Not available

3

Homelite 02438

Plug - Expansion

$

$

Not available

4

Homelite 4885305

Bolt - Stator

Note: (Torque Specs 60 - 80 In/Lbs [6.8 - 9.0 Nm])

$

$

Not available

5

Homelite 84124

Washer - Flat (1/4")
(Superseded to UP03418)

$5.99

$

Usually ships in 3-7 days

0

6

Homelite UP03524

Stator & Harness

Note: (Also order Decal Kit P/N UP04531)

$619.99

$

Usually ships in 3-7 days

0

Homelite A03035

Brush & Retainer Kit
(Superseded to UP03736)

Note: (Incl. items 7 & 8)

$

$

Not available

7

Homelite 02857

Pin

$5.99

$

Usually ships in 3-7 days

0

8

Homelite 02664

Brush
(Superseded to UP03736)

$

$

Not available

9

Homelite 83002

Washer - Lock (5/16")
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

10

Homelite A02800AS

Rotor

$

$

Not available

11

Homelite UP03737

Fan - Generator

Note: (Incl. item 12)

$

$

Not available

12

Homelite 82526

Screw - Pan Hd. (6-19 X 3/4")

Note: (Torque Specs 12 - 16 In/Lbs [1.4 - 1.8 Nm])

$

$

Not available

13

Homelite UP03436

End Bell

$

$

Not available

14

Homelite 81267

Nut - Hex (1/4-20)

$

$

Not available

15

Homelite 80604

Screw - Hex Hd. (5/16-24 X 3/4")
(Superseded to UP03390)

Note: (Torque Specs 120 - 150 In/Lbs [13.6 - 16.9 Nm])

$

$

Not available

16

Homelite 83033

Washer - Lock
(Superseded to 83081)

$

$

Not available

17

Homelite 81162

Nut - Hex (5/16-18)

$

$

Not available

18

Homelite 028441

Bracket - Generator Support

$

$

Currently unavailable

19

Homelite 82526

Screw - Plastite (6-19 X 3/4")

Note: (Torque Specs 12 - 16 In/Lbs [1.4 - 1.8 Nm])

$

$

Not available

20

Homelite 02365

Brush Holder
(Superseded to UP03449)

$42.99

$

Usually ships in 3-7 days

0

21

Homelite UP03381

Screw - Hex Hd. (5/16-18 X 3/4")
(Superseded to 80083)

Note: (Torque Specs 150 - 155 In/Lbs [16.9 - 17.5 Nm])

$

$

Not available

22

Homelite 4885211

Bolt - Rotor

Note: (Torque Specs 100 - 140 In/Lbs [11.3 - 15.8 Nm])

$

$

Not available

?23

Homelite UP04371

Engine

Note: (EH17)

$

$

Not available

Homelite UP04531

Decal Kit

$47.99

$

Usually ships in 3-7 days

0
