LRX 3000 (UT-03819) - Homelite Generator Carburetor Parts Diagram

Generator

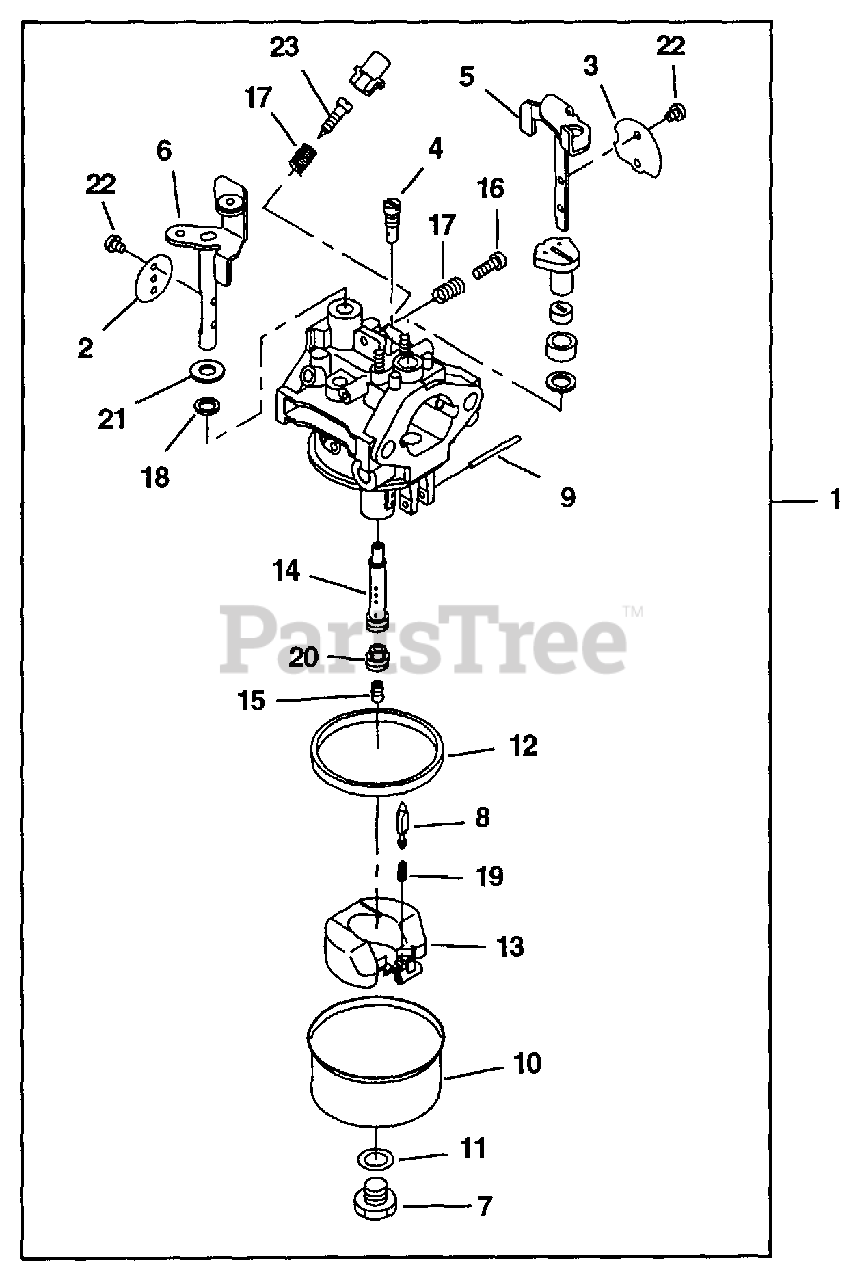

Carburetor Parts Diagram

  • Title

1

Homelite UP04020

Carburetor

$

$

Not available

2

Homelite UP04018

Throttle valve

$

$

Not available

3

Homelite UP04023

Choke valve

$

$

Not available

4

Homelite UP04017

Pilot jet

$

$

Not available

5

Homelite UP04007

Choke lever

$

$

Not available

6

Homelite UP04024

Throttle shaft

$

$

Not available

7

Homelite UP04035

Bolt

Note: (Torque Specs 49 In/Lbs [6.5 Nm])

$

$

Not available

8

Homelite UP04036

Needle

$

$

Not available

9

Homelite UP04037

Pin

$

$

Currently unavailable

10

Homelite UP04038

Float chamber body

$

$

Not available

11

Homelite UP04039

Packing

$

$

Not available

12

Homelite UP04040

Chamber packing

$

$

Not available

13

Homelite UP04041

Float

$

$

Not available

14

Homelite UP04042

Main nozzle

$

$

Not available

15

Homelite UP04043

Main jet

$

$

Not available

16

Homelite UP04044

Adjusting screw

$

$

Not available

17

Homelite UP04053

Spring

$

$

Not available

18

Homelite UP03333

Seal

$

$

Not available

19

Homelite UP04057

Spring

$

$

Not available

20

Homelite UP04060

Guide holder

$

$

Not available

21

Homelite UP04061

Ring

$

$

Not available

22

Homelite UP03316

Screw M2.5 X 0.45 X 4L

$

$

Not available

23

Homelite UP03944

Adjuster

$

$

Currently unavailable

?24

Homelite UP03990

Label, choke

Note: (Not Shown)

$

$

Not available
