LRX 3000 (UT-03819) - Homelite Generator Crankshaft - Piston Parts Diagram

Generator

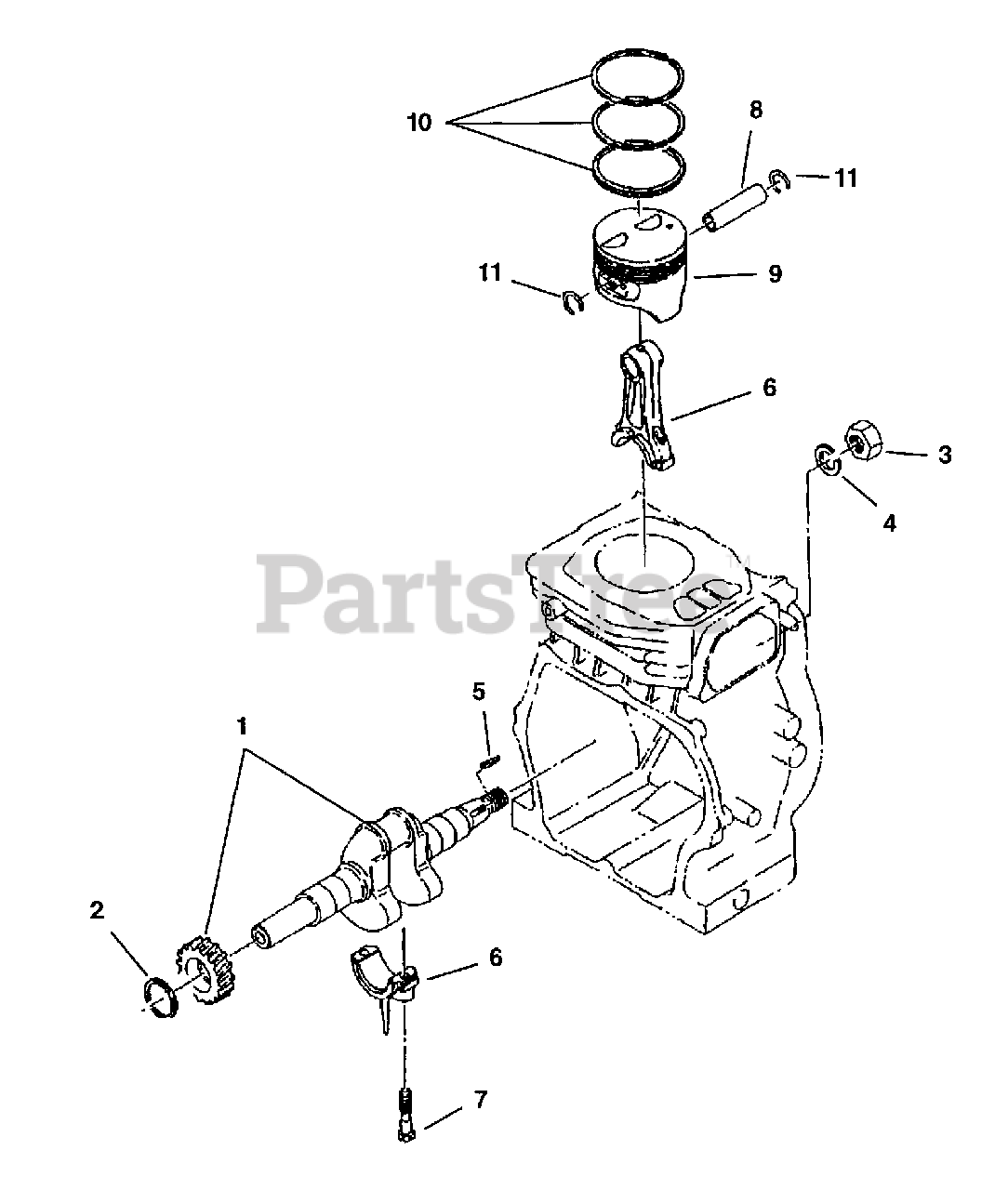

Crankshaft - Piston Parts Diagram

  • Title

1

Homelite UP03942

Crankshaft

$

$

Not available

2

Homelite UP03936

Spacer

Note: (.6)

$

$

Not available

Homelite UP03937

Spacer

Note: (.8)

$

$

Not available

Homelite UP03938

Spacer

Note: (1.0)

$

$

Not available

3

Homelite UP03939

Nut

Note: (Torque Specs 434 - 470 In/Lbs [49.0 - 53.1 Nm])

$

$

Currently unavailable

4

Homelite UP03940

Spring washer

$

$

Not available

5

Homelite UP03251

Woodruff key

$

$

Not available

6

Homelite UP03949

Connecting rod

$

$

Not available

7

Homelite UP03880

Connecting rod bolt

Note: (Torque Specs 122 - 145 In/Lbs [13.8 - 16.4 Nm])

$

$

Not available

8

Homelite UP03945

Piston pin

$

$

Not available

9

Homelite UP03946

Piston

Note: (std)

$

$

Not available

Homelite UP03947

Piston

Note: (.25)

$

$

Currently unavailable

Homelite UP03948

Piston

Note: (.50)

$

$

Currently unavailable

10

Homelite UP03950

Piston ring set

Note: (std)

$

$

Not available

Homelite UP03951

Piston ring set

Note: (.25)

$

$

Not available

Homelite UP03952

Piston ring set

Note: (.50)

$

$

Not available

11

Homelite UP03263

Clip

$

$

Not available
