LRX 3000 (UT-03819) - Homelite Generator Exhaust Parts Diagram

Generator

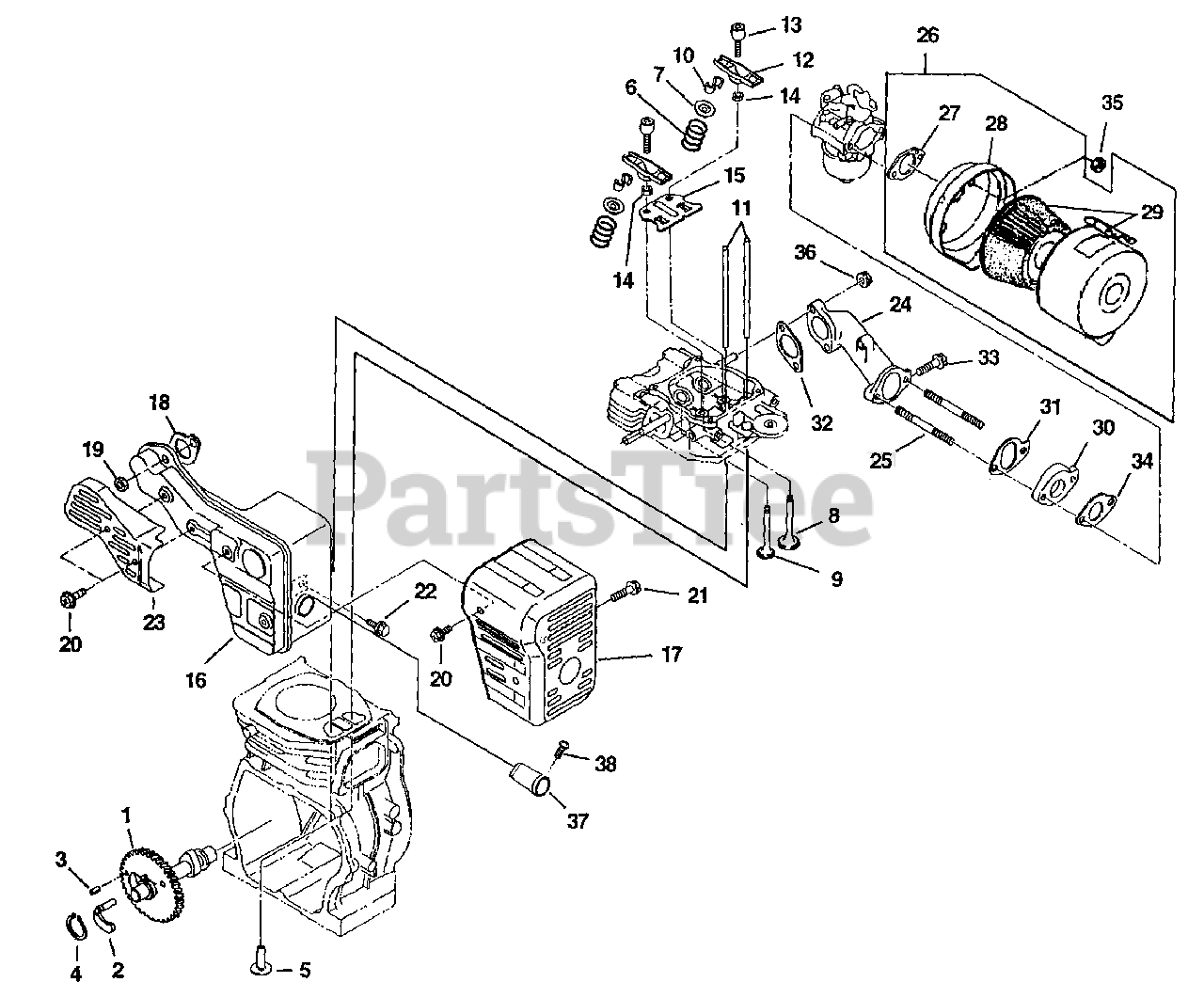

Exhaust Parts Diagram

  • Title

1

Homelite UP03977

Camshaft

$

$

Not available

2

Homelite UP03953

Release lever

$

$

Currently unavailable

3

Homelite UP03954

Spring pin

$

$

Not available

4

Homelite UP03955

Snap ring

$

$

Not available

5

Homelite UP03957

Tappet

$

$

Not available

6

Homelite UP03969

Valve spring

$

$

Not available

7

Homelite UP03959

Spring retainer

$

$

Not available

8

Homelite UP03960

Intake valve

$

$

Not available

9

Homelite UP03961

Exhaust valve

$

$

Not available

10

Homelite UP03962

Collet valve

$

$

Not available

11

Homelite UP03963

Push rod

$

$

Not available

12

Homelite UP03964

Rocker arm

$

$

Not available

13

Homelite UP03965

Pivot bolt

$

$

Not available

14

Homelite UP03966

Nut

$

$

Not available

15

Homelite UP03967

Guide plate

$

$

Not available

16

Homelite UP03968

Muffler

$

$

Not available

17

Homelite UP03970

Muffler cover

$

$

Not available

18

Homelite UP03982

Muffler gasket

$

$

Not available

19

Homelite UP03971

Nut M8

$

$

Not available

20

Homelite UP03972

Tapping bolt M8

Note: (Torque Specs 86 - 121 In/Lbs [9.8 - 13.7 Nm])

$

$

Not available

21

Homelite UP03973

Tapping bolt M8

Note: (Torque Specs 86 - 121 In/Lbs [9.6 - 13.7 Nm])

$

$

Not available

22

Homelite UP03242

Flange bolt M6 X 1.0 X 12L

Note: (Torque Specs 51 - 65 In/Lbs [5.8 - 7.3 Nm])

$

$

Not available

23

Homelite UP03974

Exhaust pipe cover

$

$

Currently unavailable

24

Homelite UP03958

Intake pipe

$

$

Not available

25

Homelite UP03976

Stud

$

$

Not available

26

Homelite UP03981

Air cleaner assy

Note: (Incl. items 27 - 29)

$

$

Not available

27

Homelite UP03978

Packing

$

$

Not available

28

Homelite UP03979

Plate
(Superseded to UP03981)

$

$

Not available

29

Homelite UP03980

Element

$

$

Not available

30

Homelite UP03975

Insulator

$

$

Not available

31

Homelite UP03991

Insulator gasket

$

$

Not available

32

Homelite UP03983

Insulator gasket

$

$

Not available

33

Homelite UP03984

Flange bolt

Note: (Torque Specs 86 - 121 In/Lbs [9.8 - 13.7 Nm])

$

$

Not available

34

Homelite UP03985

Insulator gasket

$

$

Currently unavailable

35

Homelite UP03986

Nut & washer M6

$

$

Not available

36

Homelite UP03987

Flange nut

Note: (Torque Specs 120 - 140 In/Lbs [13.6 - 15.8 Nm])

$

$

Not available

37

Homelite UP03988

Spark arrestor

$

$

Not available

38

Homelite UP03989

Tapping screw

Note: (Torque Specs 15 - 20 In/Lbs [1.7 - 2.3 Nm])

$

$

Not available

Homelite UP03934

Gasket Set

$

$

Currently unavailable
