LRX 3000 (UT-03819) - Homelite Generator Governor Parts Diagram

Generator

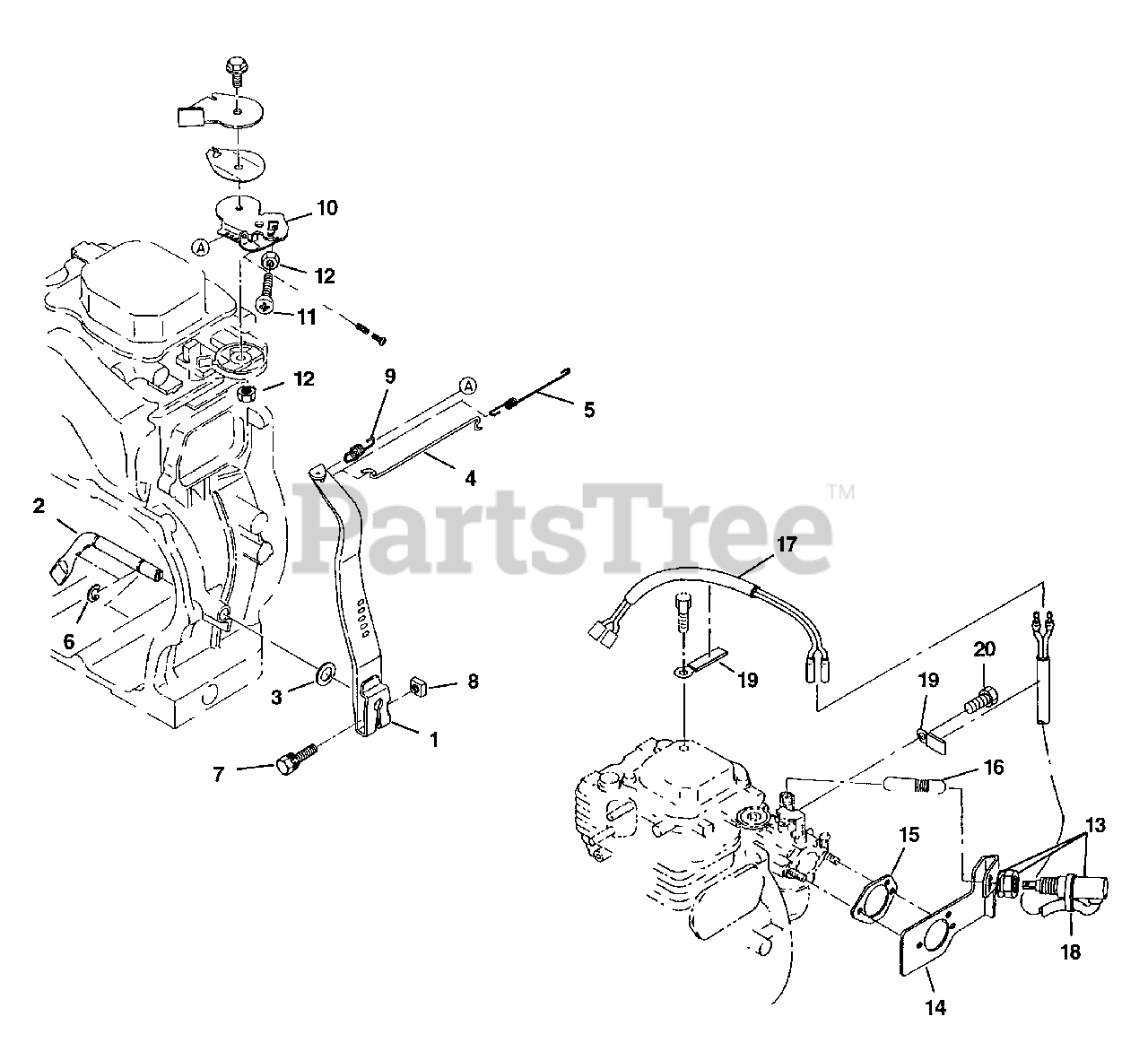

Governor Parts Diagram

  • Title

1

Homelite UP03997

Governor lever

$

$

Not available

2

Homelite UP03992

Governor shaft

$

$

Currently unavailable

3

Homelite UP03993

Washer

$

$

Not available

4

Homelite UP03995

Governor rod

$

$

Currently unavailable

5

Homelite UP04001

Rod spring

$

$

Not available

6

Homelite UP03292

Clip

$

$

Not available

7

Homelite UP03996

Bolt & washer M6 X 12

Note: (Torque Specs 65 - 80 In/Lbs [7.3 - 9.0 Nm])

$

$

Not available

8

Homelite UP03294

Nut M6 X 1.0

$

$

Not available

9

Homelite UP03994

Governor spring

$

$

Not available

10

Homelite UP03998

Speed control assy

$

$

Not available

11

Homelite UP03999

Screw

Note: (Torque Specs 15 - 20 In/Lbs [1.7 - 2.3 Nm])

$

$

Not available

12

Homelite UP03299

Nut M6 X 1.0

Note: (Torque Specs 15 - 20 In/Lbs [1.7 - 2.3 Nm])

$

$

Not available

13

Homelite UP04072

Solenoid

$

$

Not available

14

Homelite UP04073

Solenoid bracket

$

$

Not available

15

Homelite UP04074

Insulator gasket

$

$

Not available

16

Homelite UP04075

Spring

$

$

Not available

17

Homelite UP04076

Wire 18

$

$

Not available

18

Homelite UP04077

Wire band

$

$

Not available

19

Homelite UP04078

Clamp

$

$

Not available

20

Homelite UP04080

Tapping screw

$

$

Not available
