LRX 3000 (UT-03819) - Homelite Generator Ignition Parts Diagram

Generator

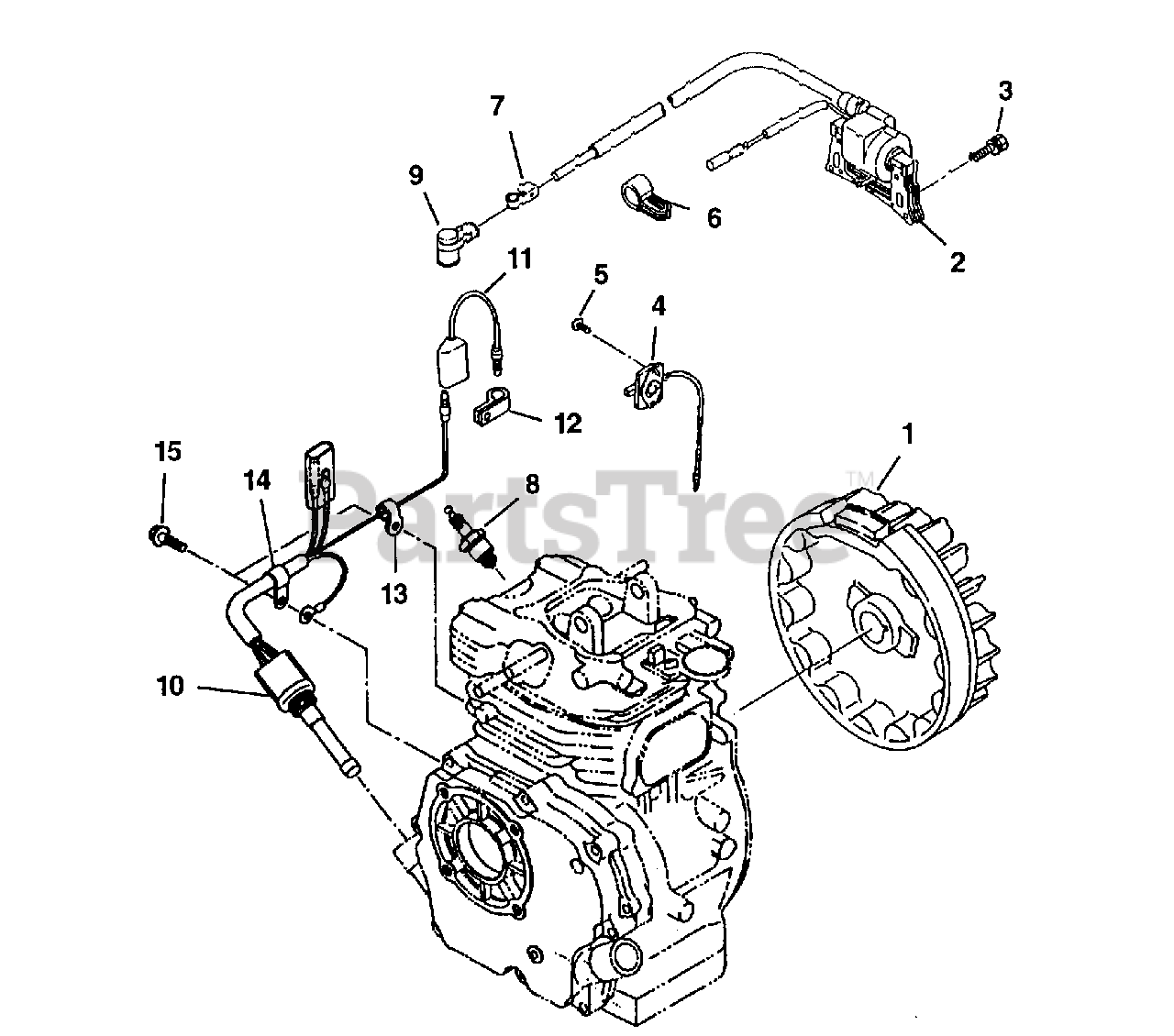

Ignition Parts Diagram

  • Title

1

Homelite UP04063

Flywheel

$

$

Not available

2

Homelite UP04064

Ignition coil

$

$

Not available

3

Homelite UP03293

Bolt & washer M6 X 1.0 X 25L

Note: (Torque Specs 15 - 20 In/Lbs [1.7 - 2.3 Nm])

$

$

Not available

4

Homelite UP04065

Switch assy

$

$

Not available

5

Homelite UP03347

Tapping screw M4 X 07 X 8L

Note: (Torque Specs 10 - 15 In/Lbs [1.1 - 1.7 Nm])

$

$

Not available

6

Homelite UP04066

Clamp

$

$

Not available

7

Homelite UP03356

Plug terminal

$

$

Not available

8

Homelite UP04067

Spark plug

Note: (Torque Specs 166 - 195 In/Lbs [18.8 - 22.0 Nm])

$

$

Not available

9

Homelite UP04068

Spark plug cap

$

$

Currently unavailable

10

Homelite UP04069

Oil sensor

$

$

Not available

11

Homelite UP03354

Wire 22

$

$

Not available

12

Homelite UP03349

Clamp

$

$

Not available

13

Homelite UP03355

Clamp

$

$

Not available

14

Homelite UP04070

Clamp

$

$

Not available

15

Homelite UP03353

Bolt & washer

$

$

Not available
