LRX 4500 (UT-03820) - Homelite Generator Ignition Parts Diagram

Generator

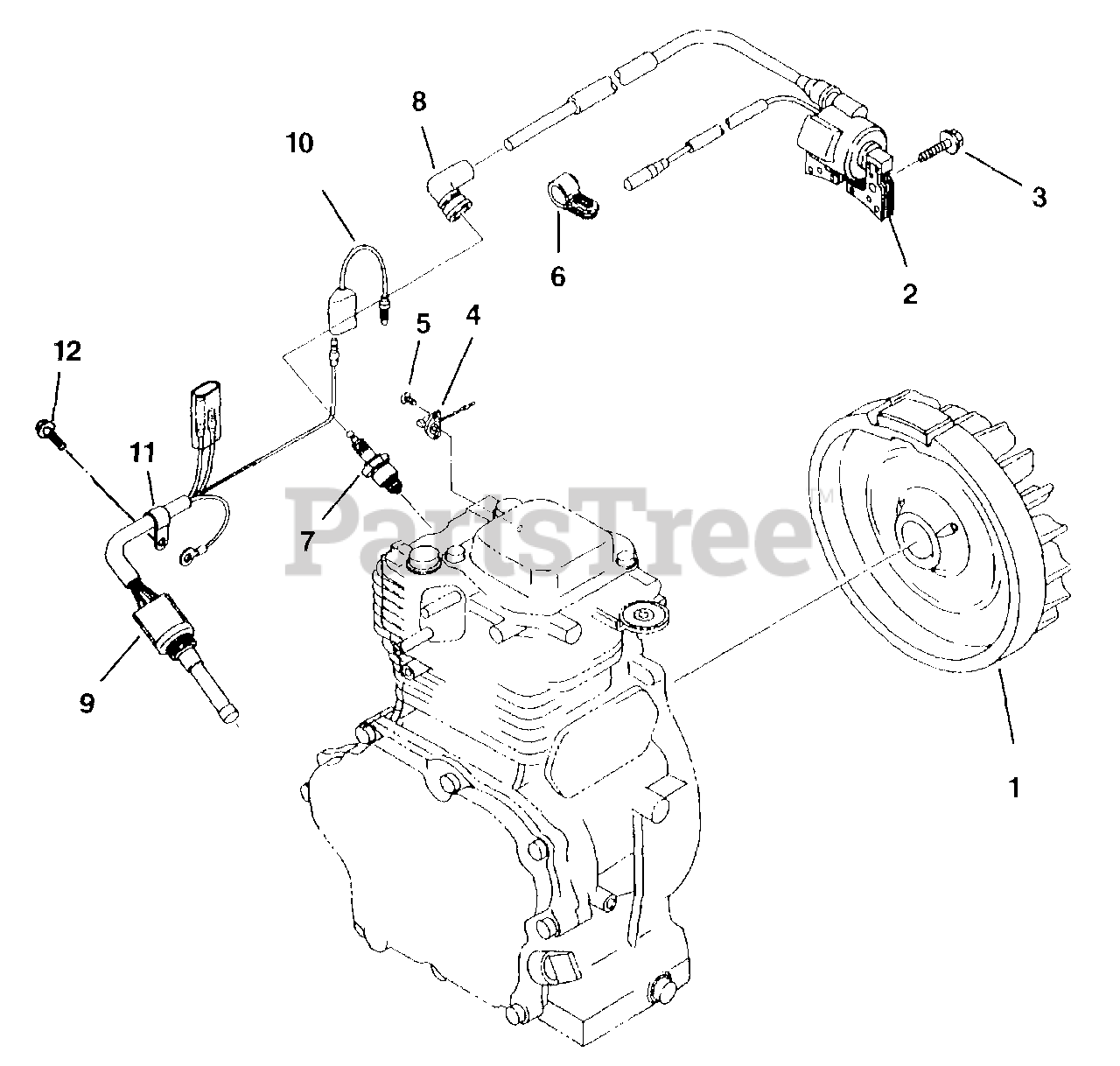

Ignition Parts Diagram

  • Title

1

Homelite UP04476

Flywheel

$

$

Not available

2

Homelite UP04478

Ignition coil

$

$

Not available

3

Homelite UP03293

Bolt & washer

Note: (Torque to 15 - 20 in/lbs [1.7 - 2.3 Nm])

$

$

Not available

4

Homelite UP04065

Switch ay

$

$

Not available

5

Homelite UP03347

Tapping screw

Note: (Torque to 10 - 15 in/lbs [1.1 - 1.7 Nm])

$

$

Not available

6

Homelite UP04066

Clamp

$

$

Not available

7

Homelite UP04484

Spark plug

$

$

Not available

8

Homelite UP03351

Spark plug cap

Note: (Torque to 166 - 195 in/lbs [18.8 - 22.0 Nm])

$

$

Not available

9

Homelite UP04526

Oil sensor

$

$

Not available

10

Homelite UP03354

Wire 22

$

$

Not available

11

Homelite UP04070

Clamp

$

$

Not available

12

Homelite UP03353

Bolt & washer

$

$

Not available
