LRX 5600 (UT-03822) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

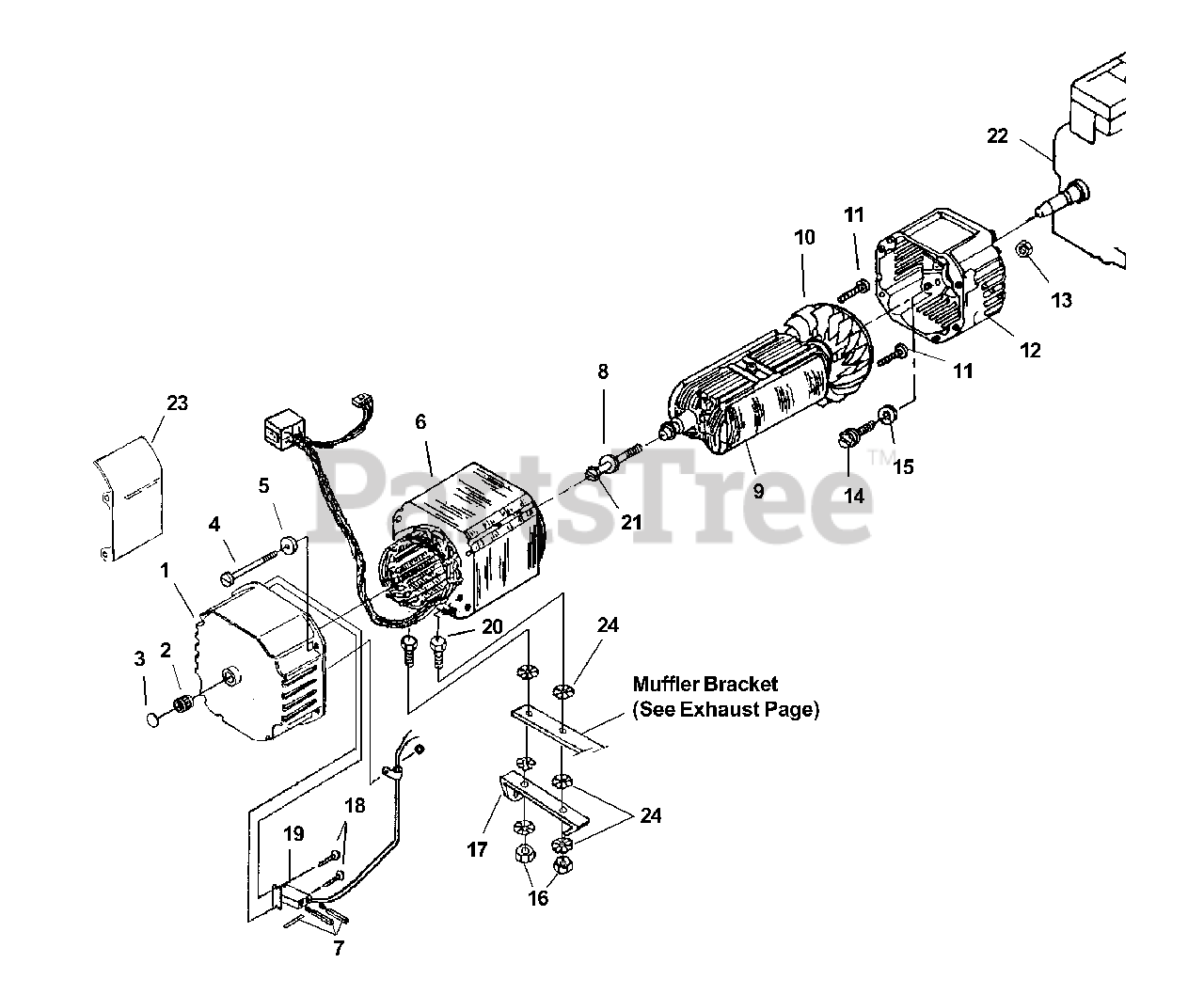

Brush Head - Generator Parts Diagram

  • Title

1

Homelite UP03527

Complete Brush Head
(Superseded to A07068A)

$

$

Not available

2

Homelite UP03450

Bearing-Needle
(Superseded to 03044)

$

$

Not available

3

Homelite UP03437

Plug-Expansion
(Superseded to 02438)

$

$

Not available

4

Homelite UP03430

Bolt-Stator

Note: Torque Specs 60-80 In/Lbs; 6.8-9.0 Nm

$12.99

$

Usually ships in 3-7 days

0

5

Homelite UP03418

Washer-Flat (1/4")

$2.99

$

Usually ships in 3-7 days

0

6

Homelite A06770AS

(Stator & Harness)

Note: Also order Decal Kit P/N UP04905

$

$

Currently unavailable

7

Homelite UP03736

Brush & Retainer Kit

$

$

Not available

8

Homelite UP03407

Washer-Lock (5/16")
(Superseded to 83002)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite UP03749

Rotor

$

$

Not available

10

Homelite UP03737

Fan-Generator

$

$

Not available

11

Homelite UP03403

Screw-Pan Hd. (6-19 X 3/4")
(Superseded to 82526)

Note: Torque Specs 12-16 In/Lbs; 1.4-1.8 Nm

$

$

Not available

12

Homelite UP04853

End Bell

$

$

Currently unavailable

13

Homelite UP03400

Nut-Hex (1/4-20)
(Superseded to 81267)

$

$

Not available

14

Homelite UP03384

Screw-Hex Hd. (3/8-16 x .875)

Note: Torque Specs 240-250 In/Lbs; 27.1-28.2 Nm

$

$

Currently unavailable

15

Homelite UP03412

Washer-Lock

$

$

Currently unavailable

16

Homelite UP03397

Nut-Hex (5/16-18)

$

$

Not available

17

Homelite UP03459

Bracket-Generator Support
(Superseded to 063781)

$

$

Not available

18

Homelite UP03403

Screw-Plastite (6/19 X 3/4")
(Superseded to 82526)

Note: Torque Specs 12-16 In/Lbs; 1.4-1.8 Nm

$

$

Not available

19

Homelite UP03449

Brush Holder

$21.99

$

Usually ships in 3-7 days

0

20

Homelite 80085

Screw- Hex Hd. (5/16-18 X 1")

Note: Torque Specs 150-155 In/Lbs; 16.9-17.5 Nm

$1.49

$

Usually ships in 3-7 days

0

21

Homelite UP03425

Bolt-Rotor
(Superseded to 4885207)

Note: Torque Specs 100-140 In/Lbs; 11.3-15.8 Nm

$

$

Not available

22

Homelite UP04475

Engine (EH36)

$

$

Not available

23

Homelite UP05403

Brush Shield

$

$

Currently unavailable

24

Homelite UP03479

Washer-Lock

$

$

Currently unavailable

Homelite UP04905

Decal Kit

$22.99

$

Usually ships in 3-7 days

0
